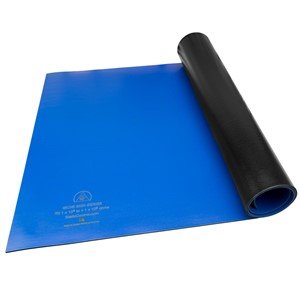

SCS 8246, Table Mat Roll, 3-Layer Vinyl ,8200 Series , Dark Blue, 30 in x 50 ft x 0.140 in

SCS 8246, Vinyl Table Mat Roll, 3-Layer Vinyl ,8200 Series , Dark Blue, 30 in x 50 ft x 0.140 in

8200 Series Dissipative Vinyl Three-Layer Mats and Rolls are soft table
mats with a three-layer construction that meet ANSI/ESD S20.20 tested
per worksurface standard ANSI/ESD STM4.1-2017. The top color layer
is durable static dissipative vinyl, which has sufficiently low resistance to
discharge static-laden conductors, yet will help prevent the shorting of pins
on the backs of printed circuit boards laid on the mat. The middle layer is a
highly-conductive scrim that provides the main discharge path to ground,
and the bottom layer is static-dissipative foam, providing a durable nonskid
cushion. Compatible with Constant Monitors.

• 3-Layer Vinyl Material
  Provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner.
• Dissipative (1 x 10⁶ < 1 x 10⁹ ohms Rtt) Top Color Layer
  Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. Electricals will not drift for the life of the mat.
• Provides a worksurface that is low outgassing and has no sulfur
  Reduces contamination in cleanrooms and other sensitive environments.
• Highly, Conductive Scrim Middle Layer
  Provides main discharge path to ground.
• Dissipative (1 x 10⁶ < 1 x 10⁹ ohms Rtt) Foam Bottom Layer
  Provides durable, nonskid cushion, choice for components susceptible to physical shock.
• Grounding Hardware not included
  Compatible with Constant Monitors
• Maintain and Clean the ESD Worksurface Mat with SCS Charge-Guard™ ESD Surface and Mat Cleaner Wipes
  The wipes do not contain silicone or other substances that will leave an insulative residue or inhibit the performance of an ESD surface.
• Lead-free RoHS 2, REACH and Conflict Minerals compliant


Technical Data Sheet
