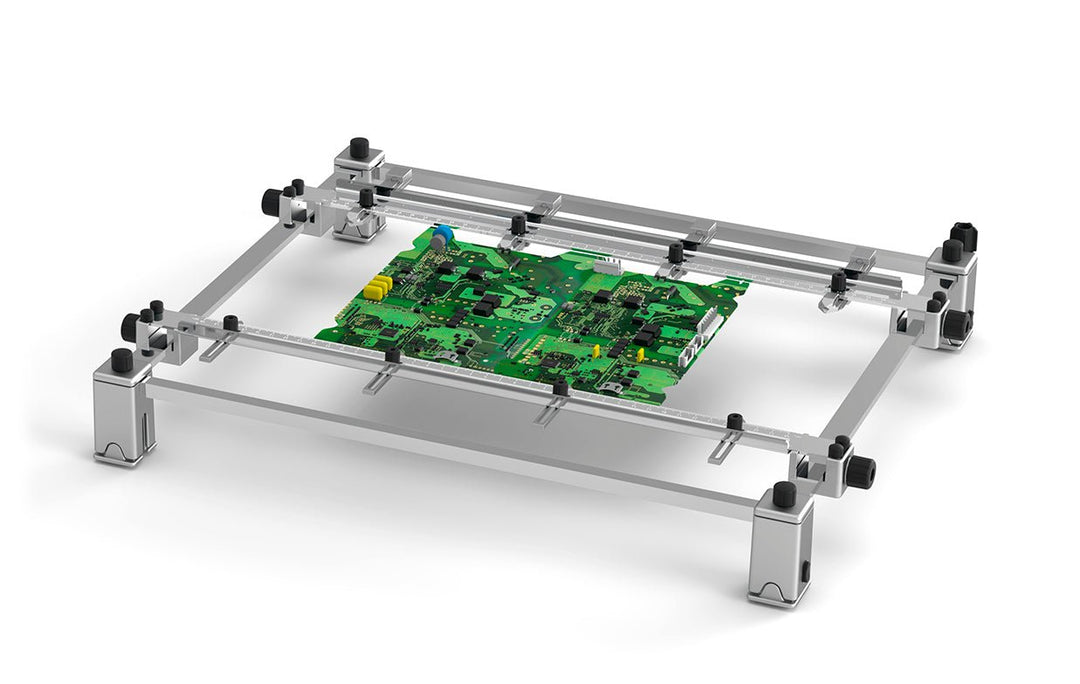

JBC Tools PHB-SA, Large PCB Support
This support is perfectly adapted to any type of medium / large PCB by means of its many adjustable elements.
For maximum size of 360 x 277 mm / 14.2 x 10.9 in.
It allows you to properly position PCBs of the same batch so as to always heat the same area. It is ideal for repetitive soldering jobs which means saving time and optimizing workflow.
PSB incorporates several slots for a precise alignment to PHB Large Preheater.
The user can modify the PCB clearance (28, 38 or 48 mm / 1.1, 1.5 or 1.9 in) according to their working needs.
It is also possible to use the 4 black-rubber caps for reworking large PCBs.
SPECIFICATIONS
ESD safe connector
DIMENSIONS AND WEIGHT
Net weight
2,81 kg (6.19lb)
MAX. DIMENSIONS
Low position
432 x 514 x 78 mm
17 x 20.2 x 3.1 in
High position
432 x 514 x 98 mm
17 x 20.2 x 3.9 in
Max. PCB thickness: 6 mm / 0.236 in
Package
595 x 520 x 180 mm / 5.01kg
