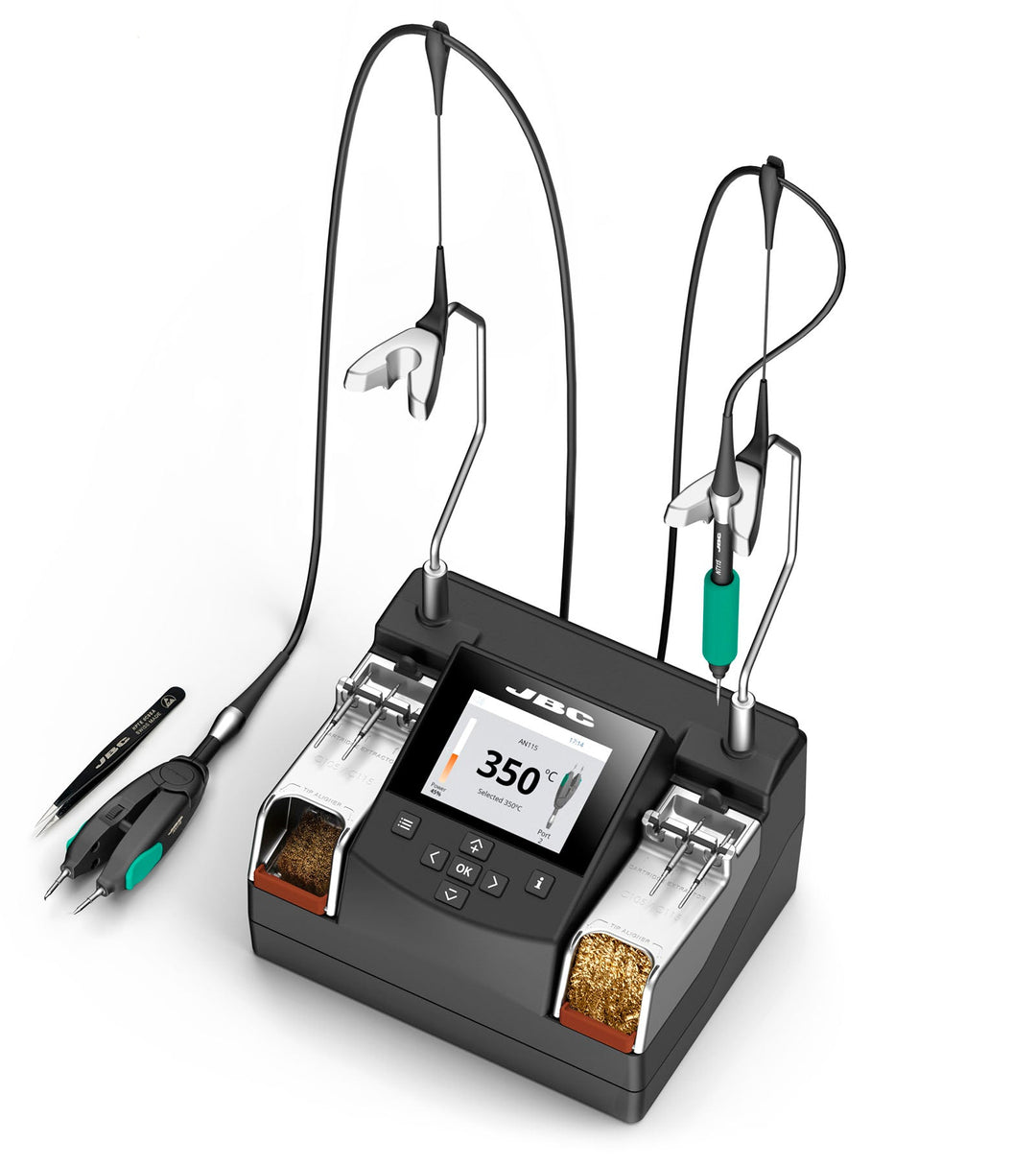

JBC Tools NASE-2D Nano Rework Station
JBC Tools NASE-2 — 2-Tool Nano Rework Station, 230V
The JBC NASE-2 (NASE-2D) is a professional 2-tool nano rework station designed for soldering and reworking the smallest SMD components. Operating at 230V, it delivers all the advantages of JBC’s Most Efficient Soldering System — including Intelligent Heat Management, Sleep & Hibernation modes, and advanced PC connectivity for data logging and remote control. The NASE-2 includes the NT115-A Nano Handle, AN115-A Adjustable Nano Tweezers, HPTE0C9SA High-Precision Tweezers with ESD Epoxy Coating, and a full set of C115 cartridges.
Voltage: 230V (NASE-2D). See also NASE-1D (120V) and NASE-9D (100V).
JBC Tools JASE-2 Technical Datasheet
Key Specifications
| Specification | Detail |
|---|---|
| Model | NASE-2 (NASE-2D, 230V) |
| Peak Power | 14 W per tool |
| Selectable Temperature | 90 – 450 °C / 190 – 840 °F |
| Temperature Accuracy | ±3% |
| ESD Safe | Meets ANSI/ESD S20.20 |
| Equipotential Bonding | Connection to EPA |
| Tip-to-Ground Resistance | < 2 ohms |
| Tip-to-Ground Voltage | < 2 mV RMS |
| USB-A | Firmware update, graphics and profiles |
| USB-B | PC communications |
| FAE / Robot Connector | Remote control or FAE Fume Extractor connection |
| Pedal Connectors | 1 for each tool |
| Control Unit Dimensions | 140 × 170 × 125 mm / 5.51 × 6.69 × 4.92 in |
| Control Unit Weight | 2.53 kg / 5.58 lb |
| Package Dimensions | 240 × 295 × 305 mm / 9.45 × 11.61 × 12.01 in |
| Package Weight | 3.98 kg / 8.77 lb |
| Voltage | 230V |
| Manufacturer | JBC Tools |
Product Composition
| Qty | Component |
|---|---|
| 1 | NAE 2-Tool Nano Control Unit |
| 1 | AN115-A Adjustable Nano Tweezers (cartridge not included) |
| 1 | NT115-A Nano Handle (cartridge not included) |
| 1 | C115101 Conical Ø 0.1 |
| 1 | C115103 Conical Ø 0.3 S1 |
| 2 | C115105 Conical Bent Ø 0.3 |
| 1 | C115107 Conical Ø 0.8 |
| 1 | C115112 Knife 2.5 × 0.3 |
| 2 | C115113 Chisel 1 × 0.3 |
| 1 | HPTE0C9SA High-Precision Tweezers with ESD Epoxy Coating |
Key Features
- JBC Intelligent Heat Management — consistent solder joint quality with Sleep & Hibernation modes that extend tip life up to five times
- Complete Tip Cleaning System — integrated wiper and brush for efficient maintenance
- Cartridge Holder & Quick Cartridge Exchanger — faster, easier cartridge changes
- RJ12 Connector — direct connection to JBC Fume Extractor
- Advanced Connectivity — USB-A/B for firmware updates, data download, remote control, and traceability
- HPTE0C9SA High-Precision Tweezers — ESD Epoxy Coating for firm hold on small components
- ANSI/ESD S20.20 Safe — < 2 ohms tip-to-ground resistance, < 2 mV RMS tip-to-ground voltage
Voltage Variants
| Model | Voltage |
|---|---|
| NASE-9D | 100V |
| NASE-1D | 120V |
| NASE-2D | 230V |
Frequently Asked Questions
What is the JBC NASE-2 used for?
The NASE-2 is a professional 2-tool nano rework station for soldering and reworking extremely fine SMD components. It is ideal for precision electronics repair, prototype assembly, and production rework requiring both a nano handle and adjustable nano tweezers simultaneously.
What voltage does the NASE-2 operate at?
The NASE-2D operates at 230V. For North American 120V applications, see the NASE-1D. For 100V applications, see the NASE-9D. Contact MTE Solutions to confirm availability and lead time for your voltage requirement.
What cartridge range is compatible with the NASE-2?
The NASE-2 is compatible with the JBC C115 Cartridge Range. The station ships with a selection of C115 cartridges including conical, knife, and chisel profiles. Additional C115 cartridges are available separately.
Is the JBC NASE-2 ESD safe?
Yes — the NASE-2 meets ANSI/ESD S20.20 with tip-to-ground resistance < 2 ohms and tip-to-ground voltage < 2 mV RMS. It supports equipotential bonding with connection to EPA ground.
What is JBC Intelligent Heat Management?
JBC Intelligent Heat Management is a proprietary system that delivers power on demand for consistent solder joint quality. Combined with Sleep and Hibernation modes that activate when the tool is idle, it extends cartridge tip life up to five times compared to conventional soldering systems.
