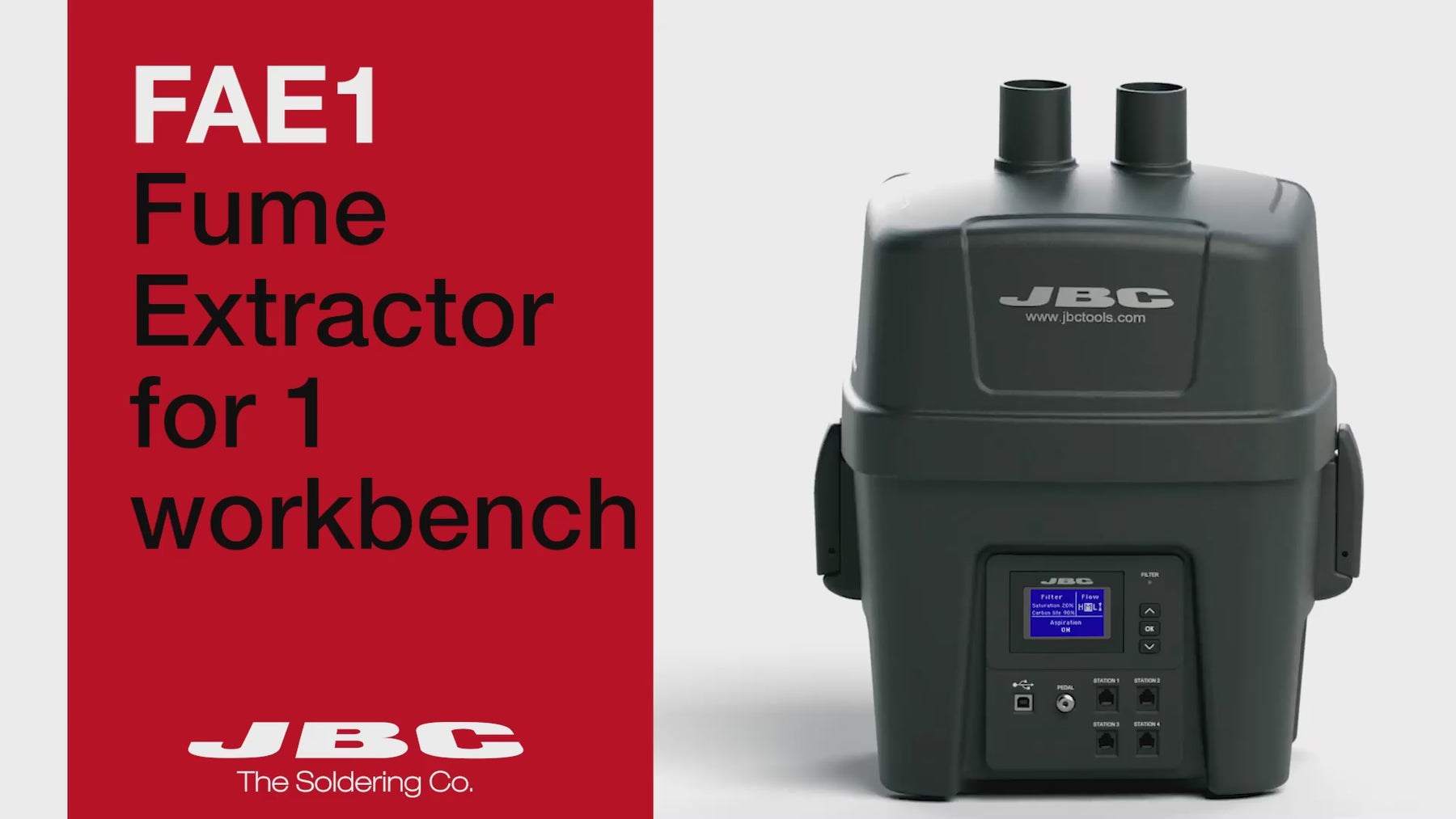

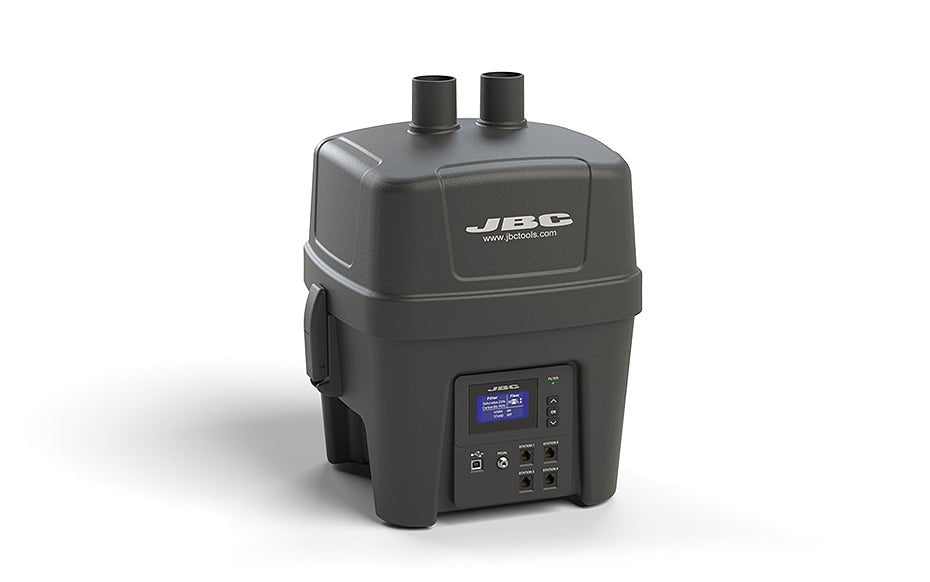

JBC Tools FAE1-2B, FAE1 230V Fume Extractor for 1 Workbench

JBC Tools SKU: FAE1-2B
JBC Tools FAE1 - 2B, FAE1 230V Fume Extractor for 1 Workbench MTESolutions
JBC Tools FAE1-2B, FAE1 230V Fume Extractor for 1 Workbench

JBC Tools FAE1-2B, FAE1 230V Fume Extractor for 1 Workbench

JBC Tools SKU: FAE1-2B
Regular price $1,618.75
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

JBC Tools FAE1-2B, FAE1 230V Fume Extractor for 1 Workbench

FAE is the most effective solution to avoid exposure to solder fumes. The extractor activates and operates only when soldering.

The extractor starts up only when soldering. This function not only saves power, but also extends the life span of the equipment, including the filter.

FAE1 stand has an integrated vacuum system that detects when the tool is at rest and automatically absorbs excess fumes.

FAE1 provides direct connection of up to 4 soldering or rework stations with a total of 4 tools.

It can be controlled via JBC Stations, a pedal, a robotic system or a PC.

It has 3 predefined levels of aspiration: low, medium and high. It also features a custom mode where the airflow can be set within the minimum (10%) and maximum rates (100%).

1 FAE1 Fume Extractor for 1 workbench
SELECTABLE PARAMETERS

Aspiration flow rate: Low / Medium / High / Custom
Operation modes: Automatic (JBC Stations), Continuous, Pedal
OTHERS

Blower type: Brushless
Max. flow rate: 180m3/h (106 CFM)
Max. vacuum: 3.2 KPa (0.46 psi)
Work areas: 1
Noise Level: 55 dB @ 1m
FILTERS

Pre-filter: Medium dust filter M5 (EN 779)
2 Stages Main Filter: 1st stage H13 filter for solid particles (EN 1822), 2nd stage Carbon filter for gases depuration
CONNECTIVITY

USB-B: Firmware update
RJ12 Connector: Direct connection for 4 Stations
Pedal: Optional tool control
ESD/EOS
ESD safe

POWER SUPPLY
Peak power: 95 W (100 V), 110 W (120 V), 110 W (230V)
DIMENSIONS AND WEIGHT
Unit
380 x 340 x 475 mm / 10.50 kg.

14.96 x 13.39 x 18.70 in / 23.15 lb.
Package
425 x 425 x 545 mm / 12.76 kg.

16.73 x 16.73 x 21.46 in / 28.12 lb.
