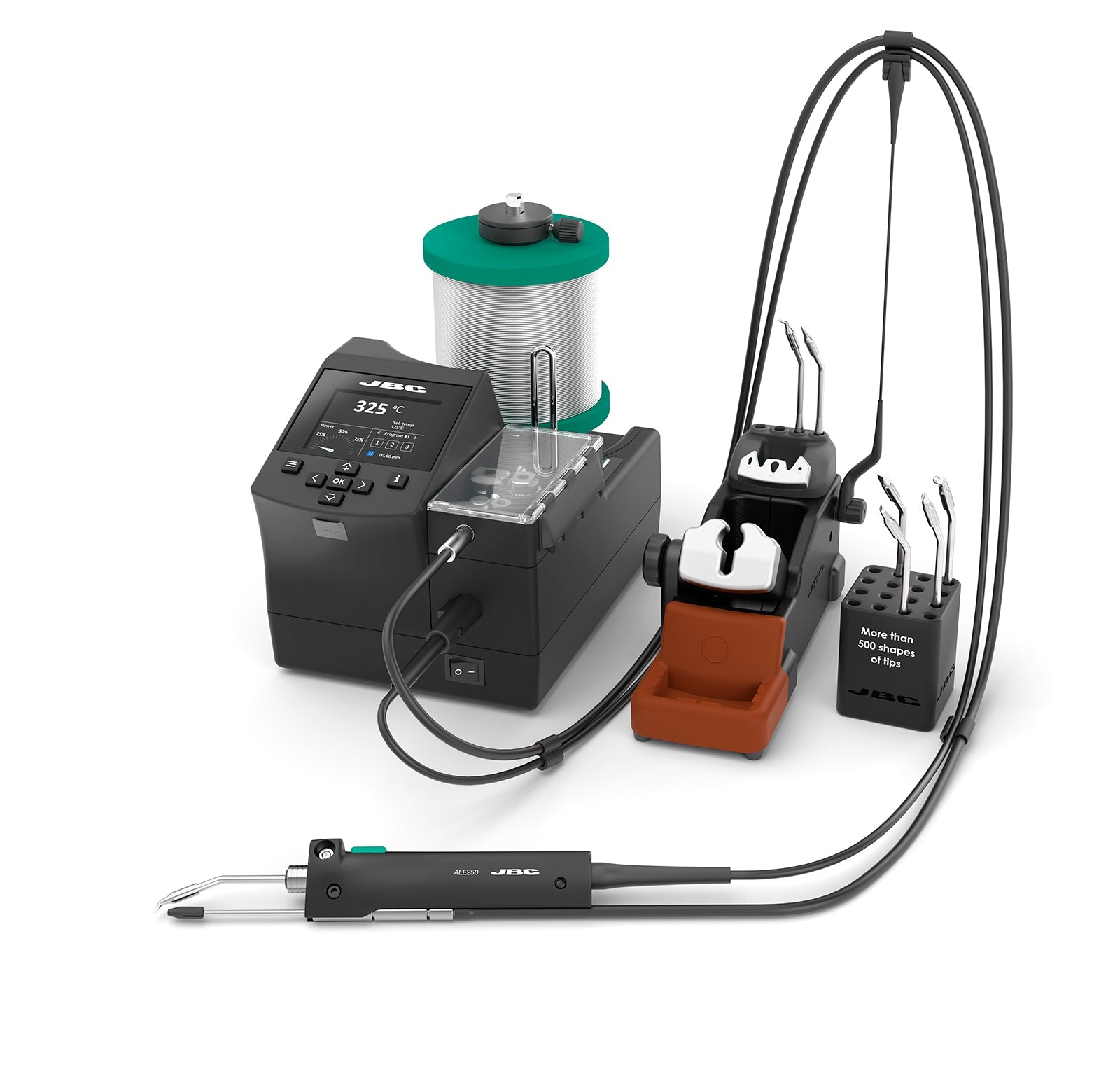

JBC Tools ALE-110VA, 120V ALE Auto-Feed Soldering Station - Discontinued
DISCONTINUED - Replaced with ALE-110VB
It is the ideal solution for soldering processes requiring a free hand. It works with the comfortable ALE250 Auto-Feed Soldering Iron and C250 Cartridge Range.
You can easily configure parameters such as dispensed wire speed and length thanks to its newly upgraded 7-key keypad. You can also monitor the solder consumption thanks to integrated counters.
3 working modes:
In Continuous Mode solder wire is fed while the button keeps pressed. Discontinuous Mode allows the configuration of the speed and the solder wire amount that will be fed on each click. Program Mode enables the operator to configure 3 consecutive feeding steps, obtaining a more dynamic and efficient soldering. Up to 5 programs can be set.
Solder Wire Perforation:
The solder feeder features a small blade that perforates the solder wire down to the flux core while feeding it. This perforation process allows better flux flow and outgassing, avoiding solder and flux splashing when soldering.
The included GALE10V Guide Kit makes this station compatible with Ø 1.0 mm / 0.04 in single-core solder wire. If you require a different guide-kit size, please contact us.
Furthermore, this station allows a solder reel up to 2 kg / 4.40 lb (DIN 100).
PRODUCT COMPOSITION
