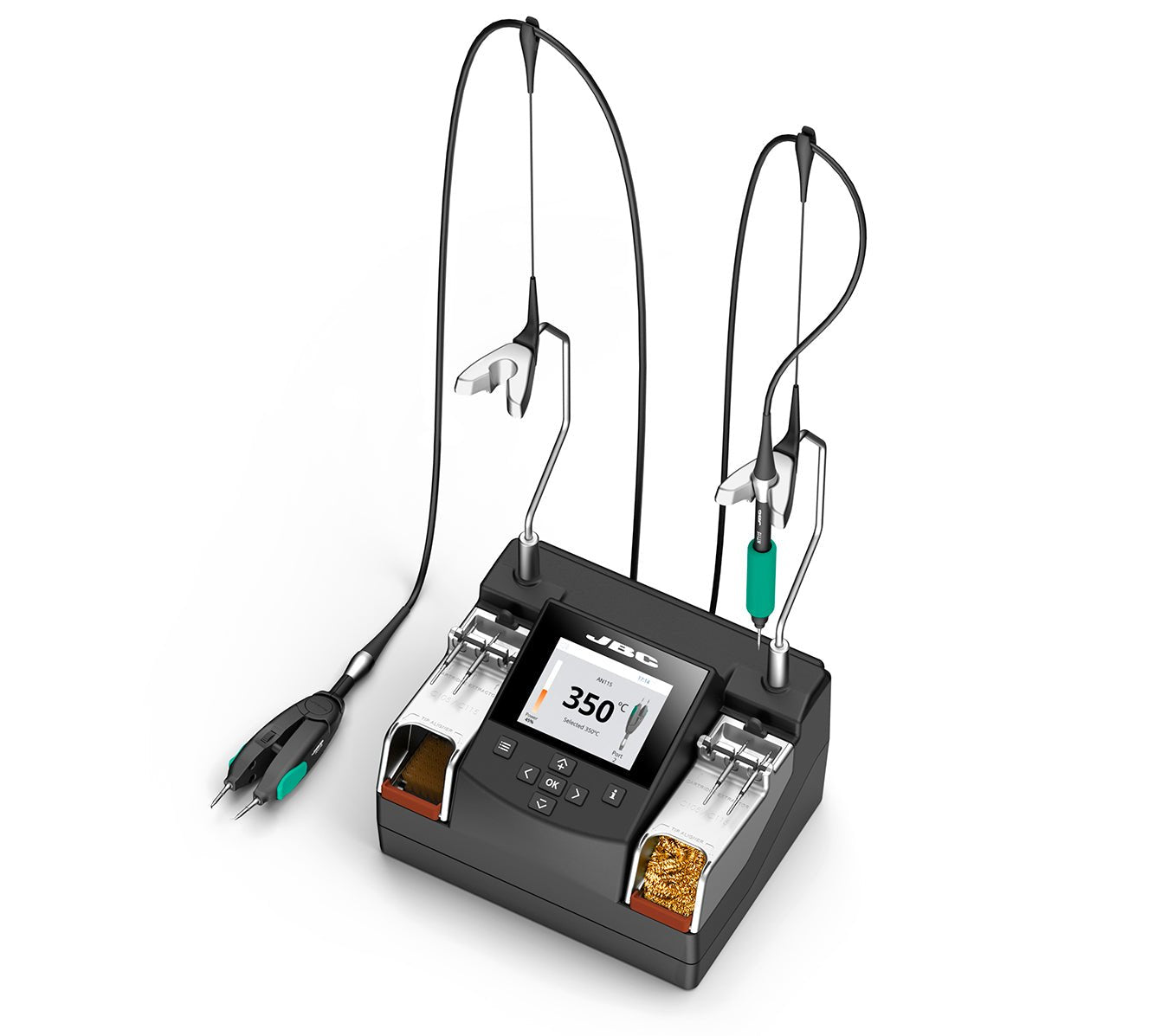

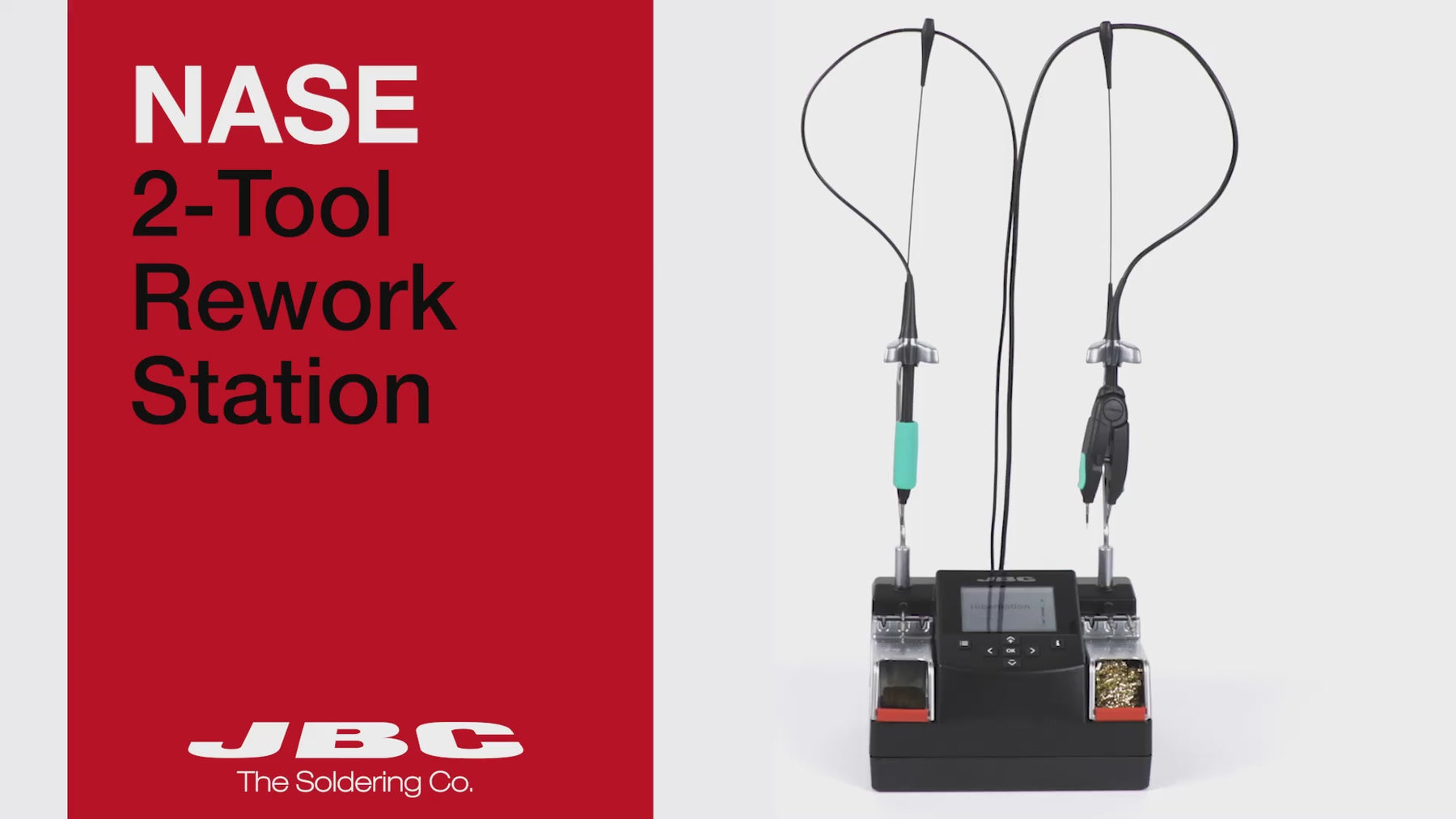

JBC Tools NASE-1D Nano Rework Station - 120V Dual Tool SMD Soldering System
JBC Tools NASE-1D Nano Rework Station — 120V Dual Tool SMD Soldering System
The JBC Tools NASE-1D is a professional dual-tool nano rework station engineered for the most demanding SMD soldering, BGA rework, fine-pitch component work, and PCB repair applications. JBC’s nano cartridge technology integrates the heating element directly into the tip — delivering sub-second thermal recovery, pinpoint temperature stability, and dramatically reduced thermal stress on sensitive components. With two simultaneous tool ports and JBC’s intelligent sleep and hibernation power management, the NASE-1D is the benchmark station for high-throughput production rework and precision bench repair.
120V | Dual Tool System | Sold Individually
Specifications
| Model | NASE-1D |
|---|---|
| Manufacturer | JBC Tools |
| Voltage | 120V (North America) |
| Type | Nano Rework Station |
| Tool Configuration | Dual Tool System (2 simultaneous ports) |
| Tip Technology | JBC Nano Cartridge (integrated heating element) |
| Power Management | Sleep and Hibernation modes |
| Primary Applications | SMD soldering, BGA rework, QFP/QFN, fine-pitch, PCB repair |
| SKU | NASE-1D |
Key Features
- JBC Nano Cartridge technology — heating element integrated into tip for instant thermal recovery; dramatically reduces thermal mass vs. standard cartridge systems
- Dual tool ports — two nano tools connected simultaneously for sequential or alternating operations without handpiece swapping
- Sleep & Hibernation modes — automatic temperature reduction when idle; restores instantly on pickup to extend tip life and reduce oxidation
- Precise temperature control — minimizes thermal stress on fine-pitch and heat-sensitive components
- Full nano tip cartridge compatibility — works with JBC’s complete nano tip range including conical, chisel, bevel, and knife profiles
- 120V configuration — ready for North American production and bench environments
Industries & Applications
- Electronics Manufacturing (EMS / OEM / CEM) — production-line SMD rework, IPC-A-610 touch-up, and component replacement on populated PCBs
- PCB Assembly & Repair Shops — BGA reballing and rework, QFP/QFN removal and placement, fine-pitch IC soldering, and pad repair
- Medical Device Manufacturing — precision rework on high-density assemblies where thermal control is critical for regulatory compliance
- Aerospace & Defense Electronics — IPC-A-610 Class 3 rework environments requiring traceable, controlled soldering processes
- R&D / Prototyping Labs — component swapping, design iteration, and prototype assembly requiring versatile dual-tool access
- Contract Electronics Repair — high-mix low-volume rework where fast tip changeover and dual-tool flexibility reduce cycle time
NASE-1D vs. Standard JBC Rework Stations
| Feature | NASE-1D (Nano) | Standard JBC Station (e.g. CD-2SE) |
|---|---|---|
| Tip technology | Nano cartridge (integrated heater) | Standard cartridge |
| Thermal mass | Ultra-low — fastest recovery | Higher — slower recovery |
| Ideal application | Fine-pitch SMD, BGA, micro components | General through-hole & SMD |
| Tool ports | Dual (2 simultaneous) | Single |
| Best for | High-density PCB rework, production lines | General bench soldering |
Frequently Asked Questions
What is JBC nano cartridge technology and why does it matter for SMD rework?
JBC nano cartridges integrate the heating element directly into the soldering tip rather than using a separate heater and tip assembly. This dramatically reduces thermal mass, allowing the tip to reach operating temperature in seconds and recover heat almost instantly after contact with a solder joint. For SMD rework — where consistent tip temperature is critical to avoid cold joints, component damage, or pad lifting — fast thermal recovery means more consistent results across high-volume or fine-pitch work.
What types of rework is the NASE-1D suited for?
The NASE-1D is designed for advanced SMD rework including BGA reballing and rework, QFP and QFN component placement and removal, fine-pitch IC soldering, PCB trace repair, and electronics prototyping. The dual-tool system is particularly useful for operations requiring two different tip styles without switching handpieces between steps.
What do the sleep and hibernation modes do?
Sleep mode automatically reduces tip temperature when the tool is set down in the stand, preventing oxidation and extending tip life during pauses. Hibernation mode drops temperature further for longer idle periods. Both modes restore full operating temperature within seconds when the tool is picked up.
What nano tip cartridges are compatible with the NASE-1D?
The NASE-1D is compatible with JBC’s full range of nano tip cartridges, available in multiple geometries including conical, chisel, bevel, and knife profiles. Contact MTE Solutions to identify the right tip selection for your specific application.
Is the NASE-1D available in 240V for international use?
The NASE-1D listed here is the 120V North American version. JBC Tools does offer 240V configurations for international markets. Contact MTE Solutions at 651.600.3838 or sales@mtesolutionsinc.com to discuss voltage requirements.
What is the lead time and warranty for the JBC NASE-1D?
Lead time and warranty terms may vary. Contact MTE Solutions at 651.600.3838 or sales@mtesolutionsinc.com to confirm current stock availability and JBC warranty coverage before ordering.
