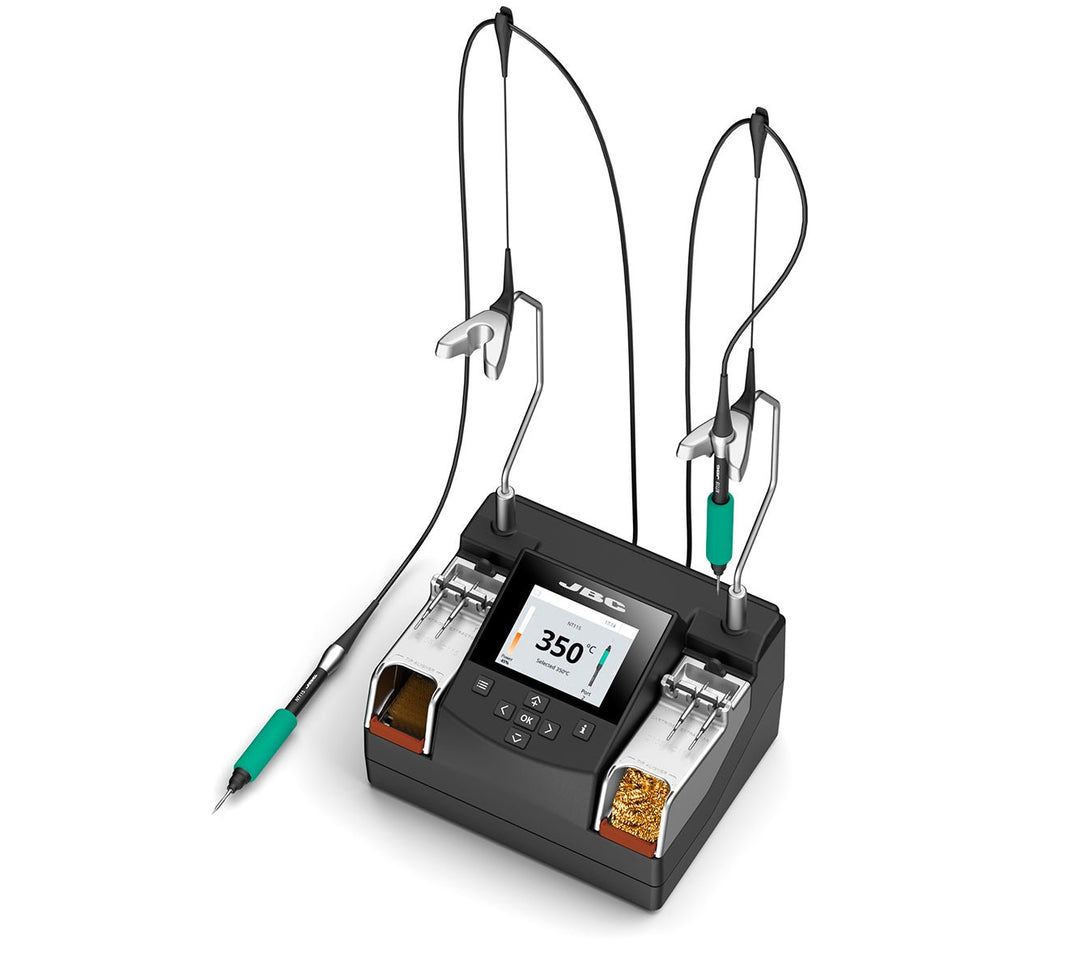

JBC Tools NANE - 1C, 120V 2 Tools Nano Soldering Station MTESolutions

JBC Tools NANE-1C, 120V 2 Tools Nano Soldering Station

JBC Tools SKU: NANE-1C
Price
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

JBC Tools NANE-1C, 2 Tools Nano Soldering Station

Control under microscope.

Designed for highest precision applications offering maximum control working under microscope.

It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:

    • Provides the best soldering quality thanks to JBC Intelligent Heat Management and, additionally, Sleep & Hibernation Modes that extend tip life till 5 times longer.

    • Complete Tip Cleaning System with an integrated wiper and brush to remove excess solder from the tip.

    • Cartridge Holder and JBC Exclusive Cartridge Exchanger, which increases efficiency.

    • Possible connection to the JBC Fume Extractor (connector RJ12).

PRODUCT COMPOSITION
SPECIFICATIONS
Peak power: 14W per tool
Temperature range: 90 - 450 °C / 190 - 840 ºF
Idle temp. stability (still air): ±1.5 ºC / ±3 ºF (meets and exceed IPC J-STD-001F)
Tip to ground resistance: < 2 ohms
Tip to ground voltage: < 2 mV RMS
Operating temp. range: 10 - 50 ºC / 50 - 122 ºF
ESD safe

CONNECTIVITY
Pedal (1 per tool): Connect a pedal (ref.P405) to control the tools. It allows using Nano tweezers for soldering
USB-B (rear): Software PC / Traceability
USB-A (front): Firmware update Soldering Graphics management
Robot: RS-232 remote control or Smart Fume Extractor connection.
Equipotential bonding: Optional connection to EPA

DIMENSIONS AND WEIGHT
Nano Stations
140 x 170 x 125 mm / 2.45 kg.

5.51 x 6.69 x 4.92 in / 5.40 lb.
Package
295 x 240 x 305 mm / 2.94 kg.

11.61 x 9.45 x 12.01 in / 6.49 lb.
NAN 2-Tool Nano Soldering Station
