The JBC C210023 is an ultra-fine chisel 0.4 x 0.2mm soldering cartridge from the JBC C210 series, designed for precision work on 0402 and smaller SMD components, fine-pitch pads, and tight-clearance joints where larger chisel tips would bridge adjacent contacts. The narrow flat face provides controlled heat delivery to very small pads while maintaining the chisel geometry’s superior pad contact vs. a conical tip. Works with JBC T210 handpieces. Features JBC’s instant heat-up and Long Life construction for 5× longer tip life when used with JBC’s Sleep & Hibernation system.

Key Specifications

Key Features

• Ultra-fine chisel 0.4 x 0.2mm — smallest chisel geometry in the C210 lineup; suited for 0402/0201 SMD pads, ultra-fine-pitch QFP leads, and tight-clearance joints where larger chisels would bridge
• Chisel face vs. conical for fine work — the flat chisel face maintains better pad contact and heat transfer than a conical tip at the same scale, improving joint quality on very small pads
• C210 precision series — pairs with the T210 handpiece for fine and detailed soldering; slim, lightweight tool for maximum control on miniaturized assemblies
• JBC Long Life tip construction — 5× longer tip life than competing brands when used with JBC’s Sleep & Hibernation system

Frequently Asked Questions

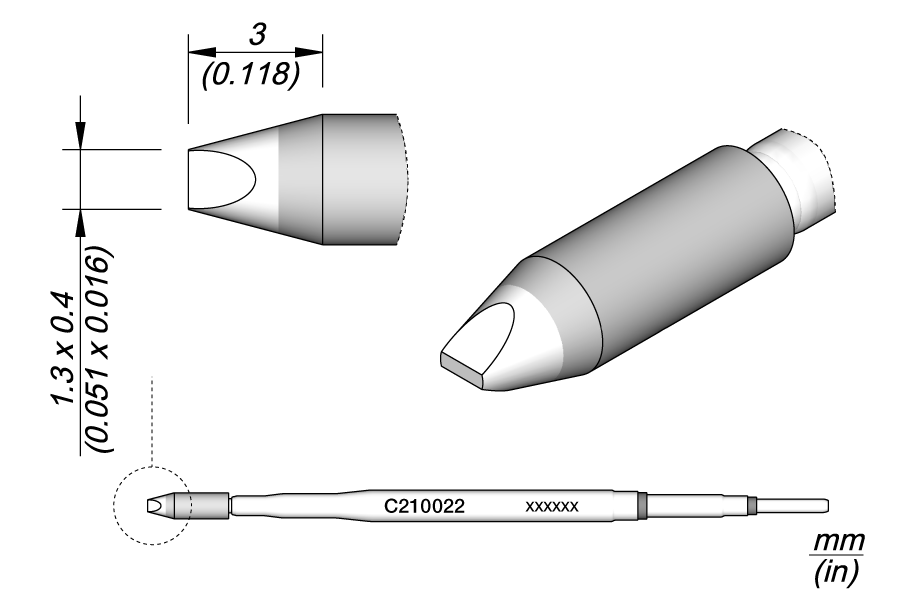

How does the C210023 (0.4 x 0.2 chisel) compare to the C210008 (1.3 x 0.6 chisel) and C210022 (1.3 x 0.4 chisel)?
The C210023 is the ultra-fine specialist in the C210 chisel family. The C210008 and C210022 are general-purpose chisels for 0603 and larger pads; the C210023 targets 0402, 0201, and fine-pitch work where those larger tips would bridge adjacent pads. If you work primarily on miniaturized assemblies and fine-pitch components, the C210023 is the right choice. For general mixed SMD work, pair it with a C210008 for larger components.

What JBC stations are compatible with the C210023?
The C210023 requires a T210 handpiece and is compatible with JBC stations supporting the T210 handle family, including the CD-1BQF, DDSE, DSSE, DDE, and other T210-compatible stations. Verify your station supports T210 before ordering.

Is a chisel better than a conical for 0402 work?
For pad soldering, yes — the flat chisel face provides more surface contact with the pad, improving heat transfer and solder wetting. A conical tip contacts the pad at a single point, requiring more dwell time to transfer enough heat. The C210023’s 0.4 x 0.2mm chisel gives you controlled, efficient heat delivery on very small pads without the bridging risk of a larger chisel.

How do I maximize tip life on an ultra-fine tip like the C210023?
Keep the tip tinned at all times when hot, use JBC’s Sleep & Hibernation modes to minimize idle oxidation, clean with a soft brass wire cleaner rather than a wet sponge (thermal shock damages fine tips), and avoid working at temperatures higher than necessary. Fine tips have less thermal mass and are more vulnerable to oxidation — JBC’s active tip technology and hibernation modes are especially valuable for protecting them.

What is the difference between the C210 and C245 series for fine-pitch work?
Both series offer fine-pitch cartridges, but the T210 handpiece is slimmer and lighter than the T245, which improves control and reduces fatigue during detailed fine-pitch work. If precision and ergonomics for miniaturized assemblies are the priority, the T210/C210 combination is preferred. The T245/C245 system offers more power for demanding applications.
