JBC Tools C210013 | Conical Ø 0.5 Soldering Cartridge | C210 Series | T210 Handle
JBC Tools C210013 | Conical Ø 0.5 Soldering Cartridge | C210 Series | T210 Handle
The JBC C210013 is a conical 0.5mm soldering cartridge from the JBC C210 series, designed for fine SMD component soldering, precision rework, and point-contact applications requiring a small tip diameter. The conical geometry delivers heat to a single point, making it well-suited for soldering individual SMD leads, tacking components, and accessing joints in tightly packed board areas. Works with JBC T210 handpieces. Features JBC’s instant heat-up and Long Life tip construction for 5× longer tip life when used with JBC’s Sleep & Hibernation system.

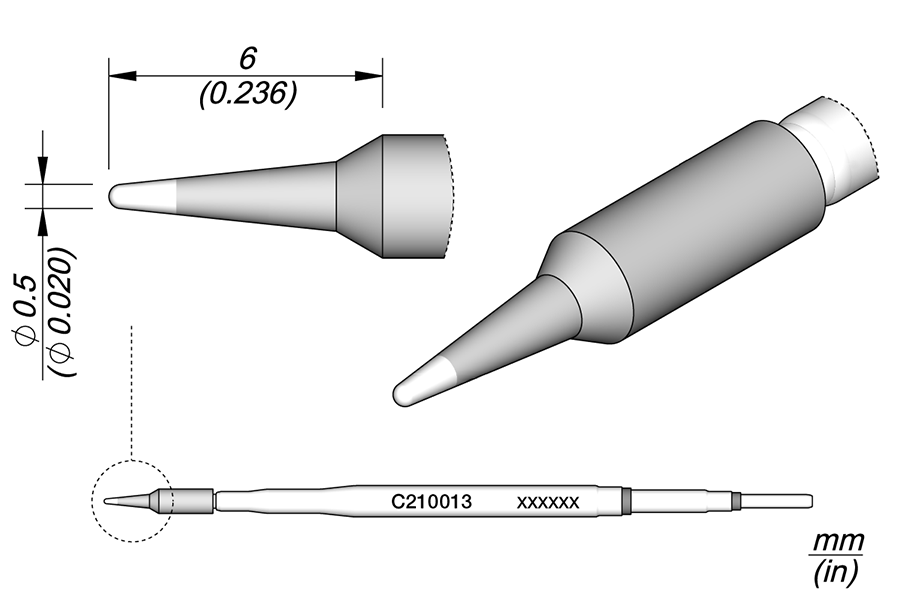

Key Specifications
| Specification | Value |
|---|---|
| Part Number / SKU | C210013 |
| Series | C210 |
| Tip Shape | Conical |
| Tip Diameter | Ø 0.5mm |
| Compatible Handle | T210 (Precision Handle) |
| Brand | JBC Tools |
Key Features
- Conical 0.5mm — point-contact tip for precise heat delivery to individual SMD leads, fine-pitch pads, and tight-clearance joints
- General-purpose fine conical — versatile tip for component tacking, lead-by-lead SMD soldering, rework, and inspection touchups
- C210 precision series — pairs with the T210 handpiece for fine and medium-precision work; slim, lightweight tool for improved control
- JBC Long Life tip construction — 5× longer tip life than competing brands when used with JBC’s Sleep & Hibernation system
Frequently Asked Questions
How does the C210013 (0.5mm conical) compare to the C210009 (0.2mm conical) and C210001 (0.3mm conical S2)?
All three are conical tips but differ in diameter. The C210009 (0.2mm) is the finest for ultra-precision micro-soldering. The C210001 (0.3mm S2) adds a slight bend for access in confined areas. The C210013 (0.5mm) is the most versatile general-purpose fine conical — large enough to transfer heat efficiently to 0603 and 0402 pads while still being precise enough for fine-pitch work. If you do a mix of SMD sizes, the C210013 is often the best single-tip choice for fine conical work.
What JBC stations are compatible with the C210013?
The C210013 requires a T210 handpiece and is compatible with T210-compatible JBC stations including the CD-1BQF, DDSE, DSSE, DDE, and others. Verify your station supports T210 before ordering.
When should I use a conical vs. a chisel tip for SMD work?
Conical tips are better for point-contact work: tacking components, lead-by-lead soldering of QFP/SOP leads, rework of individual joints, and accessing recessed or tight joints. Chisel tips provide more pad contact area and better heat transfer for reflowing pads efficiently. For a mix of work, many technicians keep both a conical and a chisel cartridge at their station and swap based on task.
How does JBC’s Sleep & Hibernation system extend tip life on the C210013?
JBC stations automatically reduce tip temperature during idle periods, dramatically slowing oxidation and flux carbonization. Combined with JBC’s Long Life construction, tip life extends up to 5× longer than competing systems. Always keep the tip tinned when hot to further slow oxidation.
Is the C210013 suitable for lead-free soldering?
Yes — JBC C210 cartridges are compatible with both leaded (SnPb) and lead-free (SAC305 and other alloys) soldering. Lead-free requires higher working temperatures, making JBC’s Long Life tip construction and Sleep & Hibernation system especially valuable for protecting fine tips from accelerated oxidation.
