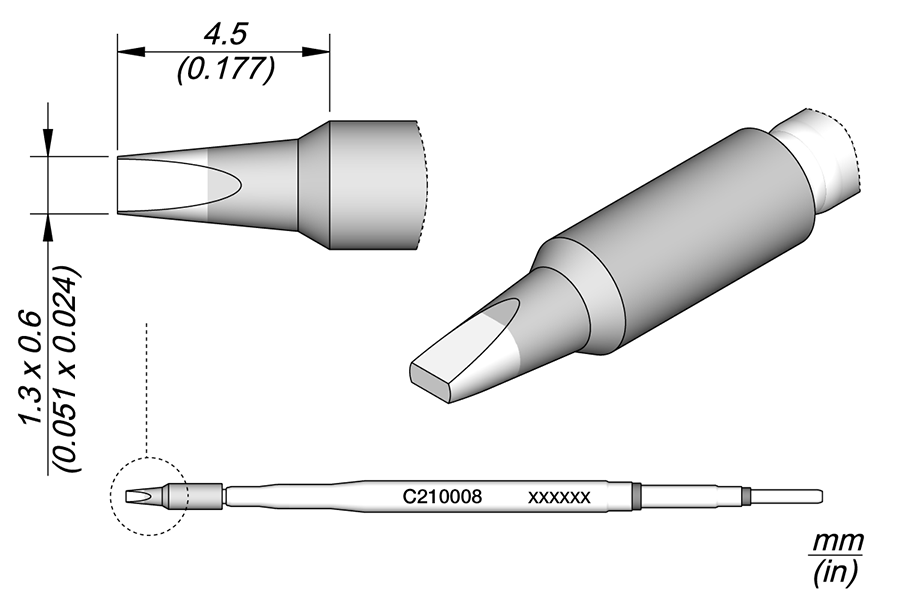

The JBC C210008 is a chisel 1.3 x 0.6mm soldering cartridge from the JBC C210 series, designed for precision SMD and general hand soldering with the JBC T210 handpiece. The chisel geometry provides a flat working face for good pad contact and efficient heat transfer, making it one of the most versatile tip shapes for SMD component soldering, pad tinning, and lead attachment. The 1.3mm width suits standard 0603 and 0805 SMD pads and most general through-hole work. Features JBC’s instant heat-up and Long Life tip construction for 5× longer tip life than competing brands when used with JBC’s Sleep & Hibernation system.
Key Specifications
| Specification | Value |
|---|---|
| Part Number / SKU | C210008 |
| Series | C210 |
| Tip Shape | Chisel |
| Tip Dimensions | 1.3 x 0.6mm |
| Compatible Handle | T210 (Precision Handle) |
| Brand | JBC Tools |
Key Features
- Chisel 1.3 x 0.6mm — flat chisel face provides good pad contact and heat transfer; 1.3mm width suits 0603/0805 SMD pads, connector leads, and general through-hole work
- C210 precision series — the C210 cartridge family pairs with the T210 precision handpiece for fine and medium-precision soldering; slimmer and lighter than T245-based systems for detailed work
- JBC Long Life tip construction — 5× longer tip life than competing brands when used with JBC’s Sleep & Hibernation system; instant heat-up and excellent heat transfer
- Versatile general-purpose chisel — one of the most widely used tip geometries for hand soldering; suits drag soldering, pad tinning, component lead attachment, and light rework
Frequently Asked Questions
What is the difference between the C210 and C245 cartridge series?
The C210 series pairs with the T210 precision handpiece, which is slimmer and lighter than the T245 handpiece. The T210/C210 combination is preferred for precision and fine-detail work where a lighter tool improves control and reduces hand fatigue. The T245/C245 combination provides more power and is better suited for high-thermal-demand applications like ground plane soldering. For most SMD and general hand soldering, either system works well; the choice often comes down to preference for tool feel and your existing station ecosystem.
What JBC stations are compatible with the C210008?
The C210008 requires a T210 handpiece and is compatible with JBC stations that support the T210 handle family, including the CD-1BQF, DDSE, DSSE, DDE, and other T210-compatible stations. Verify your station supports T210 handpieces before ordering.
Is the 1.3 x 0.6mm chisel suitable for 0402 SMD work?
The 1.3mm chisel width is better suited for 0603 and larger SMD pads. For 0402 work, a finer tip such as the C210009 (conical 0.2mm) or C210013 (conical 0.5mm) is recommended. The C210008 is an excellent general-purpose chisel for 0603, 0805, and larger components, as well as connector leads and through-hole work.
How does JBC’s Sleep & Hibernation system extend tip life?
JBC stations automatically reduce tip temperature when the iron is idle (Sleep) and drop further into Hibernation after extended idle periods. Lower idle temperatures dramatically reduce tip oxidation and flux carbonization. Combined with JBC’s Long Life tip construction, this results in tip life up to 5× longer than competing systems.
How do I choose between the C210008 (1.3 x 0.6), C210022 (1.3 x 0.4), and C210023 (0.4 x 0.2) chisels?
All three are chisels but differ in working face size. The C210008 (1.3 x 0.6mm) is the most general-purpose, with the most thermal mass and pad contact area — ideal for 0603 and larger. The C210022 (1.3 x 0.4mm) is slightly thinner for tighter pad pitches. The C210023 (0.4 x 0.2mm) is an ultra-fine chisel for very small pads and tight-pitch work where the larger chisels would bridge adjacent pads.
