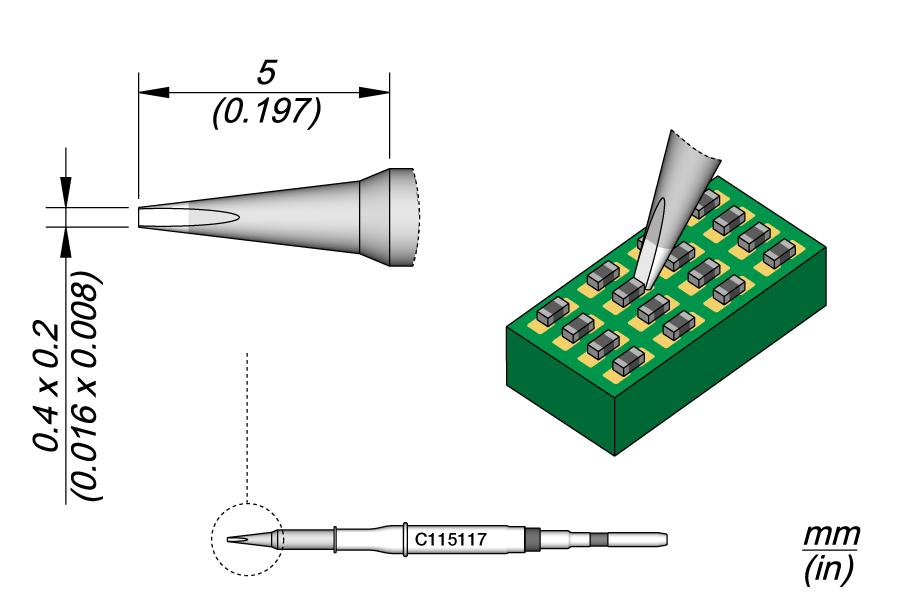

The JBC C115117 is an ultra-fine chisel 0.4 x 0.2mm soldering cartridge from the JBC C115 Nano series, designed for 0402, 0201, and fine-pitch SMD soldering requiring maximum precision and minimal tip footprint. The flat chisel face delivers better pad contact and heat transfer than a conical tip at the same scale, while the 0.4 x 0.2mm dimensions prevent bridging on the tightest SMD pad pitches. Works with JBC NT115, NP115, and AN115 nano handpieces — JBC’s smallest, lightest soldering system for ultra-precision micro-assembly. Features JBC’s instant heat-up and Long Life construction for 5× longer tip life with Sleep & Hibernation.

Key Specifications

Key Features

• Ultra-fine chisel 0.4 x 0.2mm — flat chisel face for better pad contact than a conical at the same scale; prevents bridging on tight-pitch 0402/0201 SMD pads
• C115 Nano series — JBC’s smallest handpiece system for maximum precision and tip visibility on miniaturized assemblies and ultra-fine-pitch work
• Compatible with NT115, NP115, AN115 handles — fits all JBC nano handpiece variants in the 115 family
• JBC Long Life tip construction — 5× longer tip life when used with JBC’s Sleep & Hibernation system; instant heat-up technology

Frequently Asked Questions

How does the C115117 nano chisel compare to the C210023 chisel (also 0.4 x 0.2mm)?
Both are 0.4 x 0.2mm chisel cartridges with identical tip geometry, but they fit different handpiece systems. The C115117 fits the C115 Nano series (NT115/NP115/AN115) — JBC’s smallest, lightest handpiece. The C210023 fits the C210 series (T210). The tip geometry and performance are equivalent; the choice depends on which handpiece system your station uses. The C115 Nano system gives slightly more ergonomic control for ultra-fine work due to the lighter, slimmer handpiece.

What JBC handles and stations are compatible with the C115117?
The C115117 is compatible with JBC NT115, NP115, and AN115 nano handpieces and JBC stations that support 115-series handles. Verify your station supports 115-series handpieces before ordering.

Why choose a chisel over a conical for 0402 SMD work?
The flat chisel face provides more pad contact area than a conical tip of the same width, improving heat transfer and solder wetting on small pads. This reduces dwell time and thermal stress on adjacent components. For pad-to-pad soldering on 0402 and 0201 components, a fine chisel like the C115117 is typically more efficient than a same-width conical.

How do I maximize tip life on an ultra-fine nano tip like the C115117?
Always keep the tip tinned when hot, use JBC’s Sleep & Hibernation modes to minimize idle oxidation, clean only with a soft brass wire cleaner (thermal shock from wet sponges damages ultra-fine tips), and work at the minimum effective temperature. Fine tips oxidize faster at high idle temperatures — JBC’s active tip technology and hibernation modes are critical for protecting them.

Is the C115117 suitable for lead-free soldering?
Yes — JBC C115 cartridges are compatible with both leaded and lead-free alloys. Lead-free requires higher temperatures, making JBC’s Sleep & Hibernation and Long Life construction especially important for protecting ultra-fine tips in lead-free environments.
