Jamco Products RB336U600GP Mobile Sloped Shelf Truck
Jamco Products RB336U600GP Mobile Sloped Shelf Truck

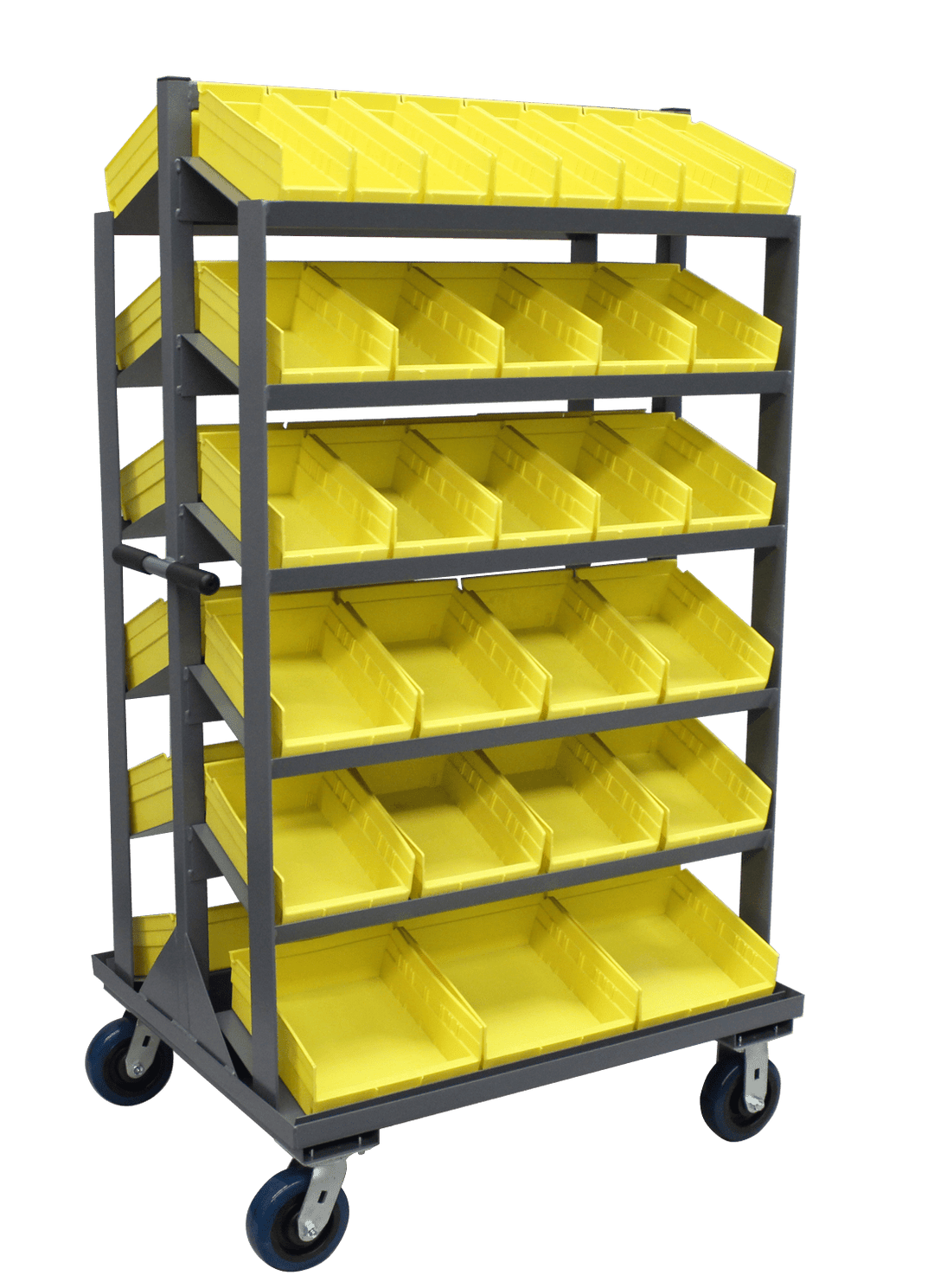

The Jamco Products RB336U600GP is a heavy-duty, all-welded mobile sloped shelf bin truck with 58 yellow plastic bins across 6 shelf levels on both sides. Built with 12-gauge bottom deck, 14-gauge sloped shelves, and 1-1/2" tubular center uprights, the RB336U600GP rides on bolt-on 6" x 2" urethane casters (2 rigid, 2 swivel) for easy replacement and upgrade. Top 5 shelves are 12" deep; bottom shelf is 15" deep. 2,000 lb capacity. Ideal for storage, transport, and sorting of small to large parts and components in warehouse, manufacturing, and distribution environments.
Sold individually. 58 plastic bins included.
Specifications
| Property | Value |
|---|---|
| Model | RB336U600GP |
| Dimensions (W x D x H) | 36" x 30" x 66" |
| Capacity | 2,000 lbs | 58 bins |
| Shelf Levels | 6 levels, double-sided |
| Shelf Depth | Top 5 shelves: 12" | Bottom shelf: 15" |
| Shelf Material | 14-gauge sloped steel |
| Bottom Deck | 12-gauge steel |
| Uprights | 1-1/2" tubular center uprights, 3" x 3/16" horizontal supports |
| Bins Included | 58 yellow plastic bins: 16 small (4-1/8"W), 20 medium (6-5/8"W), 16 large (8-3/8"W), 6 big (11-1/8"W) — all 11-5/8"D x 4"H |
| Casters | 6" x 2" urethane (U600) — 2 rigid, 2 swivel; bolt-on for easy replacement |
| Construction | All-welded steel |
| Finish | Gray powder-coat (GP) |
| Weight | 354 lbs |
| Optional Accessory | Option 05: wheel brakes on 2 swivel casters |
Frequently Asked Questions
What are sloped shelves used for on a bin truck?
Sloped shelves angle the bins forward so contents are always visible and accessible from the aisle without reaching to the back. This improves picking speed and accuracy in warehouse, parts room, and manufacturing environments where small components need to be quickly identified and retrieved.
What bin sizes are included?
The RB336U600GP includes 58 yellow plastic bins in four sizes: 16 small (4-1/8"W), 20 medium (6-5/8"W), 16 large (8-3/8"W), and 6 big (11-1/8"W) — all 11-5/8" deep and 4" high. This mix accommodates a wide range of part sizes on a single truck.
Why are bolt-on casters an advantage?
Bolt-on casters can be removed and replaced without welding or special tools, making it easy to upgrade to a different caster type (e.g., adding wheel brakes via option 05) or replace worn casters in the field — reducing downtime and maintenance cost.
What environments is the RB336U600GP suited for?
The 6" urethane casters make it well-suited for smooth concrete and warehouse floors. The 2,000 lb capacity and all-welded construction handle heavy industrial parts loads. Common applications include parts rooms, assembly lines, receiving/shipping areas, and maintenance shops.
