Jamco Products CV102YP Mesh Cabinet for Gas Cylinders
Jamco Products CV102YP Mesh Cabinet for Gas Cylinders

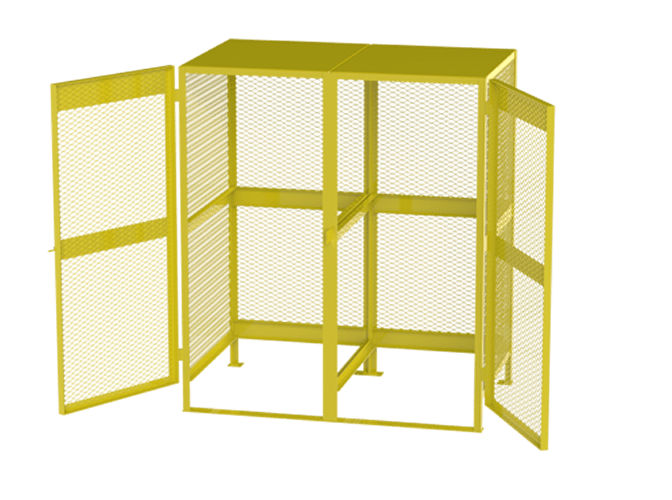

The Jamco Products CV102YP is a large-capacity, all-welded mesh cabinet for secure vertical storage of 10 to 20 gas cylinders up to 200 lbs each. Built with 13-gauge flattened mesh sides, a 14-gauge solid top, and 1-1/2" x 3/16" thick corner angles, the CV102YP features lockable mesh doors with slide bolt hasp, safety retention chains, and foot pads with pre-drilled anchor holes. Powder-coated safety yellow with large red safety signage. Meets OSHA 1910.101 and OSHA 1926.253 requirements for compressed gas cylinder storage. Ready to use, no assembly required.
Sold individually. Padlock not included.
Specifications
| Property | Value |
|---|---|
| Model | CV102YP |
| Cylinder Capacity | 10–20 vertical cylinders |
| Max Cylinder Weight | Up to 200 lbs per cylinder |
| Dimensions (W x D x H) | 64" x 40" x 71" |
| Number of Doors | 2 (lockable mesh, slide bolt hasp) |
| Side Construction | 13-gauge flattened mesh |
| Top Construction | 14-gauge solid steel |
| Corner Angles | 1-1/2" x 3/16" thick |
| Safety Retention Chains | Yes |
| Foot Pads | Pre-drilled for floor anchoring |
| Finish | Powder-coated safety yellow (YP) |
| Weight | 378 lbs |
| Assembly | All-welded, ready to use |
| Compliance | OSHA 1910.101; OSHA 1926.253 |
| Padlock | Not included |
Frequently Asked Questions
What OSHA regulations apply to gas cylinder storage cabinets?
OSHA 1910.101 covers compressed gas cylinder storage in general industry, and OSHA 1926.253 covers compressed gas use in construction. Key requirements include securing cylinders upright, storing full and empty cylinders separately, and keeping cylinders away from heat sources and flammable materials. The CV102YP is designed to meet these requirements with retention chains, lockable doors, and ventilated mesh construction.
Why is mesh construction used for gas cylinder cabinets?
Mesh sides allow natural ventilation, which is critical for gas cylinder storage — preventing buildup of leaked gas that could create an explosion or asphyxiation hazard. Solid-wall cabinets are not appropriate for compressed gas cylinder storage for this reason.
How does the CV102YP differ from the CV051YP?
The CV102YP holds 10–20 cylinders and measures 64" x 40" x 71". The CV051YP is a smaller unit holding 5–10 cylinders. Choose based on your cylinder inventory volume and available floor space.
Does the cabinet need to be anchored to the floor?
The foot pads include pre-drilled holes for optional floor anchoring, which is recommended for seismic zones or high-traffic areas to prevent tipping. A padlock (not included) is required to secure the slide bolt hasp on the doors.
