Jamco Products CV051YP Mesh Cabinet for Gas Cylinders
Jamco Products CV051YP Mesh Cabinet for Gas Cylinders

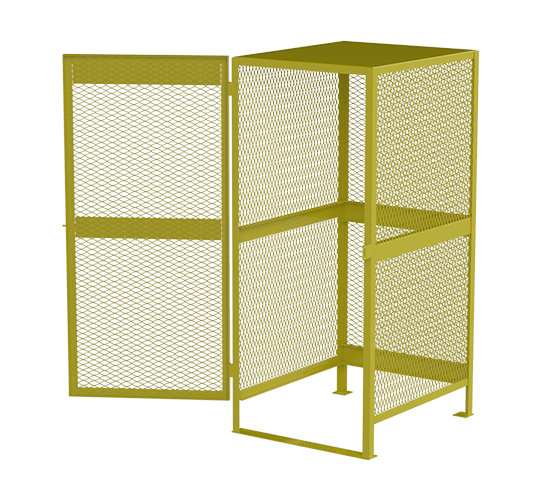

The Jamco Products CV051YP is a mid-size, all-welded mesh cabinet for secure vertical storage of 5 to 10 gas cylinders up to 200 lbs each. Built with 13-gauge flattened mesh sides, a 14-gauge solid top, and 1-1/2" x 3/16" thick corner angles, the CV051YP features a single lockable mesh door with slide bolt hasp, safety retention chains, and foot pads with pre-drilled anchor holes. Powder-coated safety yellow with large red safety signage. Meets OSHA 1910.101 and OSHA 1926.253 requirements for compressed gas cylinder storage. Ready to use, no assembly required.
Sold individually. Padlock not included.
Specifications
| Property | Value |
|---|---|
| Model | CV051YP |
| Cylinder Capacity | 5–10 vertical cylinders |
| Max Cylinder Weight | Up to 200 lbs per cylinder |
| Dimensions (W x D x H) | 33" x 40" x 71" |
| Number of Doors | 1 (lockable mesh, slide bolt hasp) |
| Side Construction | 13-gauge flattened mesh |
| Top Construction | 14-gauge solid steel |
| Corner Angles | 1-1/2" x 3/16" thick |
| Safety Retention Chains | Yes |
| Foot Pads | Pre-drilled for floor anchoring |
| Finish | Powder-coated safety yellow (YP) |
| Weight | 202 lbs |
| Assembly | All-welded, ready to use |
| Compliance | OSHA 1910.101; OSHA 1926.253 |
| Padlock | Not included |
Frequently Asked Questions
How does the CV051YP differ from the CV102YP?
The CV051YP holds 5–10 cylinders and measures 33" wide with a single door. The CV102YP is the larger unit, holding 10–20 cylinders at 64" wide with two doors. Both share the same all-welded mesh construction, OSHA compliance, and safety retention chains. Choose the CV051YP for smaller cylinder inventories or tighter floor space.
Why is mesh construction required for gas cylinder storage?
Mesh sides allow natural ventilation, preventing buildup of leaked gas that could create an explosion or asphyxiation hazard. Solid-wall enclosures are not appropriate for compressed gas cylinder storage for this reason.
What OSHA regulations apply to this cabinet?
OSHA 1910.101 covers compressed gas cylinder storage in general industry, and OSHA 1926.253 covers compressed gas use in construction. Key requirements include securing cylinders upright with chains, storing full and empty cylinders separately, and keeping cylinders away from heat and ignition sources — all addressed by the CV051YP design.
Does the cabinet need to be anchored to the floor?
Floor anchoring is optional but recommended for seismic zones or high-traffic areas. The pre-drilled foot pads accommodate anchor bolts. A padlock (not included) is required to secure the slide bolt hasp.
