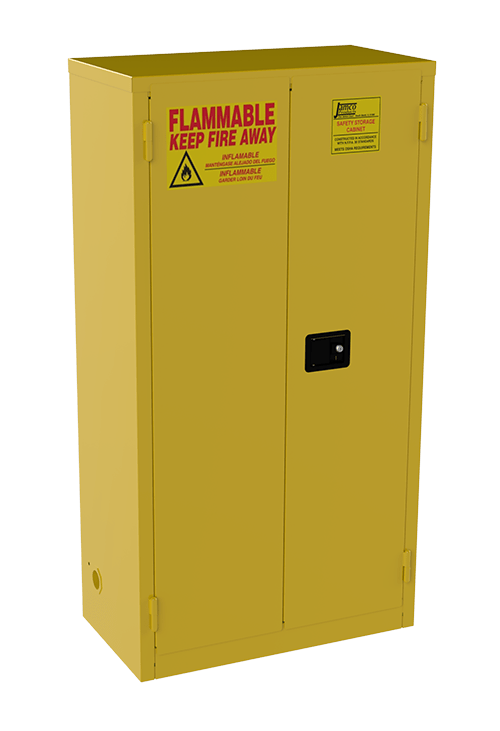

Jamco Products BS44YP Flammable Liquid Storage Cabinet, 44 gallon
Jamco Products BS44YP Flammable Liquid Storage Cabinet, 44 gallon
The Jamco Products BS44YP is a 44-gallon, FM Approved flammable liquid storage cabinet with self-closing doors. Built from all-welded double-wall 18-gauge steel with a 1-1/2" insulating air space, the BS44YP features 14-gauge double-wall doors with a concealed self-closing mechanism — doors automatically shut, index, and latch when the fusible link melts at 165°F under fire conditions. Includes 3-point locking system, 2" leakproof sill, twin 2" flame arrester vents, and 3 adjustable galvanized steel shelves. Meets OSHA, NFPA Code 30, and UFC 79 standards. Powder-coated yellow finish.
Sold individually.
Specifications
| Property | Value |
|---|---|
| Model | BS44YP |
| Capacity | 44 gallons |
| Dimensions (W x D x H) | 34" x 18" x 65" |
| Number of Doors | 2 (self-close, fusible link at 165°F) |
| Door Construction | Double-wall: 14-gauge outside, 18-gauge inside |
| Body Construction | All-welded double-wall 18-gauge steel, 1-1/2" air space |
| Locking System | 3-point locking, flush-mounted handle, 2 keys included |
| Self-Close Mechanism | Concealed; activates automatically at 165°F |
| Shelves | 3 adjustable galvanized steel shelves (adjust on 3" centers) |
| Leakproof Sill | 2" |
| Vents | Twin 2" flame arrester vents |
| Hinges | 4" heavy-duty welded hinges with brass pins |
| Finish | Powder-coated yellow (YP) |
| Weight | 312 lbs |
| Leveling Feet | Adjustable, with grounding connector |
| Chemical Storage Max | Class I & II: 60 gal | Class III: 120 gal |
| Compliance | FM Approved; OSHA; NFPA Code 30; UFC 79 |
| Optional Accessory | GS134 additional adjustable galvanized shelf |
Frequently Asked Questions
What is the difference between self-close (BS) and manual close (BM) flammable cabinets?
The BS series features a concealed self-closing mechanism with a fusible link that automatically shuts, indexes, and latches the doors at 165°F in a fire — providing passive fire protection without requiring human action. The BM series has manual close doors that open to a full 180°. Self-close cabinets are required by some fire codes and preferred in high-risk environments. Both are FM Approved and meet OSHA and NFPA Code 30.
What is a fusible link and how does it work?
A fusible link is a heat-sensitive device that holds the self-closing door mechanism open during normal use. When ambient temperature reaches 165°F (as in a fire), the fusible link melts, releasing the mechanism and allowing the spring-loaded doors to automatically close and latch — containing the fire and preventing it from spreading to stored flammables.
What chemicals can be stored in the BS44YP?
The BS44YP is rated for Class I and Class II flammable liquids up to 60 gallons total, and Class III combustible liquids up to 120 gallons. Common examples include acetone, IPA, MEK, toluene, and other flammable solvents.
Does the BS44YP meet UFC 79 in addition to NFPA Code 30?
Yes — the BS series meets OSHA, NFPA Code 30, and UFC 79 (Uniform Fire Code), making it compliant with a broader range of fire safety regulations than the BM manual close series.
