Transforming Technologies CM410 is a single-wire continuous monitor for one operator’s wrist-strap system and one ESD workstation mat ground path. It checks the monitored grounding system during use and provides audible and visual indications when a problem is detected, helping operators respond to a connection failure rather than relying only on a check made before work starts.

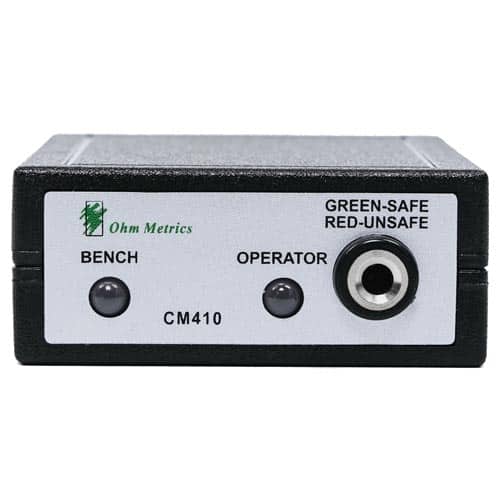

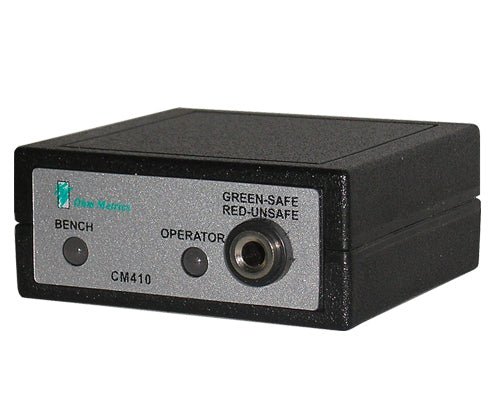

The compact monitor is compatible with most single-wire wrist straps and fits beneath a bench top. Monitoring begins when a coil cord is plugged into the unit. A green indicator signals an acceptable monitored connection; a red indicator and audible alarm communicate a problem. These indications apply to the monitor’s defined functions, not every ESD control at the workstation.
Best Uses / Applications
- Electronics assembly: continuous monitoring of one operator and one workstation mat grounding connection during sensitive handling.
- Rework and inspection benches: provide an audible and visual indication when a monitored connection changes.
- Single-operator workstations: evaluate the CM410 where the process requires both operator and mat monitoring, rather than operator-only coverage.
- Existing single-wire wrist-strap systems: assess compatibility with the actual wristband, cord, mat and grounding arrangement before installation.
- Documented ESD control programs: combine connection monitoring with the other measurements and verification activities required by the site’s approved plan.
Key Features
- Continuously monitors one wrist-strap system and one ESD worksurface ground path.
- Compatible with most standard single-wire wrist straps.
- Audible and visual alarm indications.
- Automatic sensing begins when a coil cord is connected.
- Compact design for mounting beneath a bench top.
- Factory calibrated and fixed, with no user adjustments or annual recalibration required according to the manufacturer.
- Compatible periodic verification available with the CM410PV.
Specifications
| Manufacturer | Transforming Technologies |
|---|---|
| Model / SKU | CM410 |
| Type | Single-wire continuous / impedance monitor |
| Operator capacity | One operator / wrist-strap system |
| Worksurface capacity | One ESD workstation mat ground path |
| Wrist-strap compatibility | Most standard single-wire wrist straps; confirm the exact system |
| Indication | Green connection indication; red indication and audible alarm for an unsafe monitored connection |
| Activation | Begins sensing when a coil cord is plugged in |
| Power / grounding | AC adapter; manufacturer product page lists 120 V AC |
| Mounting | Compact unit suitable for underside-of-bench placement |
| Listed dimensions | 2.3 × 1 × 2.4 in |
| Manufacturer-listed weight | 1 lb |
| Calibration / adjustment | Factory calibrated and fixed; manufacturer states no adjustments or annual recalibration required |
| Periodic verification accessory | CM410PV periodic verification unit |
| Data-sheet revision | August 12, 2026 |
Confirm installation, adapter requirements, accessories and acceptance criteria against the current manufacturer instructions for the actual system. A product’s monitoring capability does not by itself establish suitability or compliance of the complete workstation.
What the CM410 Monitors, and What It Does Not Replace
The monitored operator loop includes the person, wristband, coil cord and workstation grounding arrangement. The mat channel monitors the worksurface ground connection. Do not interpret a green indication as a complete test of every point on the mat, ionizer performance, tool suitability or the entire handling process.
Keep worksurface electrical-performance testing and other required checks in the approved control plan. Continuous monitoring and periodic performance measurements answer different questions. Where the program adopts continuous wrist-strap monitoring in place of separate routine strap checks, document that decision and follow the applicable manufacturer and program requirements.
Verification and Care of the Monitoring System
Factory calibration and adjustment-free operation do not mean that functional verification should be ignored. The manufacturer recommends verifying proper operation with the CM410PV periodic verification tool at least once per year. Apply any additional requirements from your quality program and follow the exact verification procedure.
The verification tool simulates conditions to check monitor responses. It is not a general mat-resistance meter or ionizer tester. If an alarm occurs during work, follow the site’s defined response before continuing sensitive handling.
Selection Comparison
| Selection need | CM410 guidance |
|---|---|
| One operator and one workstation mat | The CM410 is intended for this monitoring configuration. |
| Operator-only monitoring | Compare an operator-only model such as CM400 rather than assuming all constant monitors cover the mat. |
| More than one operator | Compare a model with the required number of operator channels; CM410 is a one-operator unit. |
| Functional check of a compatible monitor | Use the manufacturer-specified CM410PV procedure. The CM410 itself is not the verification accessory. |
| Surface resistance or ionizer performance measurements | Select suitable test equipment separately. A grounding monitor is not a substitute for those instruments. |
Frequently Asked Questions
What does the CM410 monitor?
It continuously monitors one operator’s wrist-strap system and one ESD workstation mat ground path. Confirm installation and the exact monitored configuration using current manufacturer instructions.
Which wrist straps are compatible?
The manufacturer specifies compatibility with most standard single-wire wrist straps. That does not establish compatibility with every wrist strap or dual-wire system; verify the band, cord and monitor combination.
What happens when a problem is detected?
The CM410 uses visual and audible indications. The data sheet describes a green indication for a safe monitored connection and a red light with audible alarm for an unsafe connection. Define the required operator response in the workstation procedure.
Does a green light mean the entire mat has passed resistance testing?
No. Connection monitoring does not replace evaluation of the worksurface’s electrical performance under an appropriate test method. Keep those measurements in the approved verification plan.
Does the CM410 require annual recalibration?
The manufacturer describes the monitor as factory calibrated and fixed, without adjustments or annual recalibration. It separately recommends functional verification with the CM410PV at least annually. Follow the quality program’s additional requirements.
Is the CM410PV included?
The data sheet identifies CM410PV as an accessory. Do not assume it is included with the CM410; confirm order contents when selecting a complete system.
Does the CM410 replace an ionizer?
No. The CM410 monitors grounding connections. Ionization addresses charge on materials that cannot be grounded by ordinary means and must be selected and verified separately where needed.
Manufacturer Data Sheet
Download the Transforming Technologies CM410 data sheet (PDF), revision August 12, 2026.
