Ideal-tek ST-LED — Smart Tweezers LED Tester

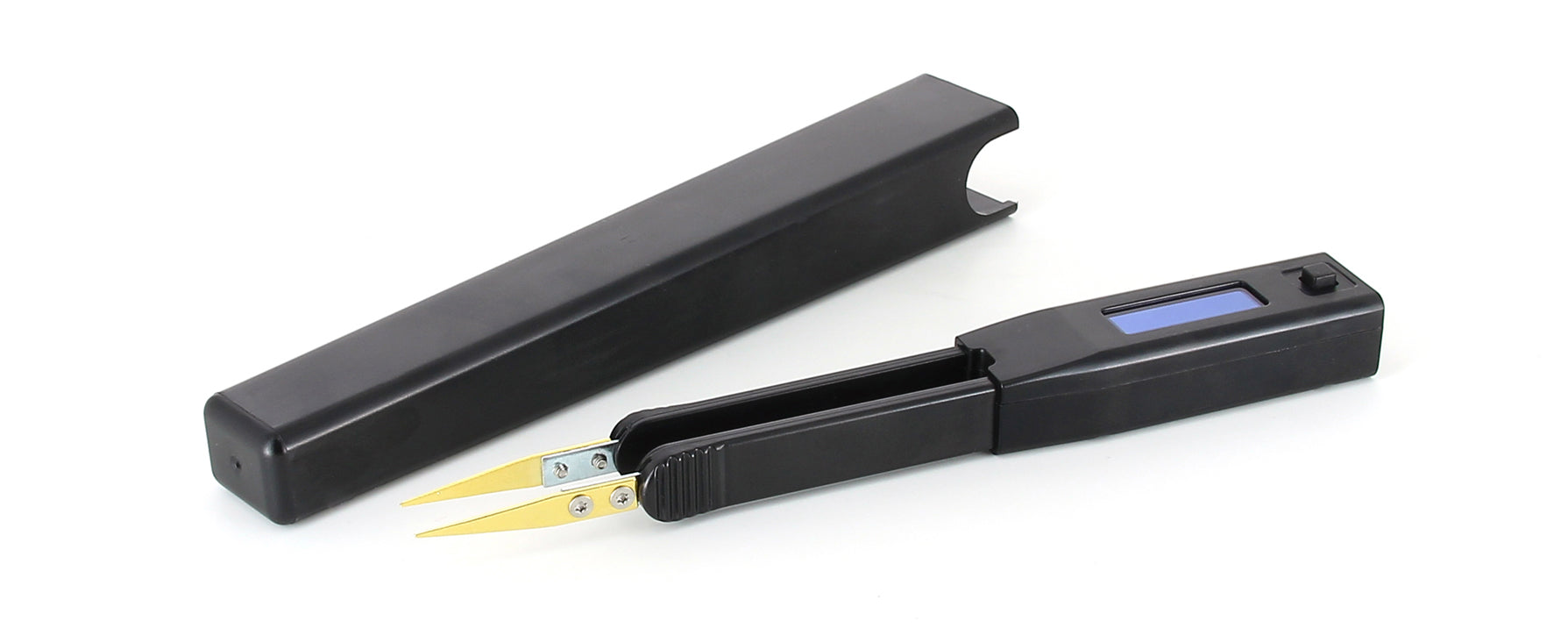

The Ideal-tek ST-LED Smart Tweezers are a specialized precision tool for testing and verifying surface-mount (SMD) and through-hole LEDs directly on PCBs or in component trays. The integrated LED tester displays forward voltage and drive current, enabling quick pass/fail verification of LED polarity, functionality, and brightness without a separate test instrument. ESD-safe construction makes it suitable for use in ESD-controlled electronics assembly environments.

Key Specifications

• Part Number: ST-LED
• Function: LED tester integrated into precision tweezers
• Compatible Components: SMD LEDs, through-hole LEDs
• Display: Forward voltage and drive current
• ESD Safe: Yes
• Application: PCB assembly inspection, component verification

Applications

• SMD LED polarity and functionality verification on PCBs
• Through-hole LED testing during assembly and inspection
• Component incoming inspection and sorting
• PCB rework and repair LED verification
• ESD-sensitive electronics assembly environments

Frequently Asked Questions

What types of LEDs can the Ideal-tek ST-LED test?
The ST-LED is designed for testing both SMD (surface-mount) and through-hole LEDs. It can verify LED polarity, forward voltage, and basic functionality across a wide range of standard LED types.

Does the ST-LED display forward voltage?
Yes. The ST-LED displays the forward voltage and drive current of the LED under test, providing quantitative data for pass/fail decisions and LED characterization during assembly and inspection.

Is the Ideal-tek ST-LED ESD safe?
Yes. The ST-LED is ESD-safe, making it suitable for use in ESD-controlled assembly and inspection environments where standard metal tweezers could pose a static discharge risk to sensitive components.

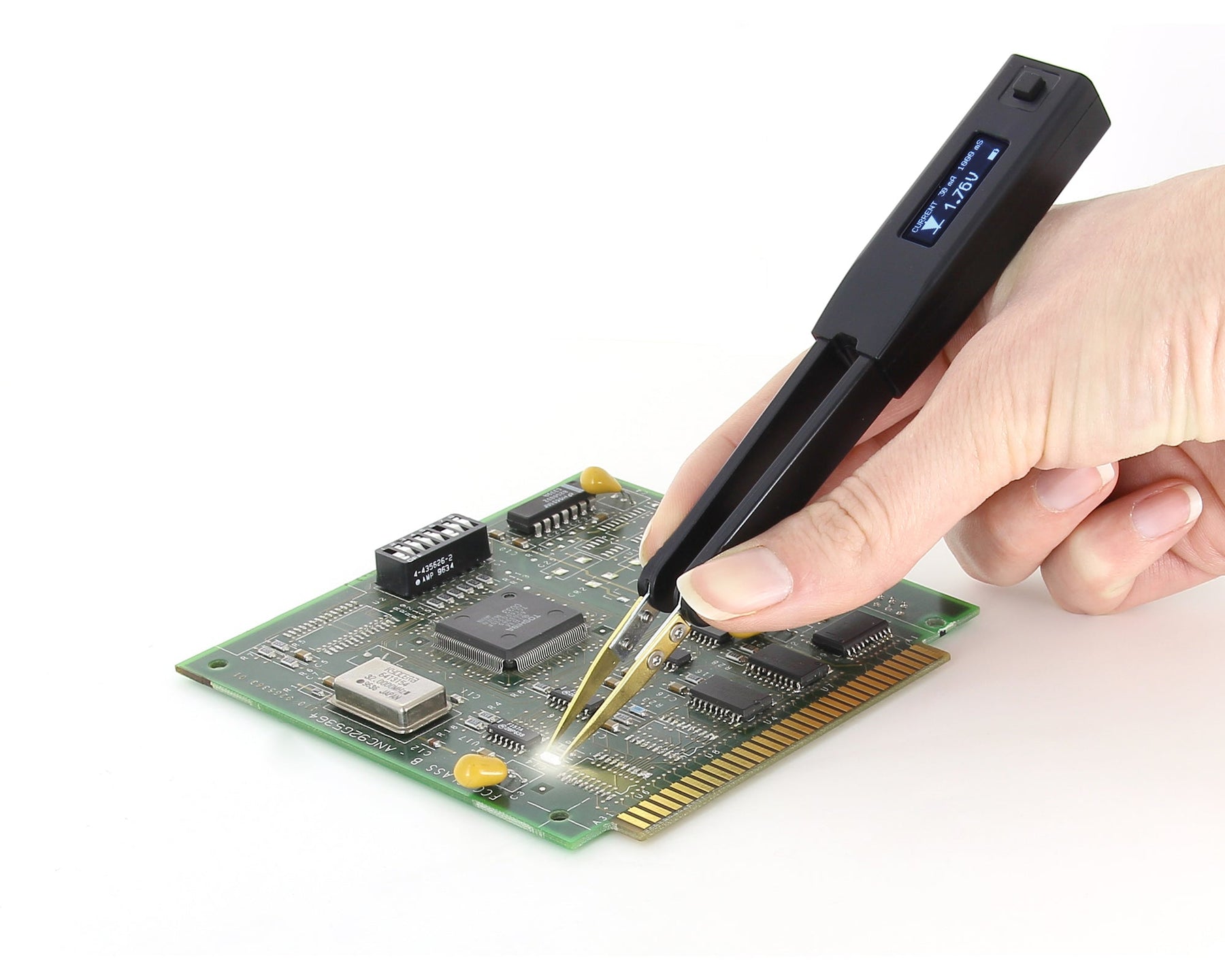

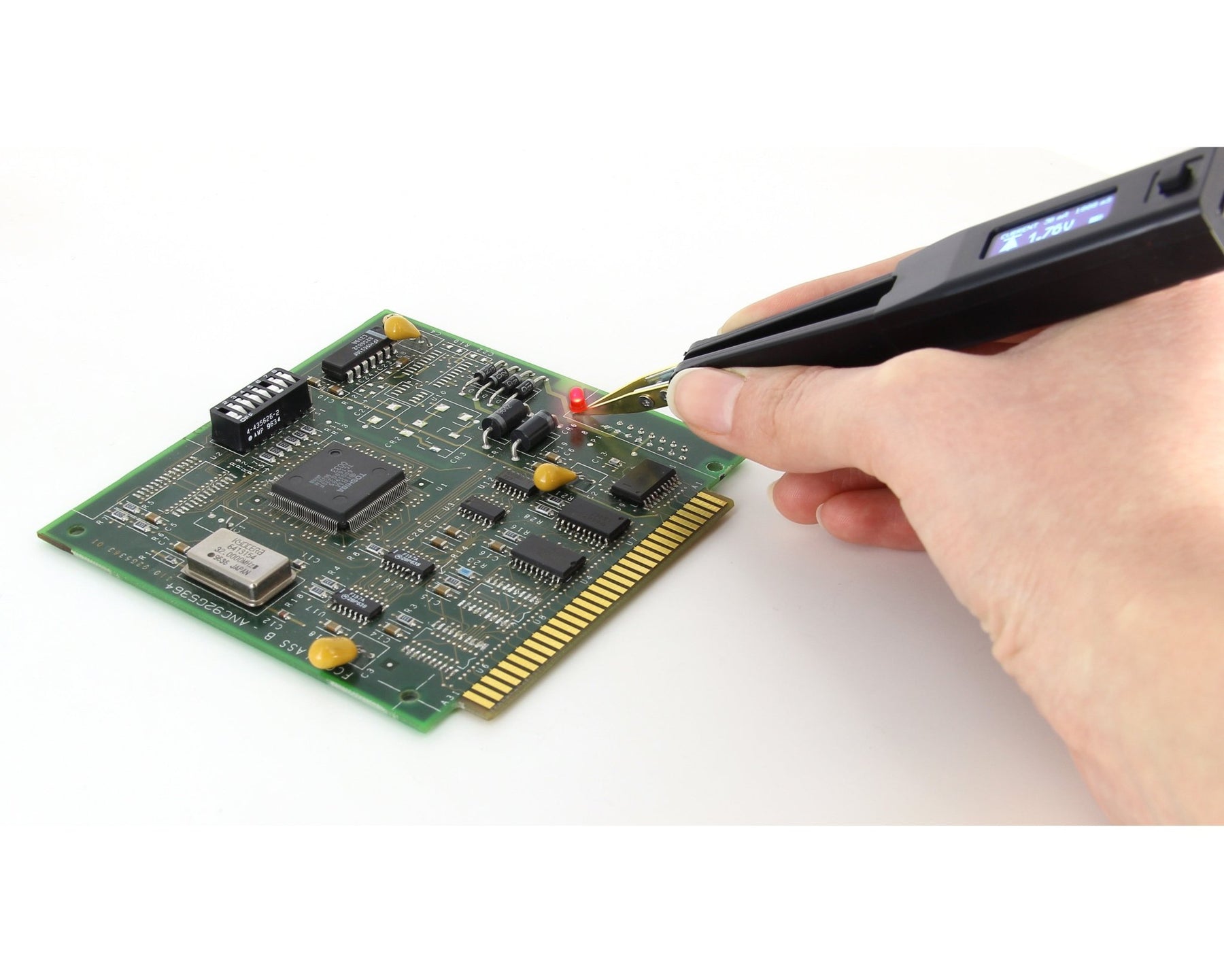

Can the ST-LED test LEDs while they are installed on a PCB?
Yes. The precision tweezer format allows testing of SMD LEDs directly on populated PCBs without desoldering, making it ideal for in-circuit LED verification during assembly inspection and rework.

What is the difference between the Ideal-tek ST-LED and standard smart tweezers?
Standard Ideal-tek smart tweezers measure passive components (resistance, capacitance, inductance). The ST-LED is specifically optimized for LED testing, displaying forward voltage and current rather than passive component values.
