IDEAL-TEK MPT123CP.ITU Soldering Aid Tool Set MPT123 CP ESD Safe
IDEAL-TEK MPT123CP.ITU Soldering Aid Tool Set MPT123 CP ESD Safe

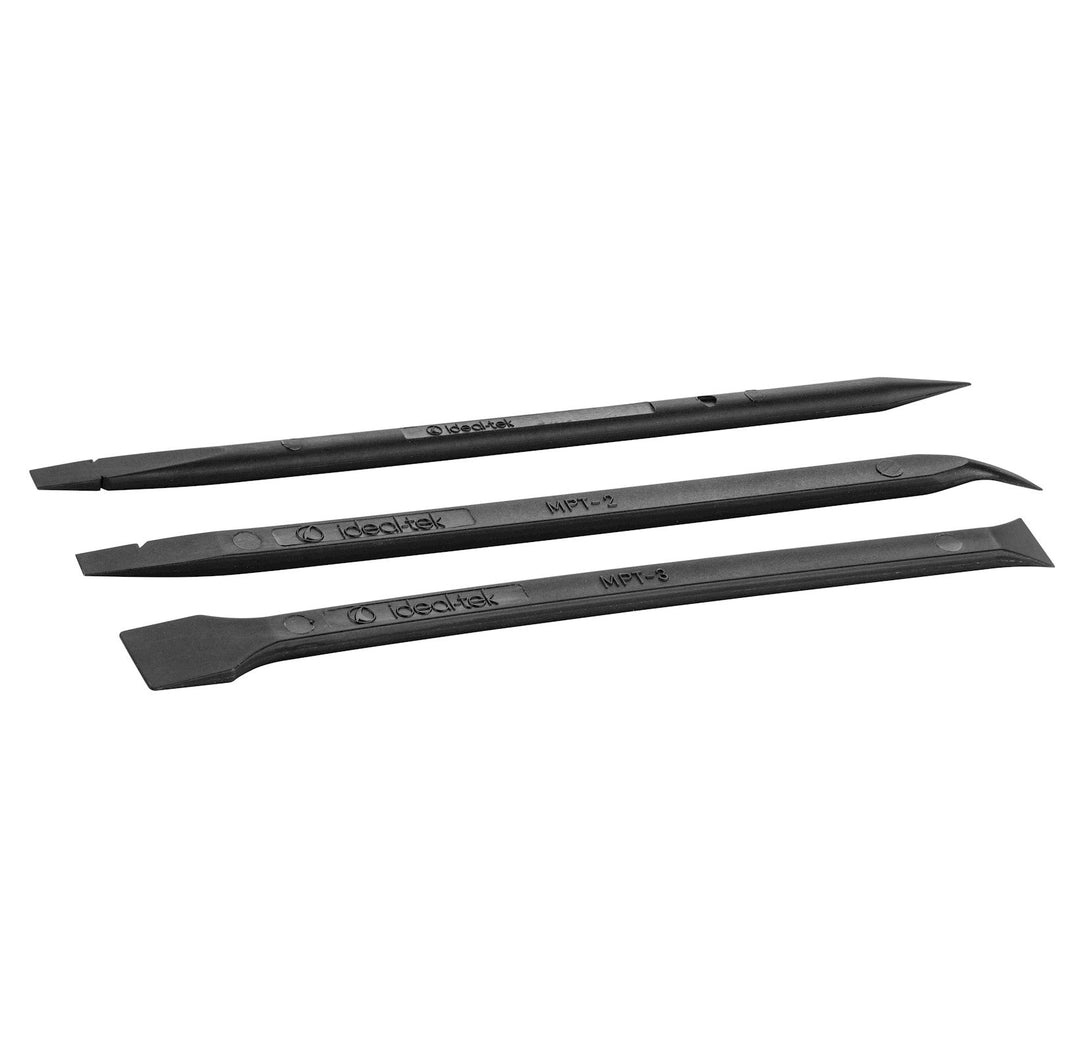

The Ideal-tek MPT123CP.ITU is a three-piece carbon-PEEK ESD-safe probe and spatula kit for electronics assembly, positioning and rework. It includes MPT1RCP, MPT2CP and MPT3CP tools, combining rigid, wear-resistant plastic with the manufacturer's non-scratching properties for precision handling.
Best Uses / Applications
- Positioning components during electronics assembly and lead-free soldering operations.
- Applying adhesives and dosing chemicals in laboratory work.
- Stirring adhesive preparations and solutions, subject to chemical compatibility.
- Removing solder masking agents, rubber latex and adhesive coatings with controlled pressure.
- Precision handling in electronics, chemistry and watchmaking.
Key Features
- Three complementary MPT probe models in one kit.
- Carbon-fiber-reinforced PEEK, designated CP by Ideal-tek.
- Manufacturer-designated ESD-safe material for appropriate static-sensitive handling tasks.
- High rigidity, wear resistance and heat capability.
- Plastic working surfaces offer an alternative to metal probes for delicate positioning. Test on a noncritical area first; non-scratching properties are not a guarantee against damage.
Technical Specifications
| Specification | Manufacturer information |
|---|---|
| Store part number | MPT123CP.ITU |
| Manufacturer kit code | MPT123CP |
| Contents | MPT1RCP, MPT2CP and MPT3CP, one of each |
| Material | Carbon-fiber-reinforced PEEK (CP) |
| MPT1RCP | Model 1, rounded body; 150 mm / 5.9 in |
| MPT2CP | Model 2, squared body; 150 mm / 5.9 in |
| MPT3CP | Model 3, squared body; 140 mm / 5.5 in |
| Kit-level dimensions listed in product datasheet | 180 × 75 × 7 mm (7.087 × 2.953 × 0.276 in). These are not individual probe lengths; the datasheet does not identify them as shipping-package dimensions. |
| ESD-safe | Yes, per Ideal-tek |
| RoHS | Manufacturer lists compliant |
| Country of manufacture | Italy, per current manufacturer product datasheet |
| CP continuous-use temperature | 260°C, material datasheet value at 20,000 hours |
| CP short-time temperature | 300°C, material datasheet value |
| CP heat-deflection temperature | 300°C at 1.80 MPa load |
| CP tensile strength / modulus at 23°C | 190 MPa / 24,000 MPa |
| CP flexural strength / modulus at 23°C | 350 MPa / 21,400 MPa |
| CP charge decay time | Less than 0.2 seconds, 1,000 to 10 V |
| CP density / water absorption | 1.28 g/cm³; 0.60% after 24 hours in water at 23°C |
Selection note: The manufacturer headline describes the range as 150 mm long, but its kit list identifies MPT3CP as 140 mm. The individual lengths above follow that kit list. Material properties are typical laboratory values, not guaranteed finished-tool performance under every load, chemical or exposure condition. Do not treat the 300°C short-time value as a continuous-use rating or permission for unrestricted soldering-iron contact.
Comparison: Choosing a Probe for the Task
| Option | When it makes sense | Selection consideration |
|---|---|---|
| MPT123CP carbon-PEEK kit | Multiple positioning, application and scraping tasks with ESD-safe plastic tools | Three models; verify geometry and chemical compatibility for the job |
| Individual MPT probe | Replacing one shape or standardizing a repetitive operation | Select the exact model, length and material rather than assuming all MPT probes are identical |
| Metal probe | Tasks specifically requiring a metal working surface | Evaluate scratching, conductivity and the workpiece before substituting for plastic |
| General-purpose plastic tool | Tasks where its documented material properties meet the requirement | Do not assume unspecified plastic is ESD-safe or has CP's thermal properties |
Manufacturer Video: ESD Background
Ideal-tek lists “EPISODE 6 - What is Electrostatic discharge?” in its training library. This is general ESD education, not an MPT123CP demonstration or certification of your workstation.
Watch Ideal-tek's ESD training video | Manufacturer video library
Frequently Asked Questions
What comes in the MPT123CP.ITU kit?
One each of the MPT1RCP, MPT2CP and MPT3CP carbon-PEEK plastic probes. This is a three-piece hand-tool kit, not a powered soldering station.
Are all three probes 150 mm long?
No. Ideal-tek's kit list gives MPT1RCP and MPT2CP as 150 mm and MPT3CP as 140 mm. Its product datasheet separately lists kit-level dimensions of 180 × 75 × 7 mm.
Is this an ESD-safe tool set?
Yes. Ideal-tek designates the carbon-PEEK CP material and this probe kit as ESD-safe. Tool selection does not replace your site's ESD-control procedures.
What does CP mean?
CP is Ideal-tek's designation for carbon-reinforced PEEK, a high-performance plastic combining rigidity, wear resistance, chemical resistance and heat capability.
Can these probes be used around soldering work?
The manufacturer includes lead-free soldering operations among the intended applications. Its material sheet lists 260°C continuous use and 300°C short-time temperature; these are material values, not an unrestricted direct-contact rating for a hot soldering tip.
Can I use the tools to apply adhesives or remove masking?
Yes. Listed applications include adhesive application, stirring, chemical dosing and removing solder mask agents, rubber latex or adhesive coatings. Check compatibility and use controlled force to avoid damaging the substrate.
Will the plastic tips scratch my components?
The manufacturer describes the probes as having non-scratching properties. Surface condition, contamination and applied force still matter, so evaluate the tool on a noncritical area first.
Does chemical resistance mean compatibility with every solvent?
No. The CP material sheet describes excellent chemical resistance, but does not establish compatibility with every process chemical, concentration or exposure time. Validate the intended process before use.
Technical Documents
MPT123CP product datasheet
CP material technical data sheet
Plastic probes and spatulas dimensions
ESD plastic probes leaflet
