IDEAL-TEK SS.SA.0.ITU High Precision Tweezers SS.SA, SS Anti-Mag
IDEAL-TEK SS.SA.0.ITU High Precision Tweezers SS.SA, SS Anti-Mag

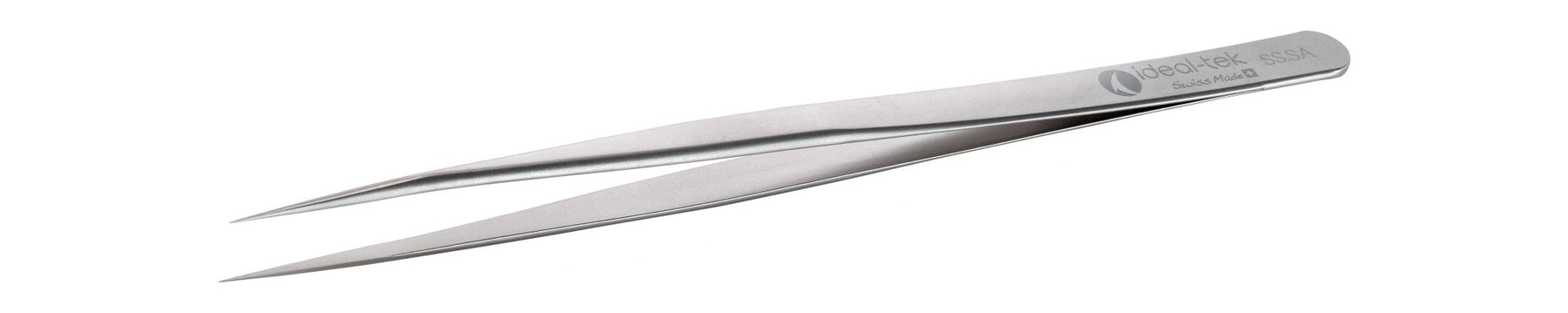

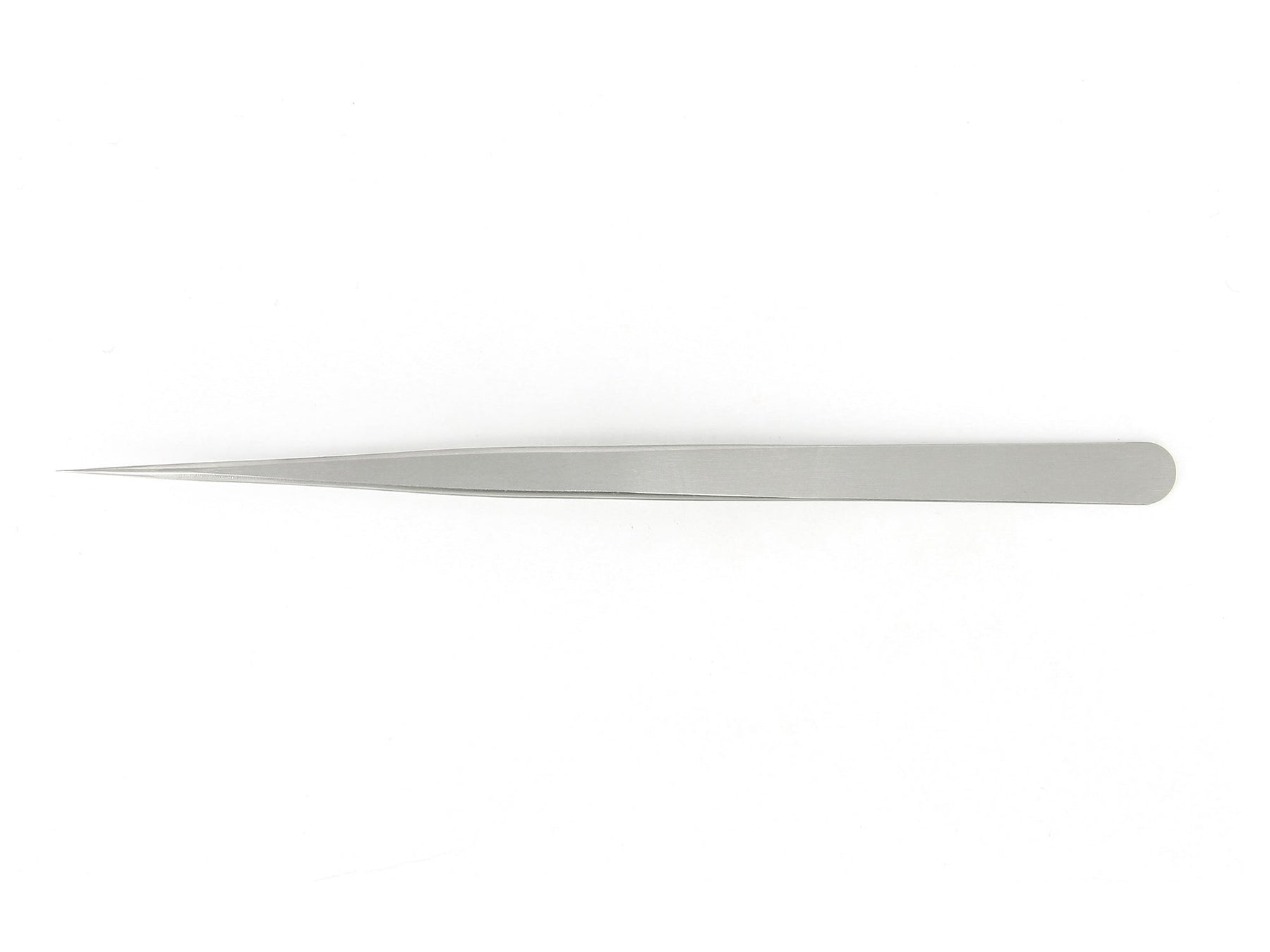

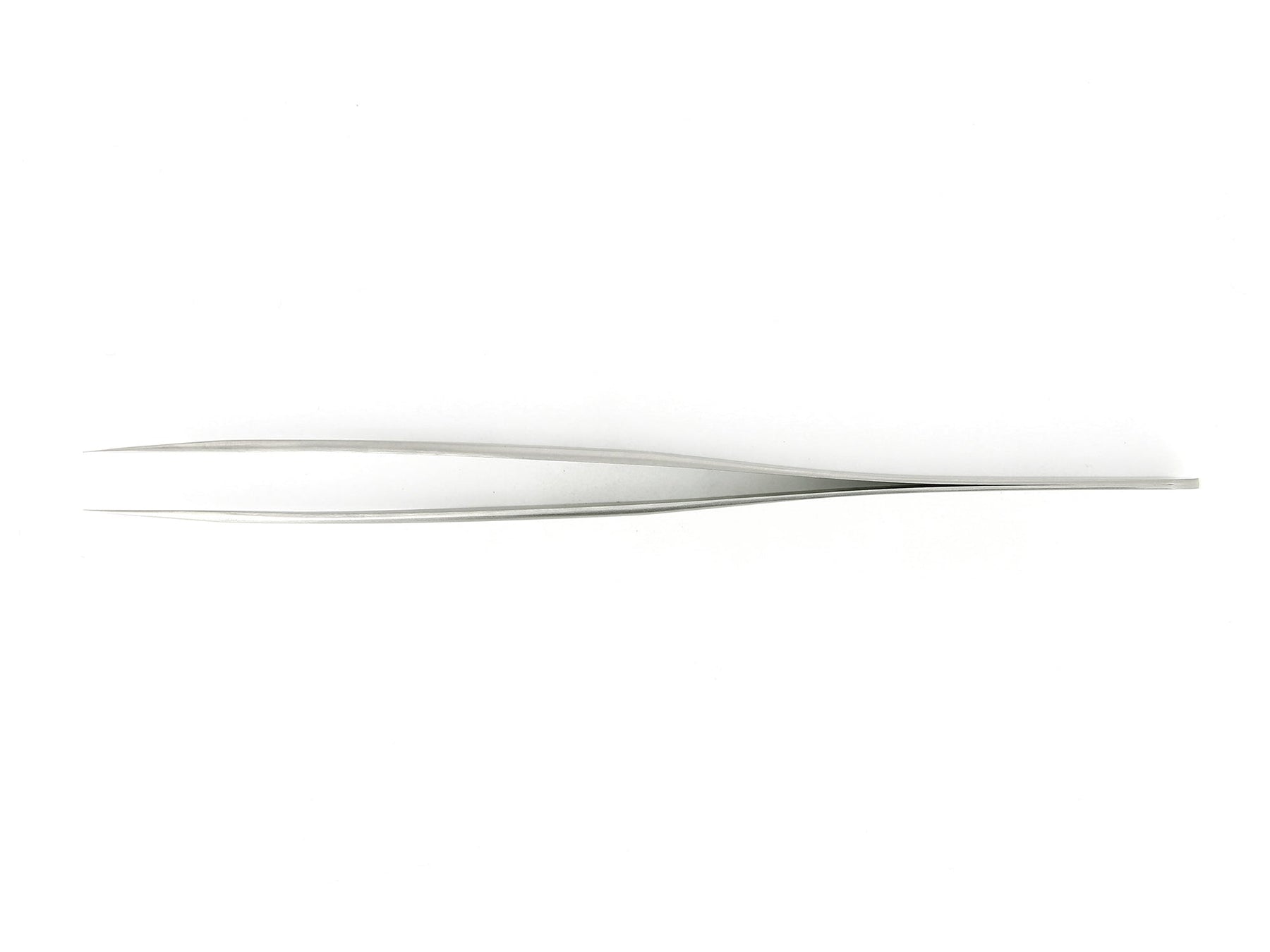

IDEAL-TEK SS.SA.0.ITU high precision tweezers provide very fine, very sharp straight tips for delicate applications requiring a firm hold on a small component while maintaining good visibility. This Swiss-made, 140mm tool combines SA anti-magnetic, anti-acid stainless steel with a sandblasted body and superior tip finish. The specified tip width is 0.12mm and tip thickness is 0.09mm.
ESD selection note: Ideal-tek lists SS.SA.0 as not ESD safe. Anti-magnetic material is not an ESD-safe designation.
Best Uses / Applications
- Delicate component positioning where very fine, sharp steel points are appropriate.
- Micro-mechanical assembly and inspection requiring straight access and visibility around a small part.
- Laboratory handling tasks where the contact geometry and stainless steel material suit the sample.
- Precision electronics work where ESD requirements have been evaluated separately.
Key Features

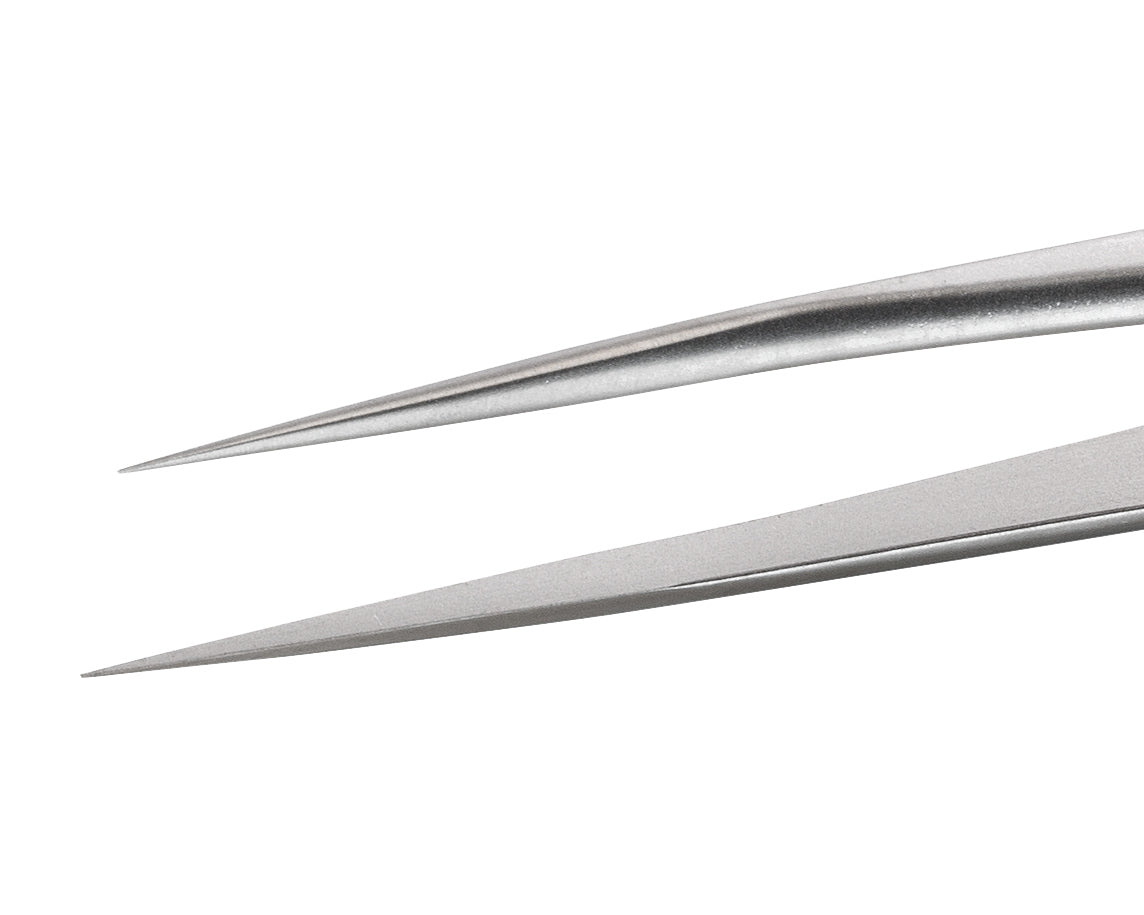

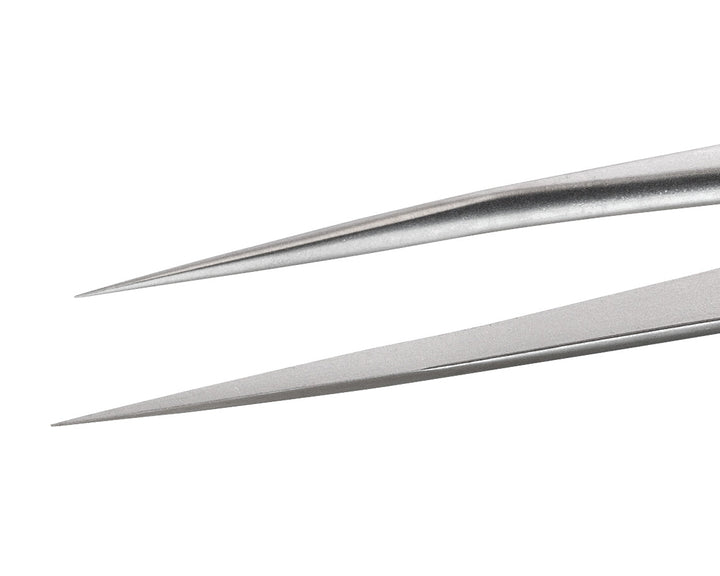

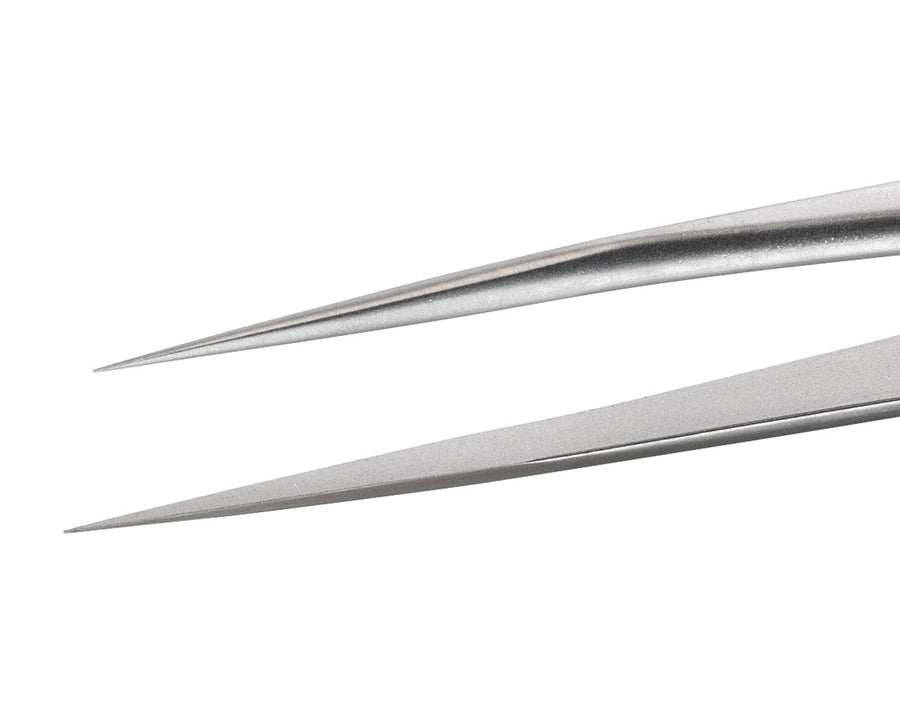

- Style SS straight, very fine, very sharp tips with superior finish.
- 140mm overall length and 8mm body width.
- SA anti-magnetic, anti-acid stainless steel.
- Sandblasted finish and conventional squeeze-to-close action.
- Manufacturer-listed 8mm tip opening gap.
- Manufactured in Switzerland; manufacturer lists RoHS compliance.
Technical Specifications
| Specification | Manufacturer data |
|---|---|
| MTE SKU | SS.SA.0.ITU |
| Manufacturer product code | SS.SA.0 |
| Category / style | High precision tweezers / SS |
| Tip type | Straight, very fine, very sharp, superior finish |
| Overall length | 140mm / 5.512in |
| Width × height | 8 × 12mm / 0.315 × 0.472in |
| Tip width × thickness | 0.12 × 0.09mm / 0.005 × 0.004in |
| Tip opening gap | 8mm / 0.315in |
| Body material | SA anti-magnetic, anti-acid stainless steel |
| Body finish | Sandblasted |
| Reverse action | No |
| ESD safe | No |
| Net tool weight | 13g / 0.029lb; not packed shipping weight |
| Country of manufacture | Switzerland |
| RoHS | Manufacturer lists compliant |
Selection Comparison
| Tool choice | Access and contact | Selection guidance |
|---|---|---|
| SS.SA.0 | 140mm; straight steel tips, 0.12 × 0.09mm | Choose for direct, straight access with very fine, very sharp points; not ESD safe. |
| 7.SA.0 | 120mm; 45° curved steel tips, 0.16 × 0.09mm | Choose when curved access is preferable; not ESD safe. |
| Manufacturer-designated ESD-safe tweezers | Geometry and contact material vary by model | For electrostatic-sensitive work, verify the specific model's ESD designation rather than relying on anti-magnetic wording. |
Care and Handling
Inspect point alignment and cleanliness before working with small parts. Protect the very fine ends from impacts and excessive closing pressure. Avoid prying, twisting or side loading. Select cleaning agents for the actual material and process; the anti-acid material designation does not establish compatibility with every chemical, concentration or exposure time.
Frequently Asked Questions
What is SS.SA.0.ITU designed for?
It is designed for delicate applications that require holding a small component firmly while maintaining good visibility.
Are the tips straight or curved?
They are straight, very fine and very sharp, with a superior finish.
What are the tip dimensions?
The product datasheet specifies a 0.12mm tip width and 0.09mm tip thickness.
How long are these tweezers?
Overall length is 140mm, approximately 5.51 inches. The tool is 8mm wide and 12mm high.
Are these tweezers ESD safe?
No. Ideal-tek lists this model as not ESD safe. Anti-magnetic stainless steel and ESD-safe performance are separate selection criteria.
What does SA mean?
SA identifies Ideal-tek's anti-magnetic, anti-acid stainless steel material. This model has a sandblasted body finish.
Are these reverse-action tweezers?
No. They use conventional squeeze-to-close action. The manufacturer lists an 8mm tip opening gap.
Where are they made, and how do they compare with style 7?
The datasheet identifies Switzerland as the country of manufacture. SS.SA.0 is a 140mm straight-tip tool; 7.SA.0 is a 120mm curved-tip tool with a 45° bend. Choose based on the access angle and contact dimensions required by the task.
Manufacturer Precision-Tweezer Training
Ideal-tek's Episode 5, “How to improve your Tweezer performance?”, is general manufacturer training, not a dedicated demonstration of SS.SA.0.
Watch the manufacturer training video.
