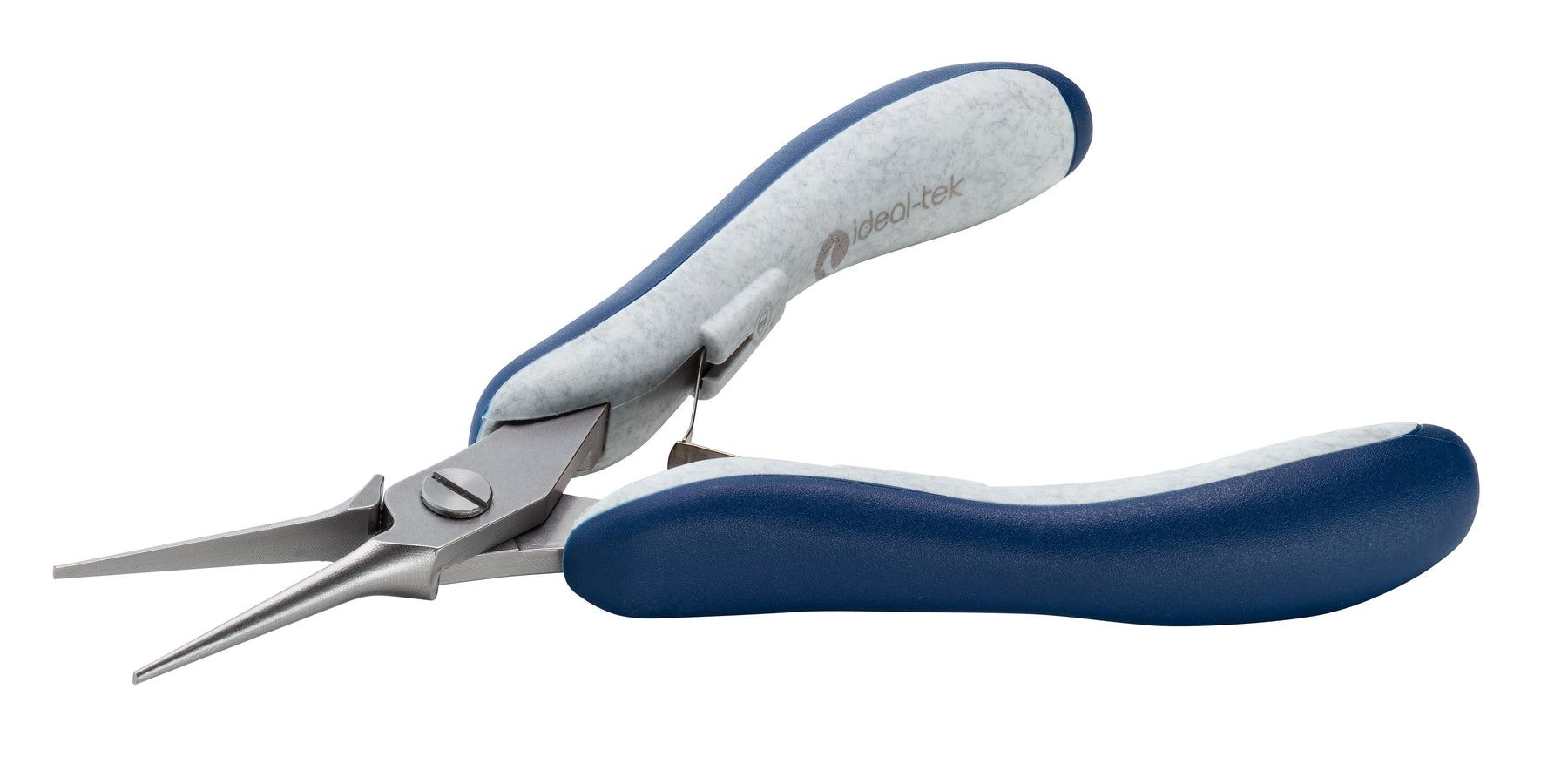

The 6025 is a high precision plier belonging to the needle nose plier family. The long needle jaw length improves access to micro areas and provides maximum visibility. The smooth surface on the jaw prevent scratches while holding. The 6025 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The jaws are hardened to 45HRC hardness.
| Category | High Precision Pliers |
| Reverse action | no |
| ESD safe | yes |
| Body material | 100Cr6 |
| Grip handle material | Ergo-tek Slim - TPE + PP |
| Body coating/ finishing | Sandblasted |

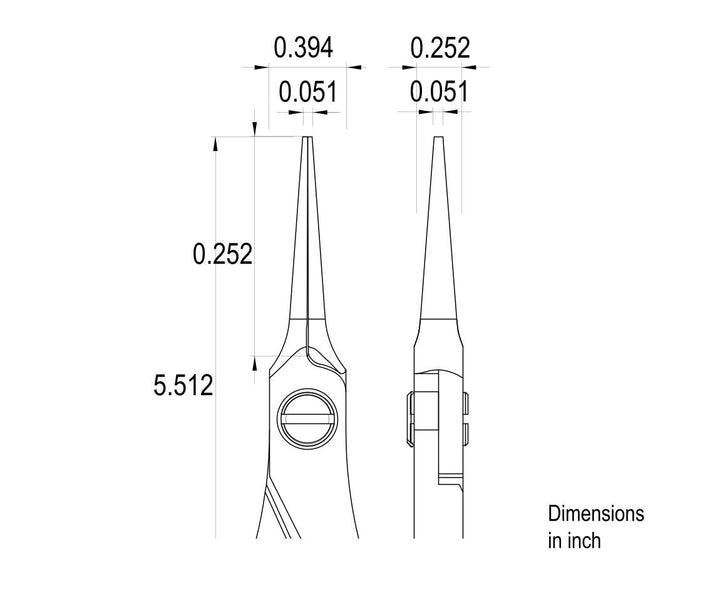

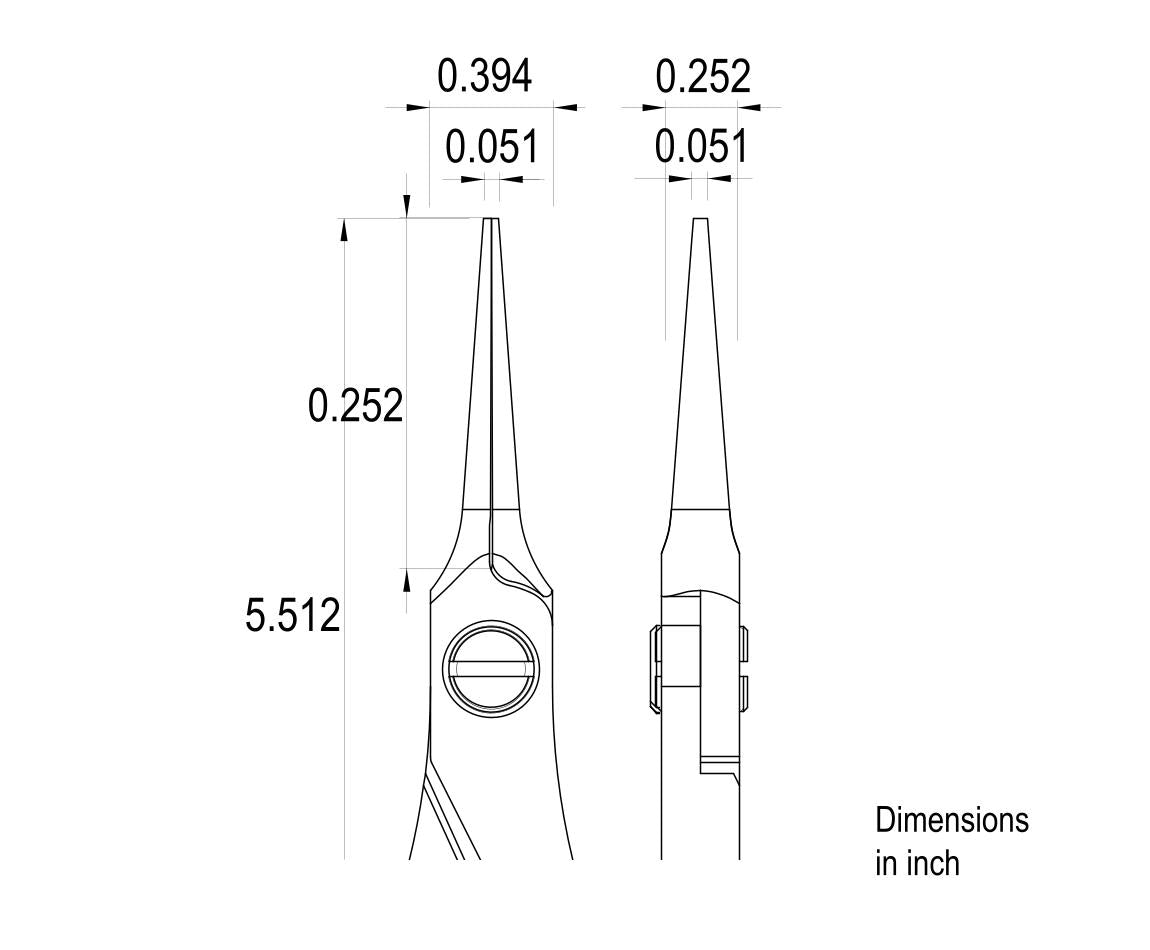

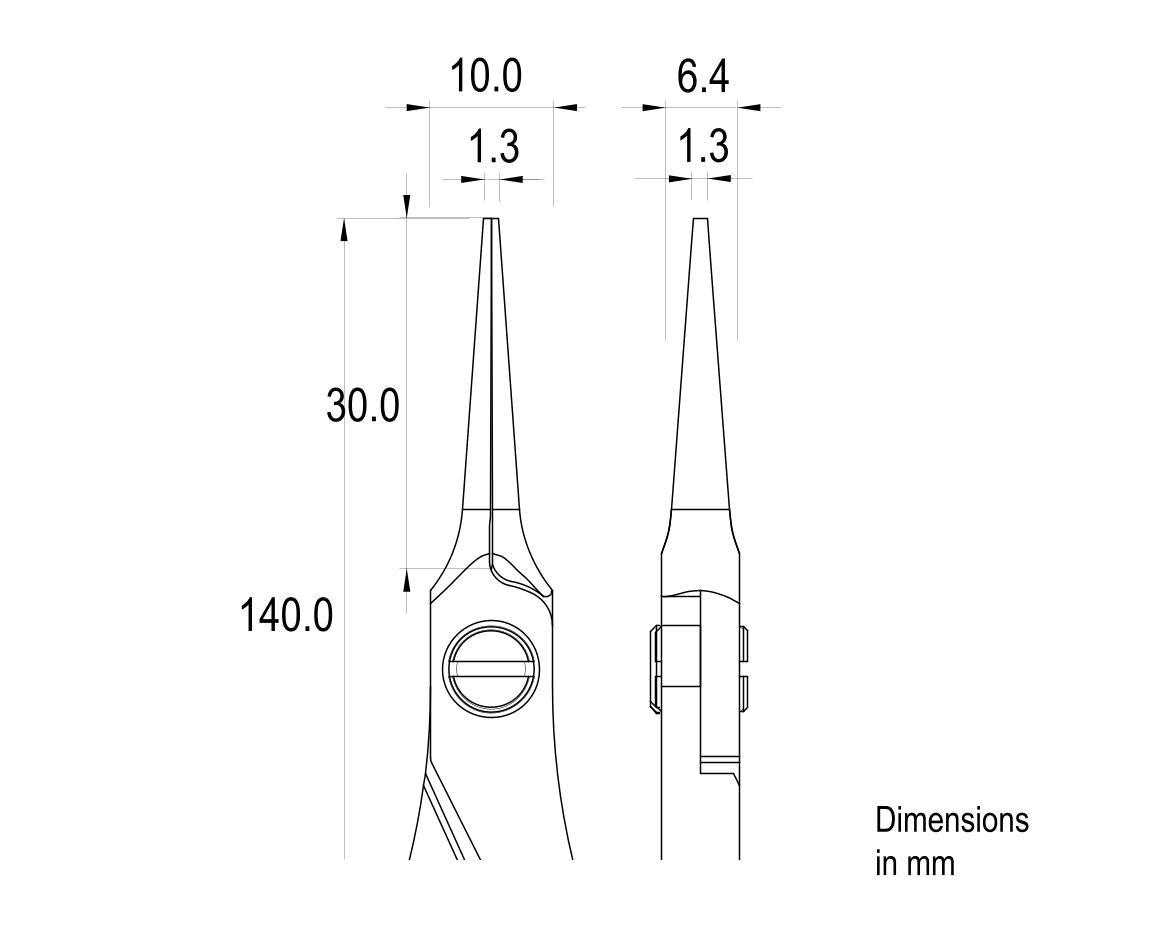

| Product width (mm - in) | 60.00 - 2.362 |
| Product height (mm - in) | 18.00 - 0.709 |
| Head shape | Needle Nose |
| Head width (mm - in) - C | 10.00 - 0.394 |
| Size/type | Long |

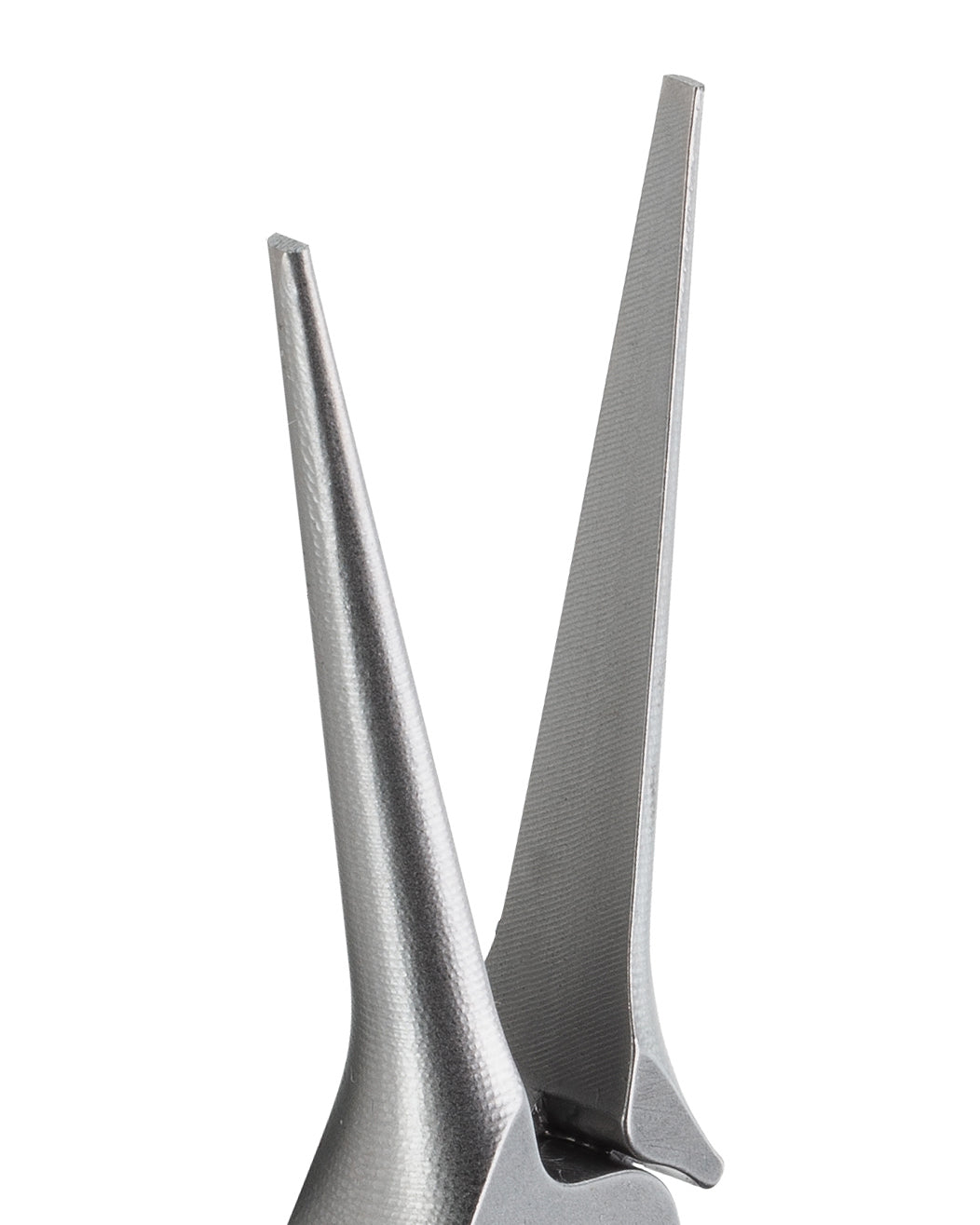

| Jaw (smooth/serrated) | Smooth |
| OAL (mm - in) - A | 140.00 - 5.512 |
| Head/Jaw length - B (mm - in) | 30.00 - 1.181 |
| Head thickness (mm - in) - D | 6.40 - 0.252 |
| Tip width - E (mm - in) | 1.30 - 0.051 |
| Tip thickness - F (mm - in) | 1.30 - 0.051 |
| Net weight (g-lb) | 83.0 - 0.183 |
| RoHS compliant | yes |
