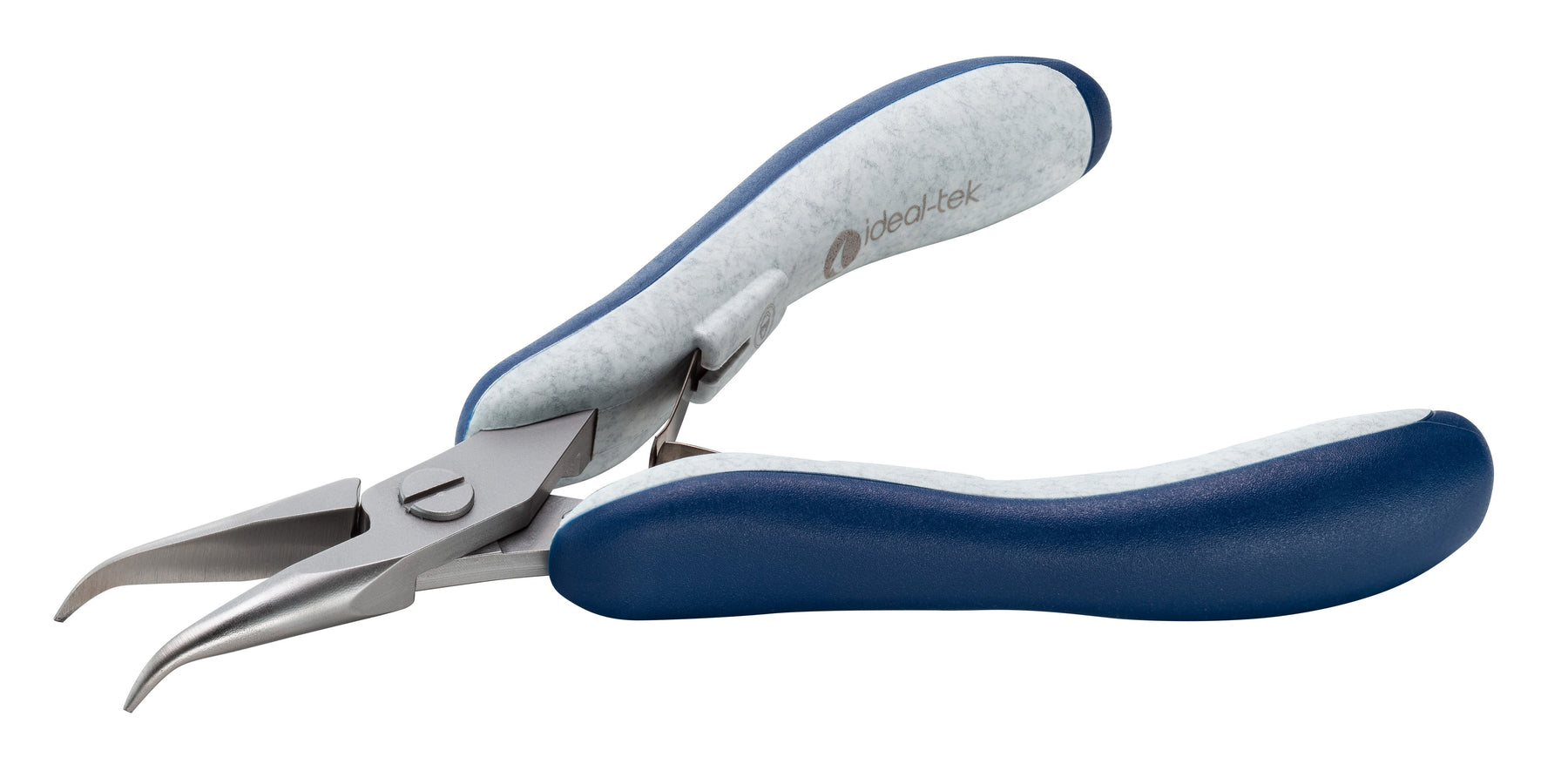

Ideal-tek ES6023B.CR.BG.ITU Ergo-tek Slim HP pliers 6023B, Bent Nose smooth, OAL 140mm, 5.51in

Ideal-tek SKU: ES6023B.CR.BG.ITU
Size
Price
Regular price $67.04
Regular price Sale price $67.04
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

Ideal-tek ES6023B.CR.BG.ITU Ergo-tek Slim HP pliers 6023B, Bent Nose smooth, OAL 140mm, 5.51in

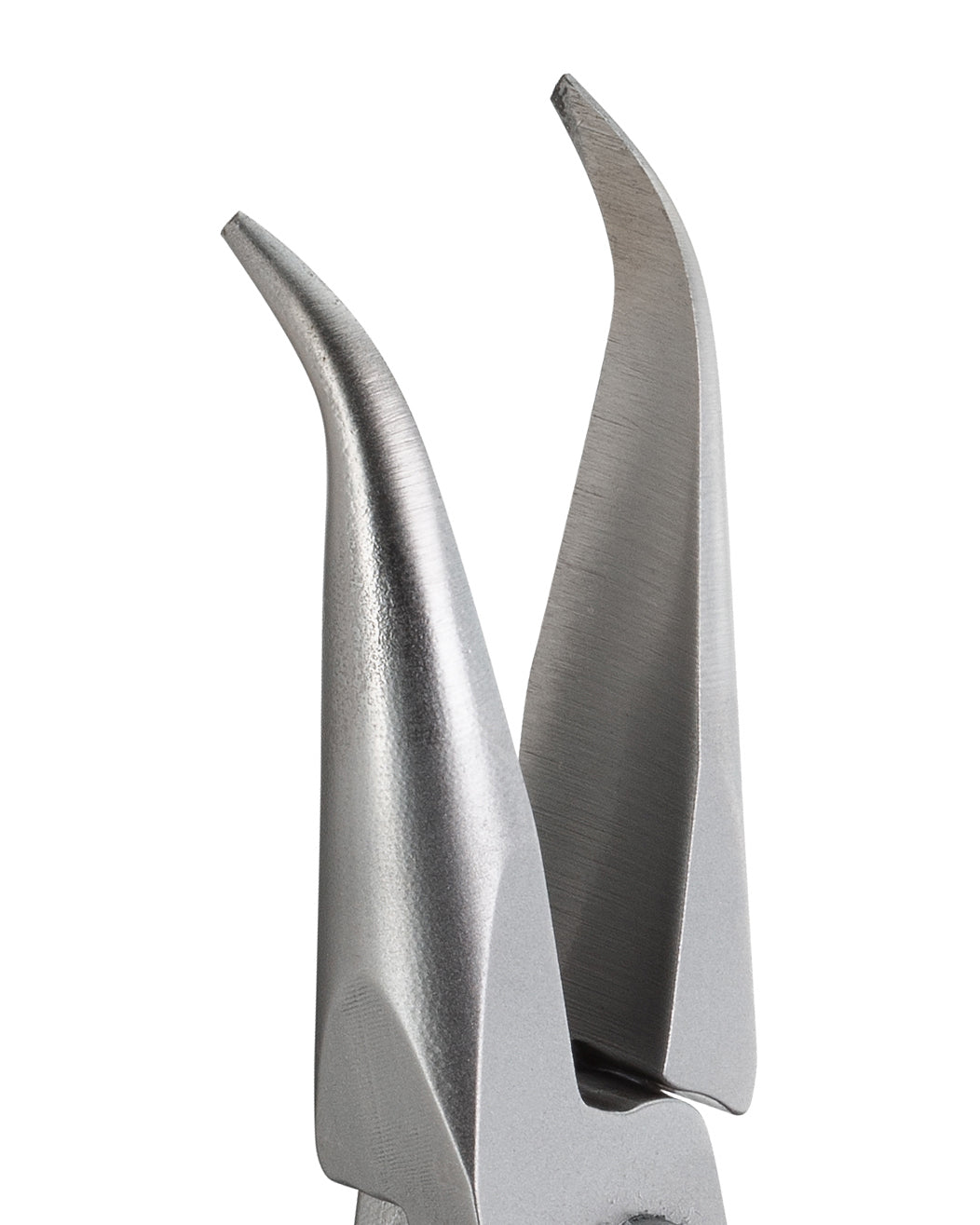

The 6023B is a high precision plier belonging to the long snipe nose plier family. The long bent jaw length improves the ease of the hold . The curved geometry provides maximum visibility. The smooth surface on the jaw prevents scratches while holding. The 6023B is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The jaw are hardened to 45HRC hardness.

Category High Precision Pliers
Reverse action no
ESD safe yes
Body material 100Cr6
Grip handle material Ergo-tek Slim - TPE + PP
Body coating/ finishing Sandblasted
Product width (mm - in) 60.00 - 2.362
Product height (mm - in) 18.00 - 0.709
Degree of bending 60.0
Head shape Bent Nose
Head width (mm - in) - C 10.00 - 0.394
Size/type Bent
Jaw (smooth/serrated) Smooth

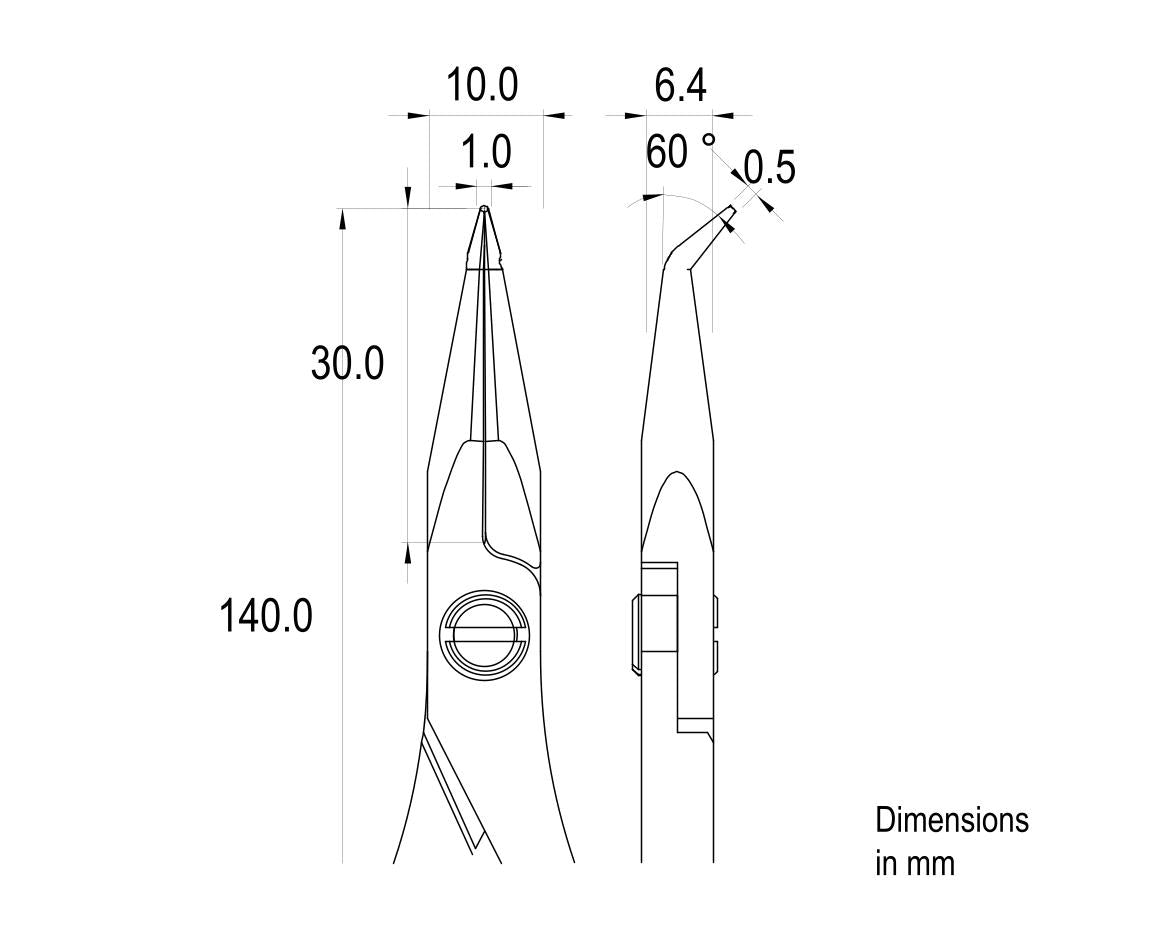

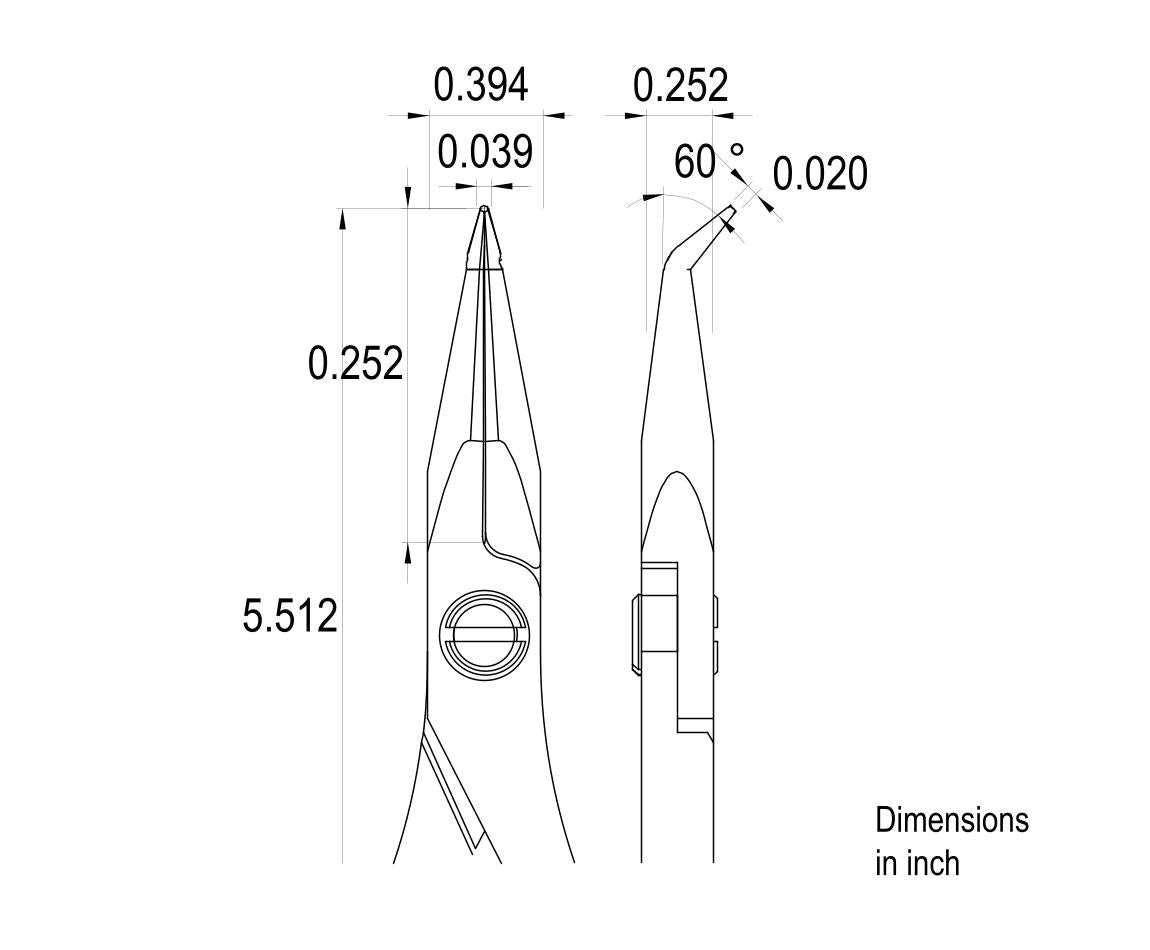

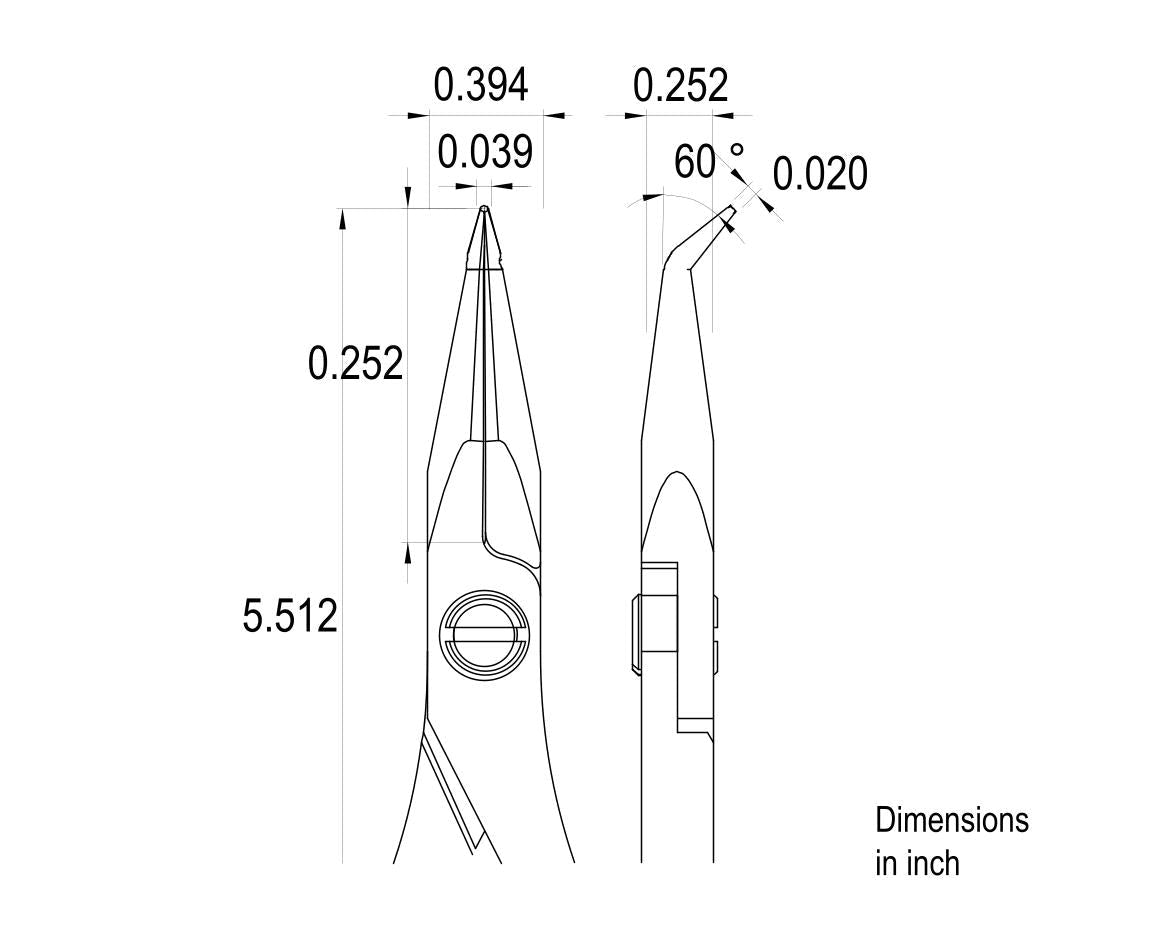

OAL (mm - in) - A 140.00 - 5.512
Head/Jaw length - B (mm - in) 30.00 - 1.181
Head thickness (mm - in) - D 6.40 - 0.252
Tip width - E (mm - in) 1.00 - 0.039
Tip thickness - F (mm - in) 0.50 - 0.02
Net weight (g-lb) 80.0 - 0.176
RoHS compliant yes
