IDEAL-TEK ES5540.CR.BG.ITU Ergo-Tek Slim HP Cutters 5540,Small Tapered Relieved Semi-Flush,OAL 120mm-4.72in

Ideal-Tek SKU: ES5540.CR.BG.ITU
Price
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

IDEAL-TEK ES5540.CR.BG.ITU Ergo-Tek Slim HP Cutters 5540,Small Tapered Relieved Semi-Flush,OAL 120mm-4.72in

High Precision Cutters ES5540.CR.BG

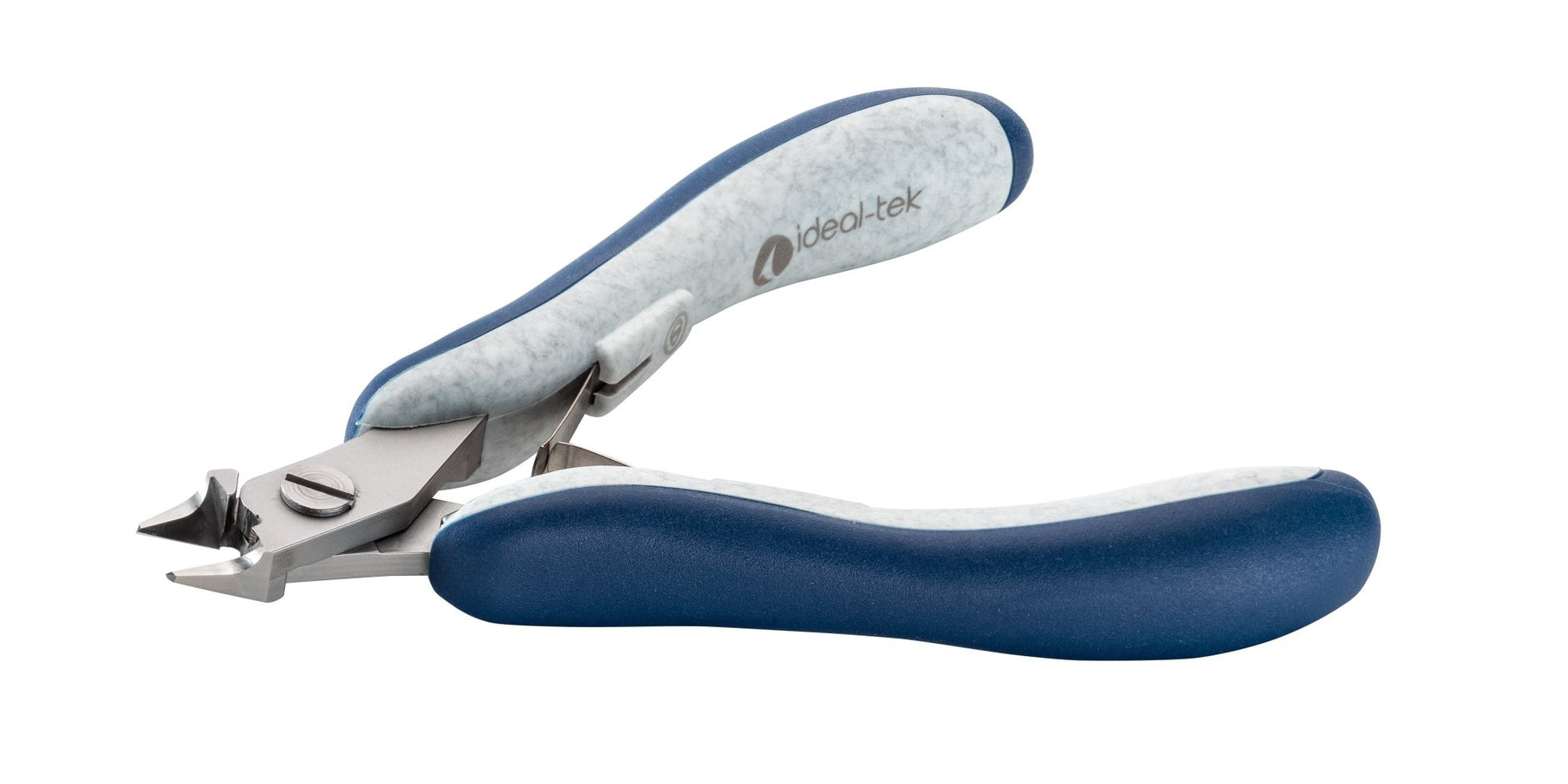

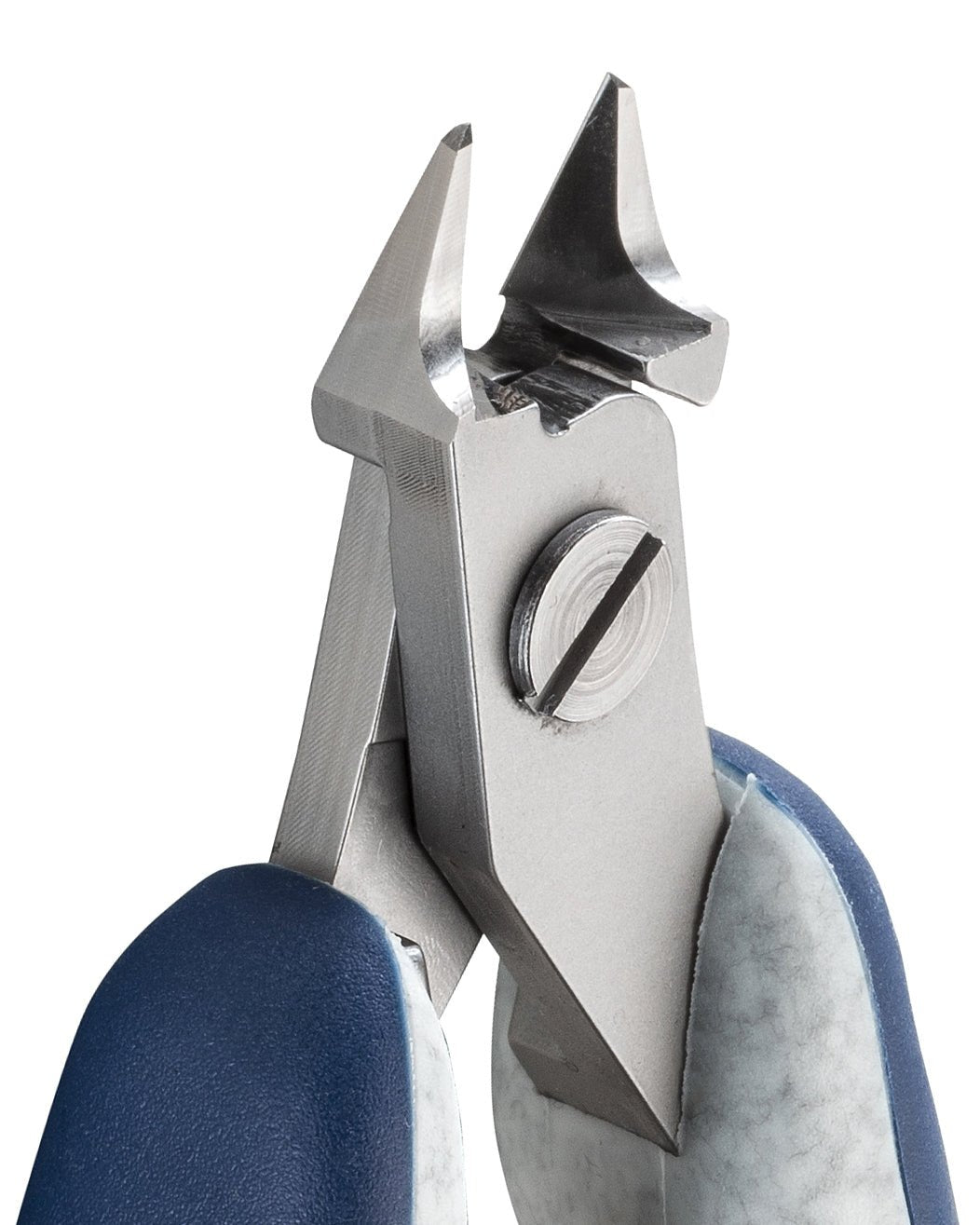

High precision Ergo-tek Slim Cutters - Small Tapered & Relieved head, semi-flush. OAL: 120mm - 4.72". ESD safe

The 5540 is a high precision cutter belonging to the small tapered and relieved cutter family. This type of geometry and head dimensions offer the best advantage to access small areas. The semi-flush cutting edge is suitable to perform robust cuts. The 5540 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

TDS
Grip Handle TDS
Body Material TDS

Product Details
Category
High Precision Cutters
Reverse action
no
ESD safe
yes
Body material
100Cr6
Grip handle material
Ergo-tek Slim - TPE + PP
Body coating/ finishing
Sandblasted
Product width (mm - in)
60.00 - 2.362
Product height (mm - in)
18.00 - 0.709
Head shape
Tapered & Relieved
Head width (mm - in) - C
10.00 - 0.394
Size/type
Small
Cutting edges
Semi-Flush
OAL (mm - in) - A
120.00 - 4.724
Head/Jaw length - B (mm - in)
9.00 - 0.354
Head thickness (mm - in) - D
6.40 - 0.252
Tip thickness - F (mm - in)
0.30 - 0.012
Cutting capacity soft (mm)
0.20-1.20
Cutting capacity soft (AWG)
32-17
Cutting capacity medium (mm)
0.10-1.00
Cutting capacity medium (AWG)
38-18
Net weight (g-lb)
81.0 - 0.179
RoHS compliant
yes
