IDEAL-TEK ES5351.CR.BG.ITU Ergo-Tek Slim HP Cutters 5351,Large Tapered Flush,OAL 125mm-4.92in

Ideal-Tek SKU: ES5351.CR.BG.ITU
Price
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

IDEAL-TEK ES5351.CR.BG.ITU Ergo-tek Slim HP cutters 5351, Large Tapered Flush, OAL 125mm-4.92in

High Precision Cutters ES5351.CR.BG

High precision Ergo-tek Slim Cutters - Large Tapered head, flush. OAL: 125mm - 4.92". ESD safe

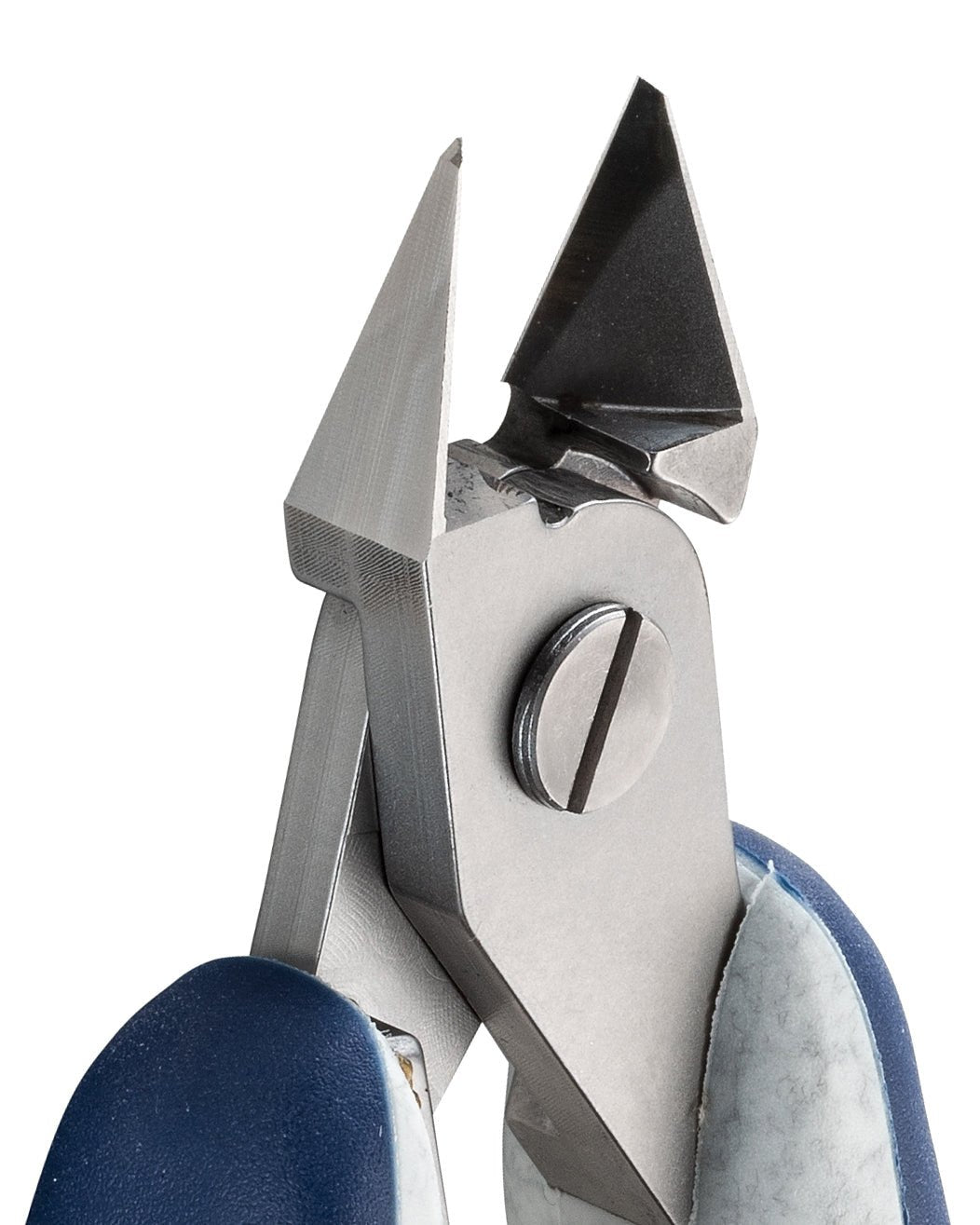

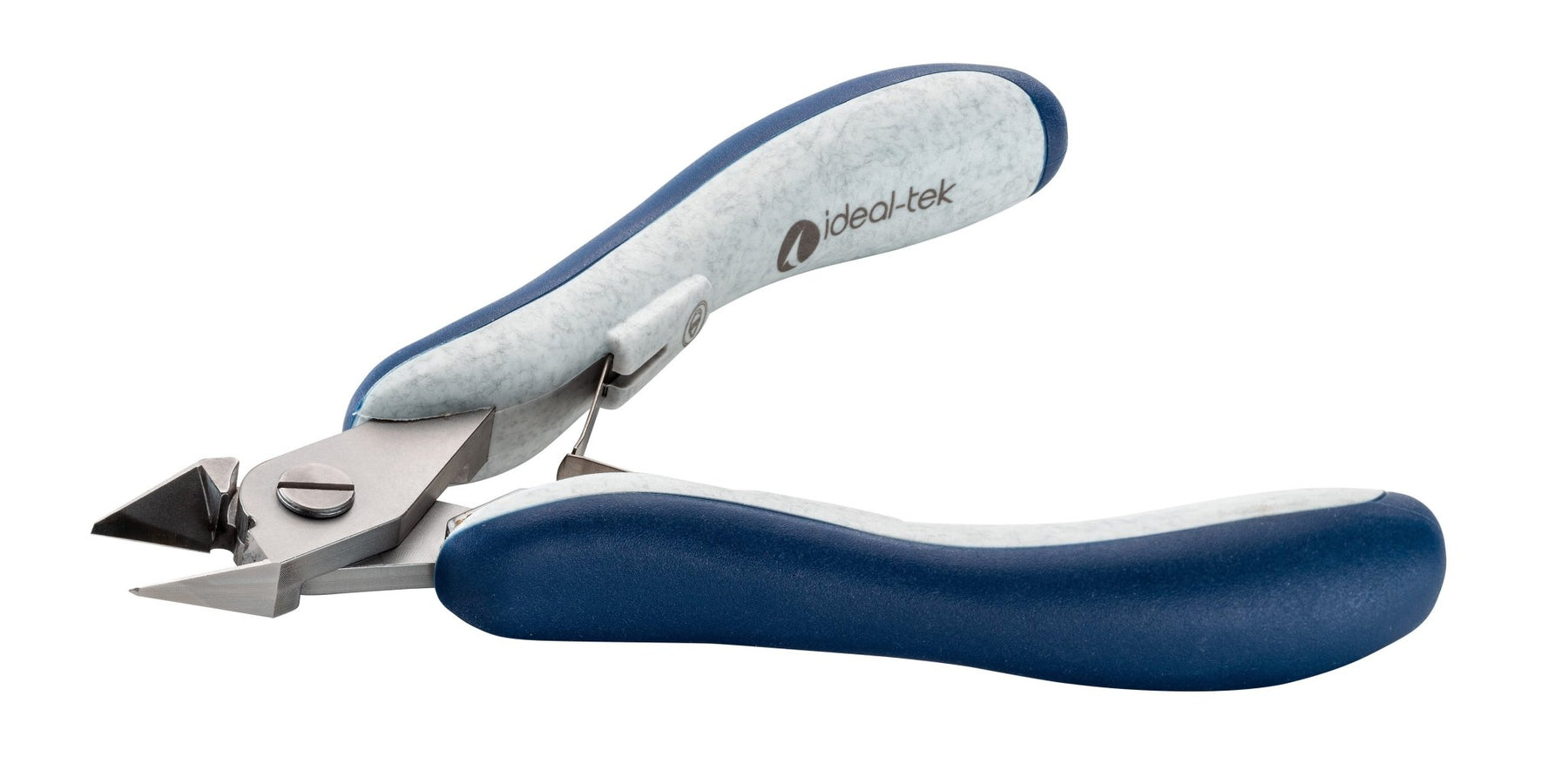

The 5351 is a high precision cutter belonging to the large tapered cutter family. This type of geometry and head dimensions offer an advantage to support the cut. The flush cutting edge is suitable to perform clean cuts with some tolerances. The 5351 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

TDS
Grip Handle TDS
Body Material TDS

Product Details
Category
High Precision Cutters
Reverse action
no
ESD safe
yes
Body material
100Cr6
Grip handle material
Ergo-tek Slim - TPE + PP
Body coating/ finishing
Sandblasted
Product width (mm - in)
60.00 - 2.362
Product height (mm - in)
18.00 - 0.709
Head shape
Tapered
Head width (mm - in) - C
12.00 - 0.472
Size/type
Large
Cutting edges
Flush
OAL (mm - in) - A
125.00 - 4.921
Head/Jaw length - B (mm - in)
12.00 - 0.472
Head thickness (mm - in) - D
6.40 - 0.252
Tip thickness - F (mm - in)
0.20 - 0.008
Cutting capacity soft (mm)
0.20-1.60
Cutting capacity soft (AWG)
32-14
Cutting capacity medium (mm)
0.10-1.10
Cutting capacity medium (AWG)
38-18
Net weight (g-lb)
85.0 - 0.187
RoHS compliant
yes
