IDEAL-TEK ES5161L.CR.BGS.ITU Ergo-Tek Slim HP Cutters 5161L,XL Rounded Oval Flush, OAL 125mm-4.92in

Ideal-Tek SKU: ES5161L.CR.BGS.ITU
Price
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

IDEAL-TEK ES5161L.CR.BGS.ITU Ergo-Tek Slim HP Cutters 5161L,XL Rounded Oval Flush, OAL 125mm-4.92in

High Precision Cutters ES5161L.CR.BGS

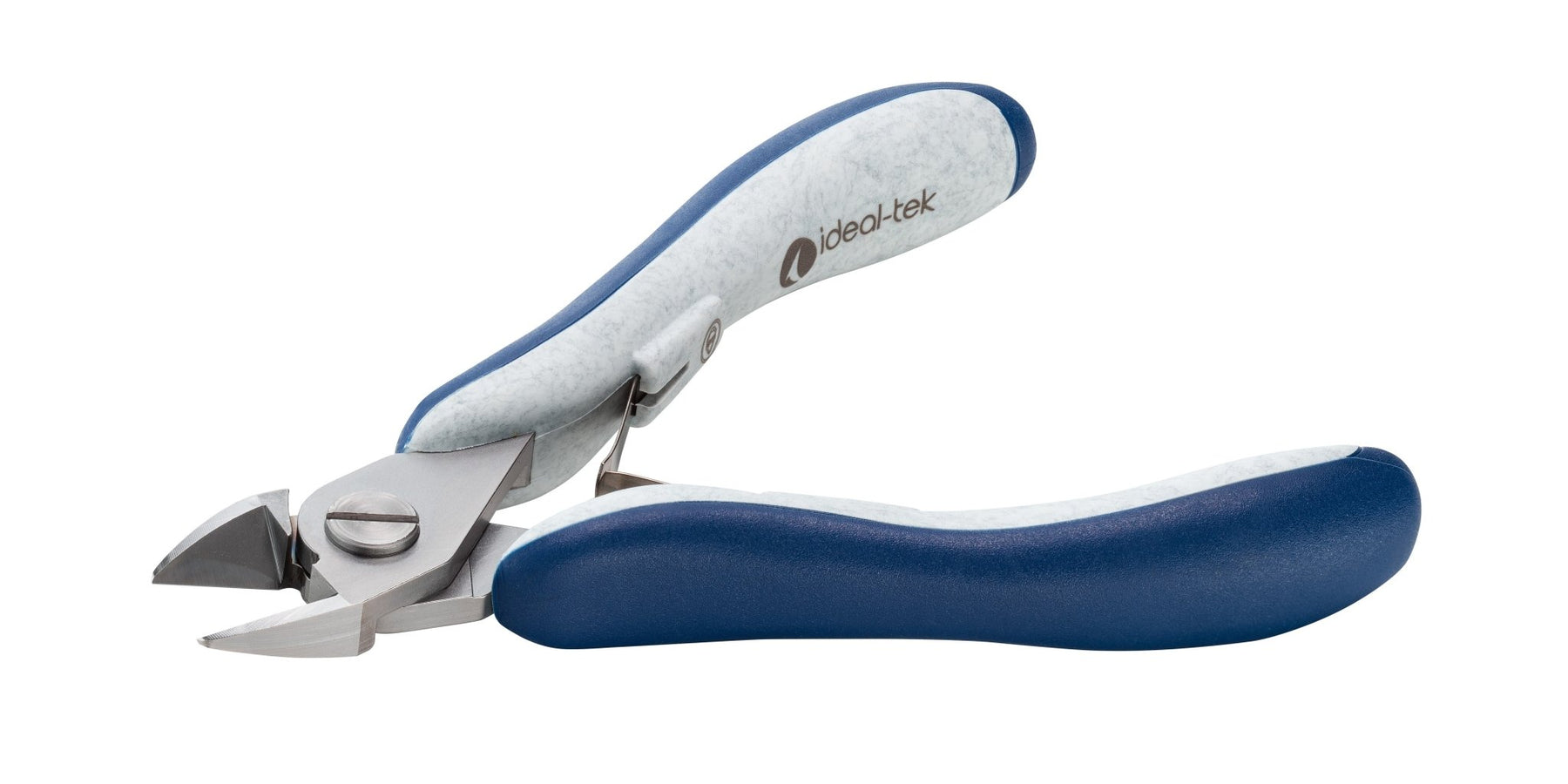

High precision Ergo-tek Slim Cutters - Extra Large Rounded Oval head, flush. OAL: 125mm - 4.92". ESD safe

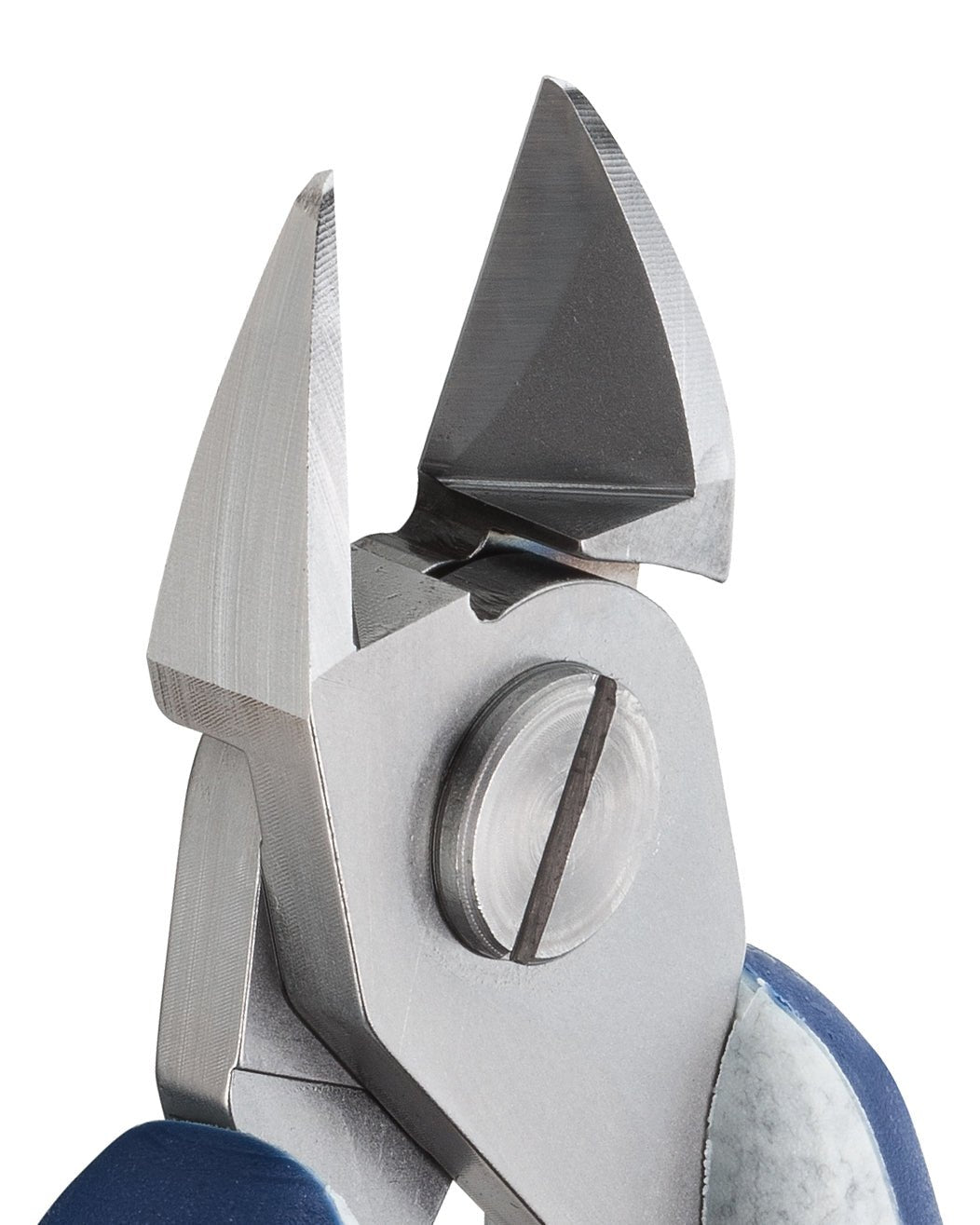

The 5161L is a high precision cutter belonging to the extra large oval cutter family. This type of geometry provides excellent resistance, while the 5161L head dimensions increase its cutting capacity. The flush cutting edge is suitable to perform clean cuts with some tolerances. The 5161L is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

TDS
Grip Handle TDS
Body Material TDS

Product Details
Category
High Precision Cutters
Reverse action
no
ESD safe
yes
Body material
100Cr6
Grip handle material
Ergo-tek Slim - TPE + PP
Body coating/ finishing
Sandblasted
Product width (mm - in)
60.00 - 2.362
Product height (mm - in)
18.00 - 0.709
Head shape
Oval
Head width (mm - in) - C
16.00 - 0.63
Size/type
Extra-Large Rounded
Cutting edges
Flush
OAL (mm - in) - A
125.00 - 4.921
Head/Jaw length - B (mm - in)
13.00 - 0.512
Head thickness (mm - in) - D
6.40 - 0.252
Tip thickness - F (mm - in)
0.40 - 0.016
Cutting capacity soft (mm)
0.40-2.50
Cutting capacity soft (AWG)
26-10
Cutting capacity medium (mm)
0.40-2.30
Cutting capacity medium (AWG)
26-11
Net weight (g-lb)
88.0 - 0.194
RoHS compliant
yes
