IDEAL-TEK ES141TX.CR.BGO.ITU Ergo-tek Slim Tungsten Carb Cutters 141TX,Small Oval Flush,OAL 120mm-4.72in

Ideal-Tek SKU: ES141TX.CR.BGO.ITU
Price
Regular price $176.72
Regular price Sale price $176.72
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

IDEAL-TEK ES141TX.CR.BGO.ITU Ergo-tek Slim Tungsten Carb Cutters,Small Oval Flush,OAL 120mm-4.72in

Tungsten Carbide Cutters ES141TX.CR.BGO

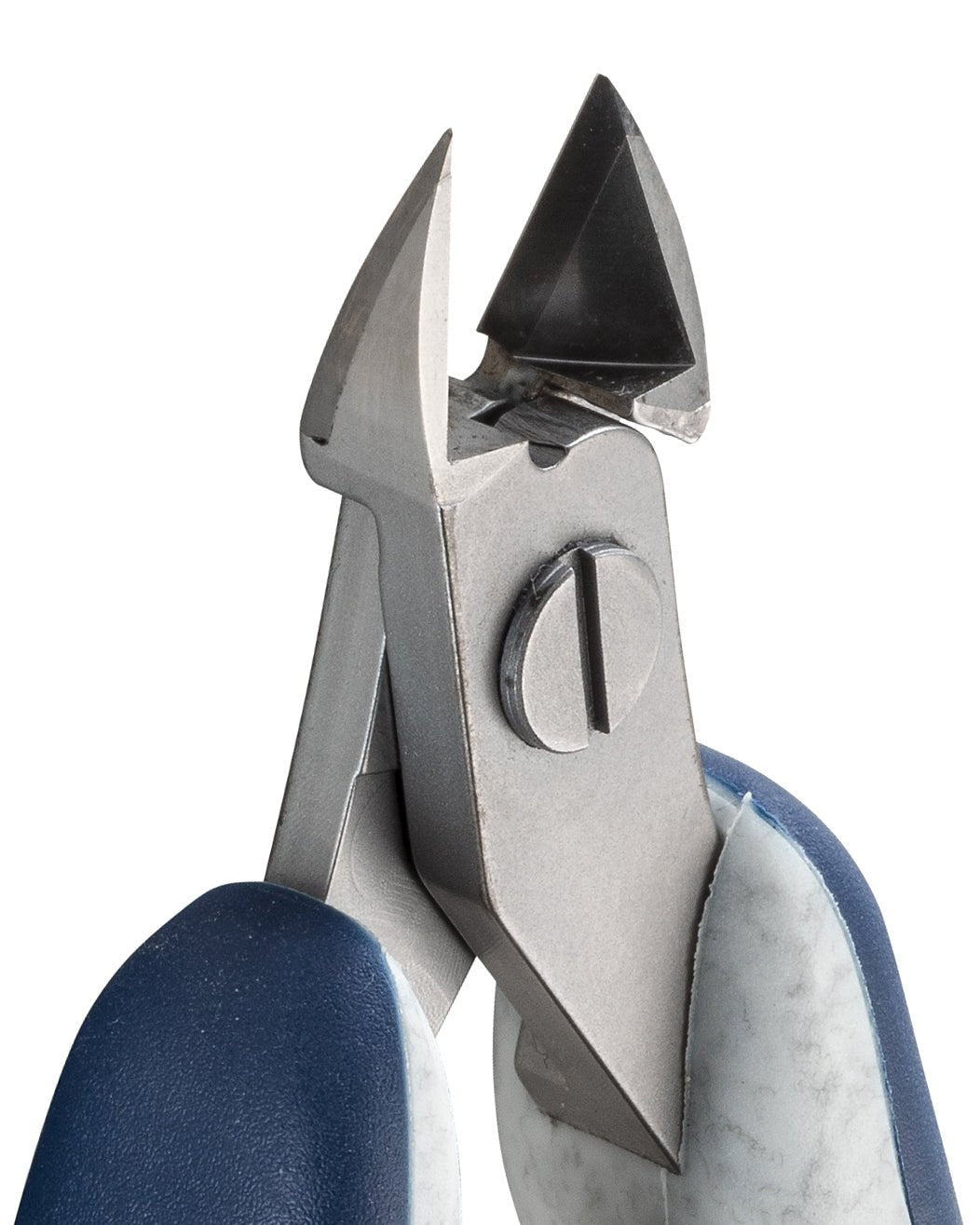

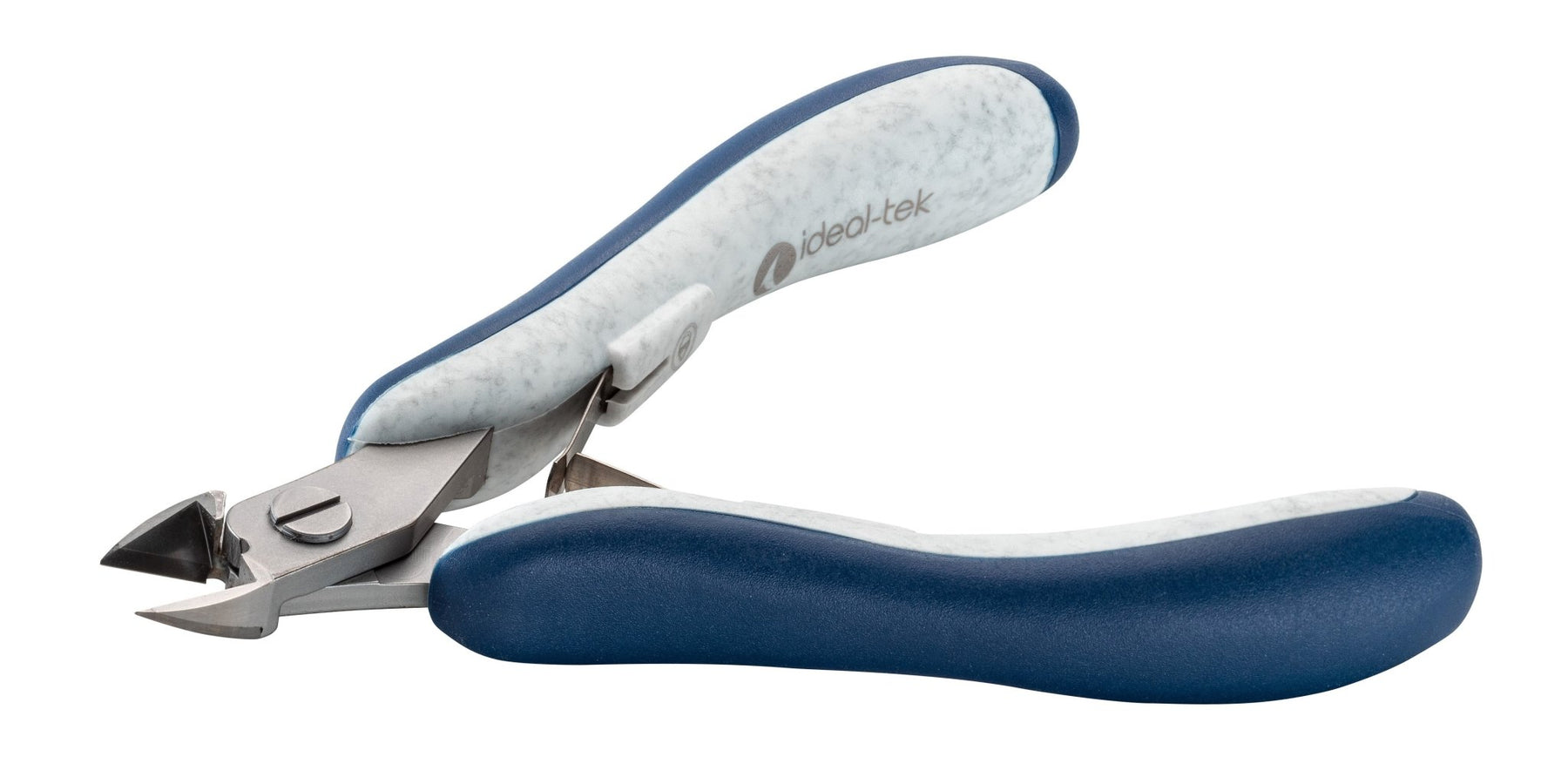

High precision Ergo-tek Slim Tungsten carbide Cutters - Small Oval head, Tungsten carbide tips, flush - open springs. OAL: 120mm - 4.72", ESD safe


The 141TX is a high precision cutter belonging to the small Tungsten Carbide cutters family. The oval geometry provides excellent resistance, while the 141TX head dimensions offer the best advantage to access small areas. The short blade length transmits the operator's full cutting force. The flush cutting edge is suitable to perform clean cuts on the hardest wires. The 141TX is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The Tungsten Carbide insert blades are 82HRC hardness.

  • Engineered for hard wires
  • Tungsten carbide blades
  • 81 HRC hardness
  • Shock prevention system

TDS
Grip Handle TDS
Body Material TDS

Product Details
Category
Tungsten Carbide Cutters
Reverse action
no
ESD safe
yes
Body material
100Cr6
Tip material
TX
Grip handle material
Ergo-tek Slim - TPE + PP
Body coating/ finishing
Sandblasted
Product width (mm - in)
60.00 - 2.362
Product height (mm - in)
18.00 - 0.709
Head shape
Oval
Head width (mm - in) - C
10.00 - 0.394
Size/type
Small
Cutting edges
Flush
OAL (mm - in) - A
120.00 - 4.724
Head/Jaw length - B (mm - in)
9.50 - 0.374
Head thickness (mm - in) - D
6.40 - 0.252
Tip thickness - F (mm - in)
0.40 - 0.016
Cutting capacity hard (mm)
0.03-0.3
Cutting capacity hard (AWG)
48-28
Net weight (g-lb)
73.0 - 0.161
RoHS compliant
yes
