IIDEAL-TEK ES351TX.CR.BGO.ITU Ergo-tek Slim Tungsten Carb cutters 351TX,Large Tapered Flush

Ideal-Tek SKU: ES351TX.CR.BGO.ITU
Price
Regular price $176.72
Regular price Sale price $176.72
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

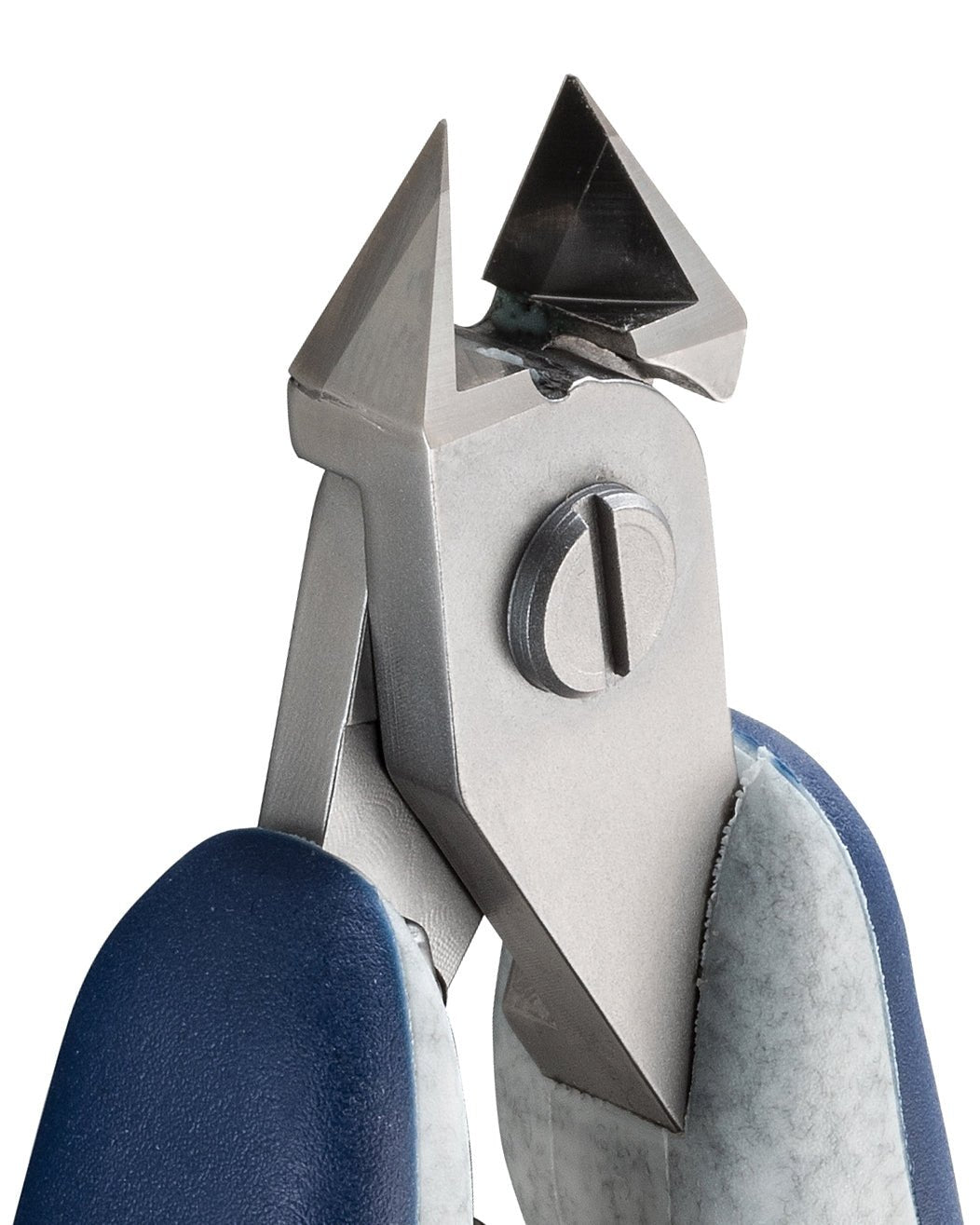

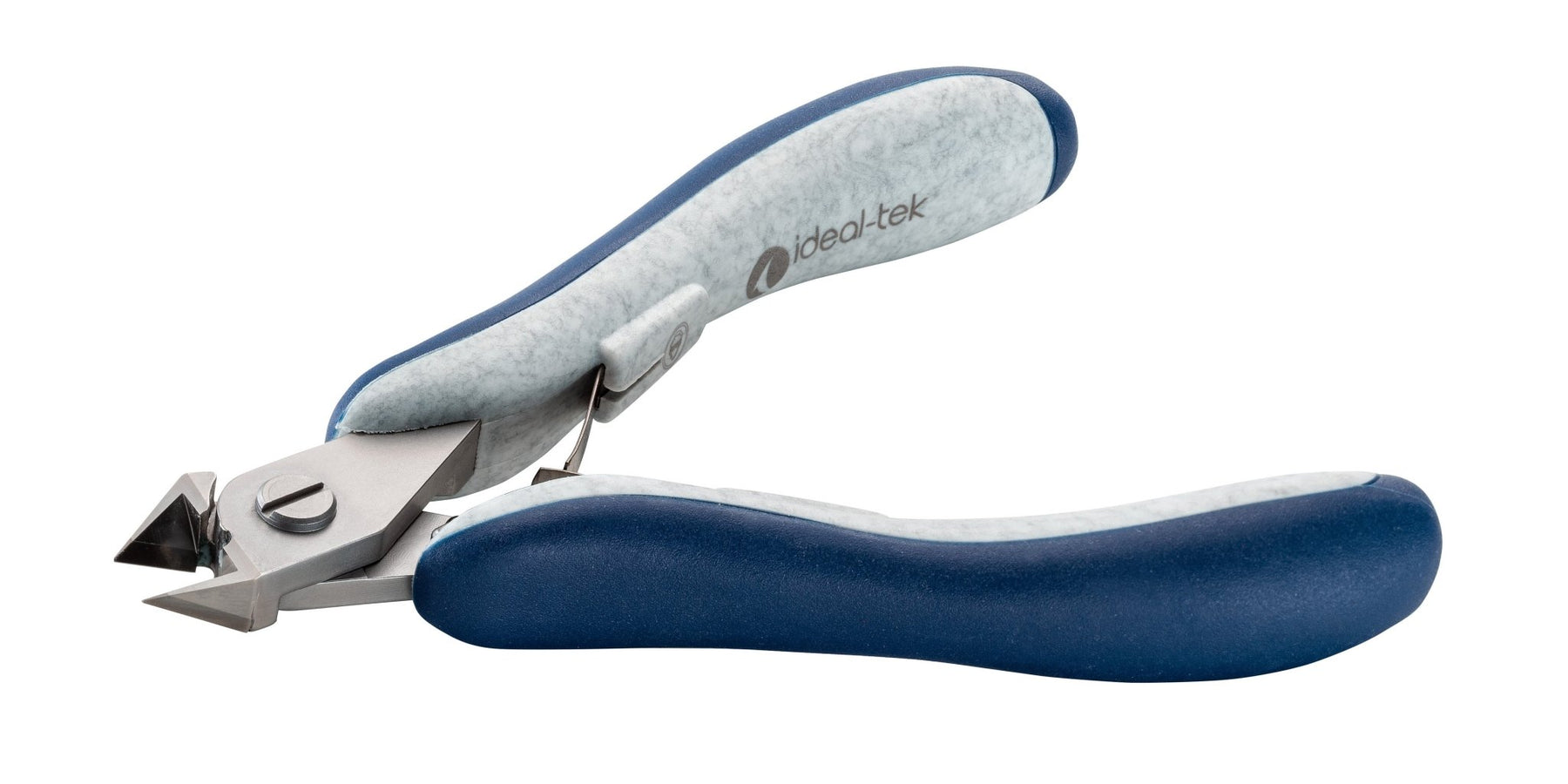

IDEAL-TEK ES351TX.CR.BGO.ITU Ergo-tek Slim Tungsten Carb cutters 351TX,Large Tapered flush,OAL 118mm-4.65in

High precision Ergo-tek Slim Tungsten carbide Cutters - Large Tapered head, Tungsten carbide tips, flush - open springs. OAL: 118mm - 4.65", ESD safe

The 351TX is a high precision cutter belonging to the large Tungsten Carbide cutters family. The tapered geometry facilitates the tips access to the working area, while the 351TX head dimensions support the cut. The short blade length transmits the operator's full cutting force. The flush cutting edge is suitable to perform clean cuts on the hardest wires. The 351TX is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The Tungsten Carbide insert blades are 82HRC hardness.

TDS
Grip Handle Material TDS
Body Material TDS

Product Details
Category
Tungsten Carbide Cutters
ESD safe
yes
Body material
100Cr6
Tip material
TX
Grip handle material
Ergo-tek Slim - TPE + PP
Body coating/ finishing
Sandblasted
Product width (mm - in)
60.00 - 2.362
Product height (mm - in)
18.00 - 0.709
Head shape
Tapered
Head width (mm - in) - C
12.00 - 0.472
Size/type
Large
Cutting edges
Flush
OAL (mm - in) - A
118.00 - 4.646
Head/Jaw length - B (mm - in)
7.50 - 0.295
Head thickness (mm - in) - D
6.40 - 0.252
Tip width - E (mm - in)
0.40 - 0.016
Tip thickness - F (mm - in)
0.30 - 0.012
Cutting capacity soft (mm)
0.10-0.60
Cutting capacity soft (AWG)
38-23
Cutting capacity medium (mm)
0.10-0.60
Cutting capacity medium (AWG)
38-23
Cutting capacity hard (mm)
0.03
Cutting capacity hard (AWG)
48
Net weight (g-lb)
75.0 - 0.165
RoHS compliant
yes
