IDEAL-TEKES5151.CR.BG.ITUErgo-tek Slim HP cutters 5151, Large Oval flush

Ideal-Tek SKU: ES5151.CR.BG.ITU
Price
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

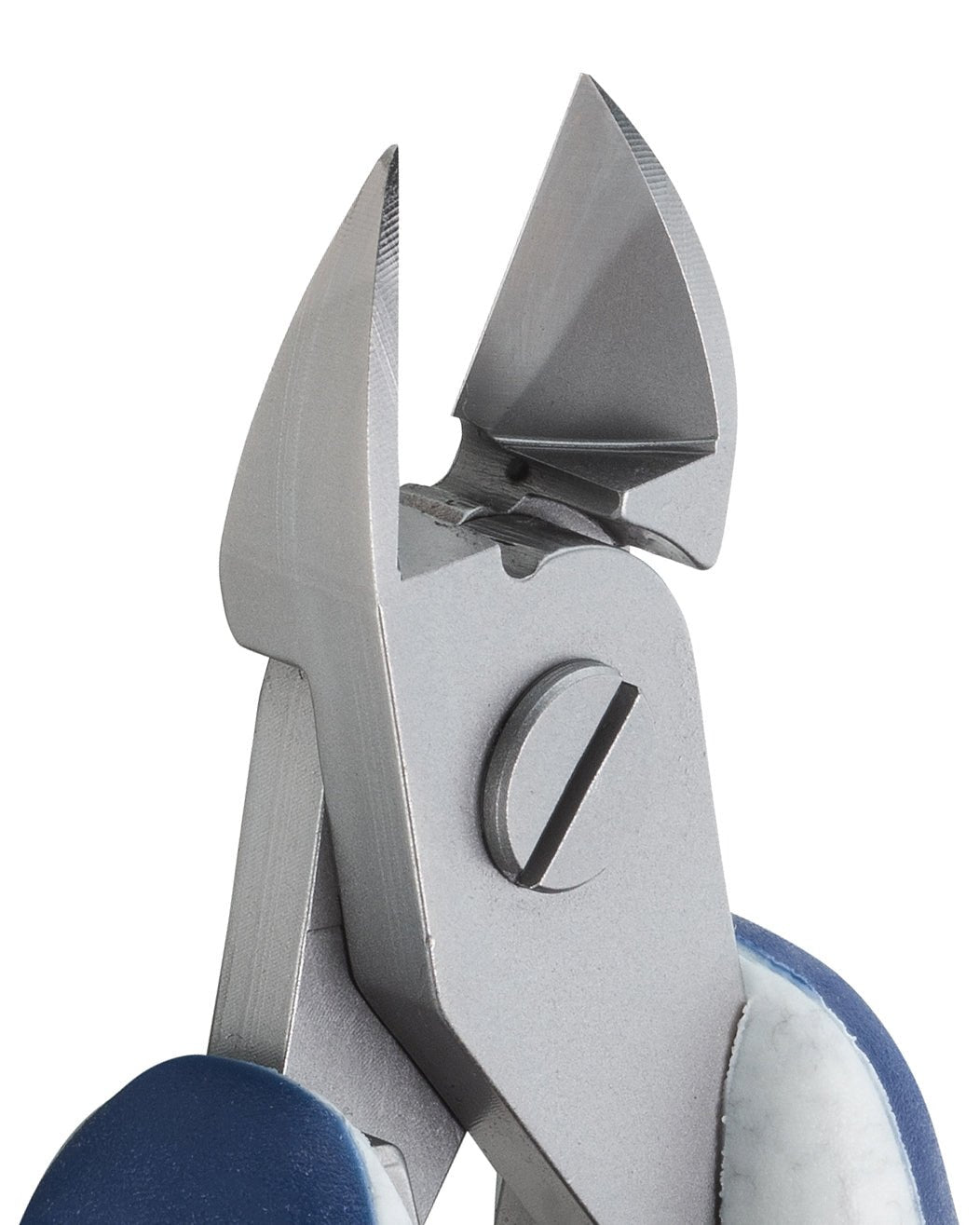

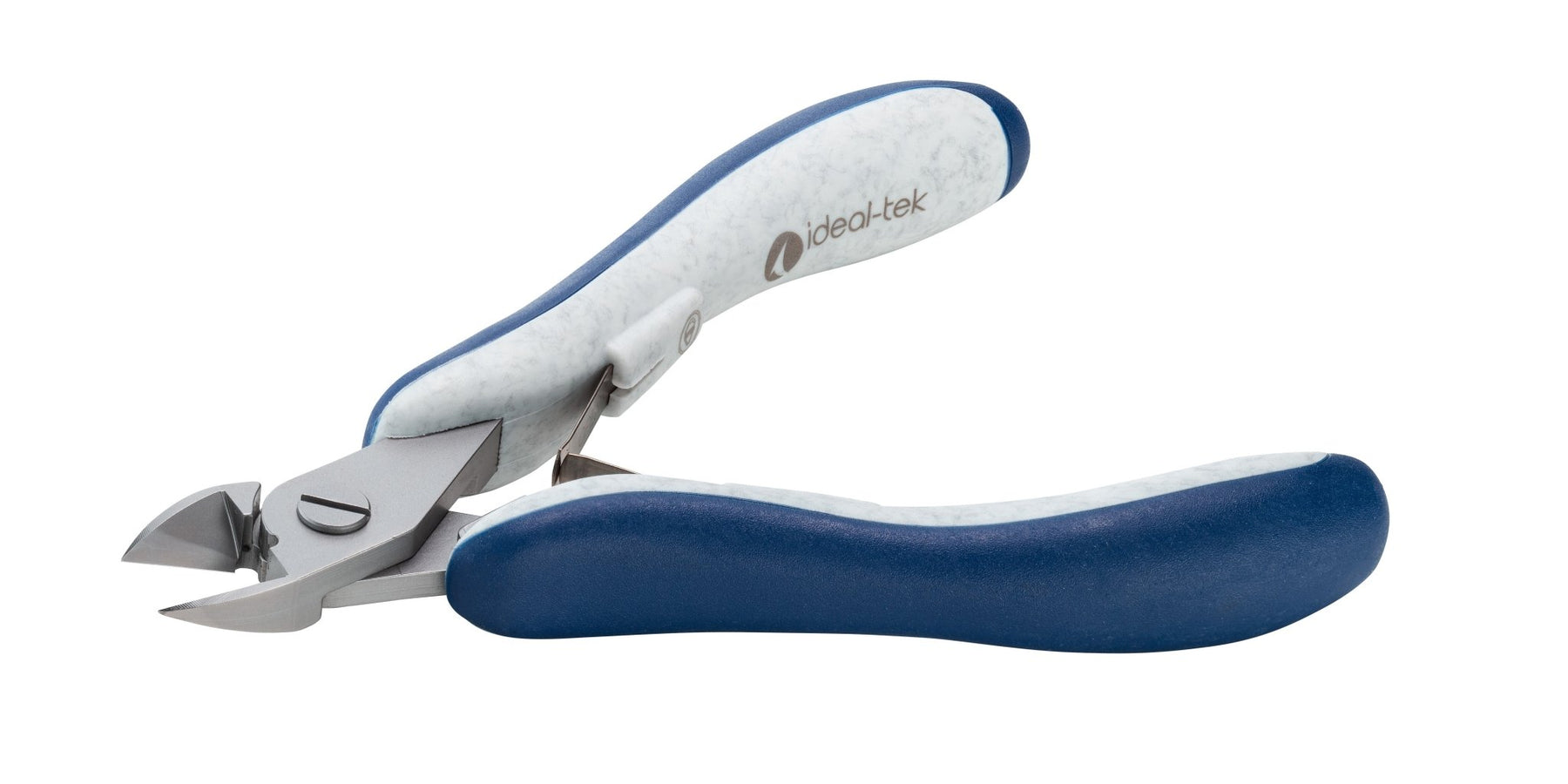

IDEAL-TEKES5151.CR.BG.ITU Ergo-tek Slim HP cutters 5151,Large Oval flush,OAL 125mm-4.92in ESD Safe

The 5151 is a high precision cutter belonging to the large oval cutter family. This type of geometry provides excellent resistance, while the 5151 head dimensions support the cut. The flush cutting edge is suitable to perform clean cuts with some tolerances. The 5151 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

TDS
Grip Handle Material TDS
Body Material TDS

Product Details
Category
High Precision Cutters
ESD safe
yes
Body material
100Cr6
Grip handle material
Ergo-tek Slim - TPE + PP
Body coating/ finishing
Sandblasted
Product width (mm - in)
60.00 - 2.362
Product height (mm - in)
18.00 - 0.709
Head shape
Oval
Head width (mm - in) - C
12.00 - 0.472
Size/type
Large
Cutting edges
Flush
OAL (mm - in) - A
125.00 - 4.921
Head/Jaw length - B (mm - in)
12.00 - 0.472
Head thickness (mm - in) - D
6.40 - 0.252
Tip thickness - F (mm - in)
0.30 - 0.012
Cutting capacity soft (mm)
0.20-1.60
Cutting capacity soft (AWG)
32-14
Cutting capacity medium (mm)
0.10-1.20
Cutting capacity medium (AWG)
38-17
Net weight (g-lb)
85.0 - 0.187
RoHS compliant
yes
