IDEAL-TEK ES5140.CR.BG.ITU Ergo-tek Slim HP Cutters Small Oval Semi-Flush

Ideal-Tek SKU: ES5140.CR.BG.ITU
Price
Regular price $76.46
Regular price Sale price $76.46
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

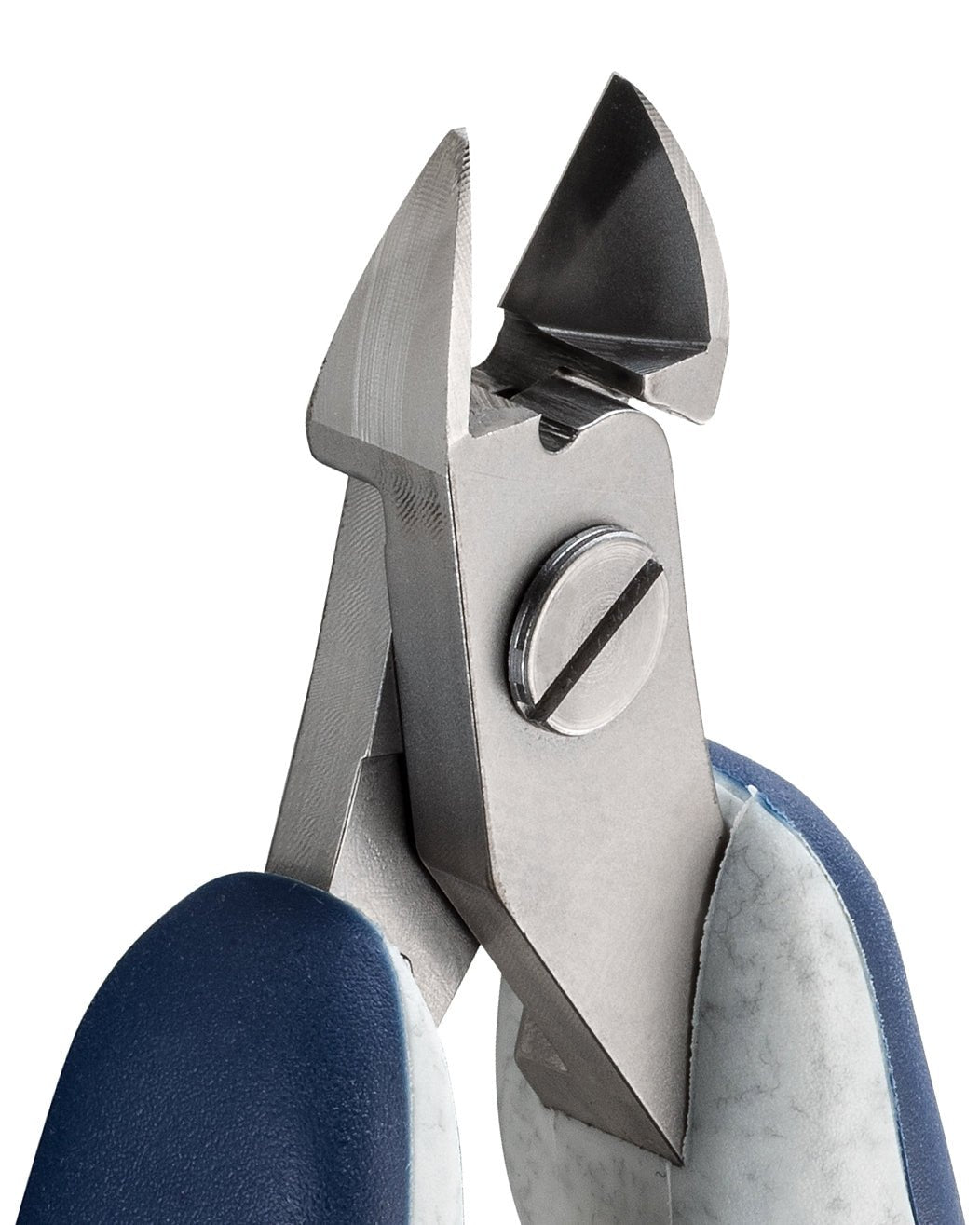

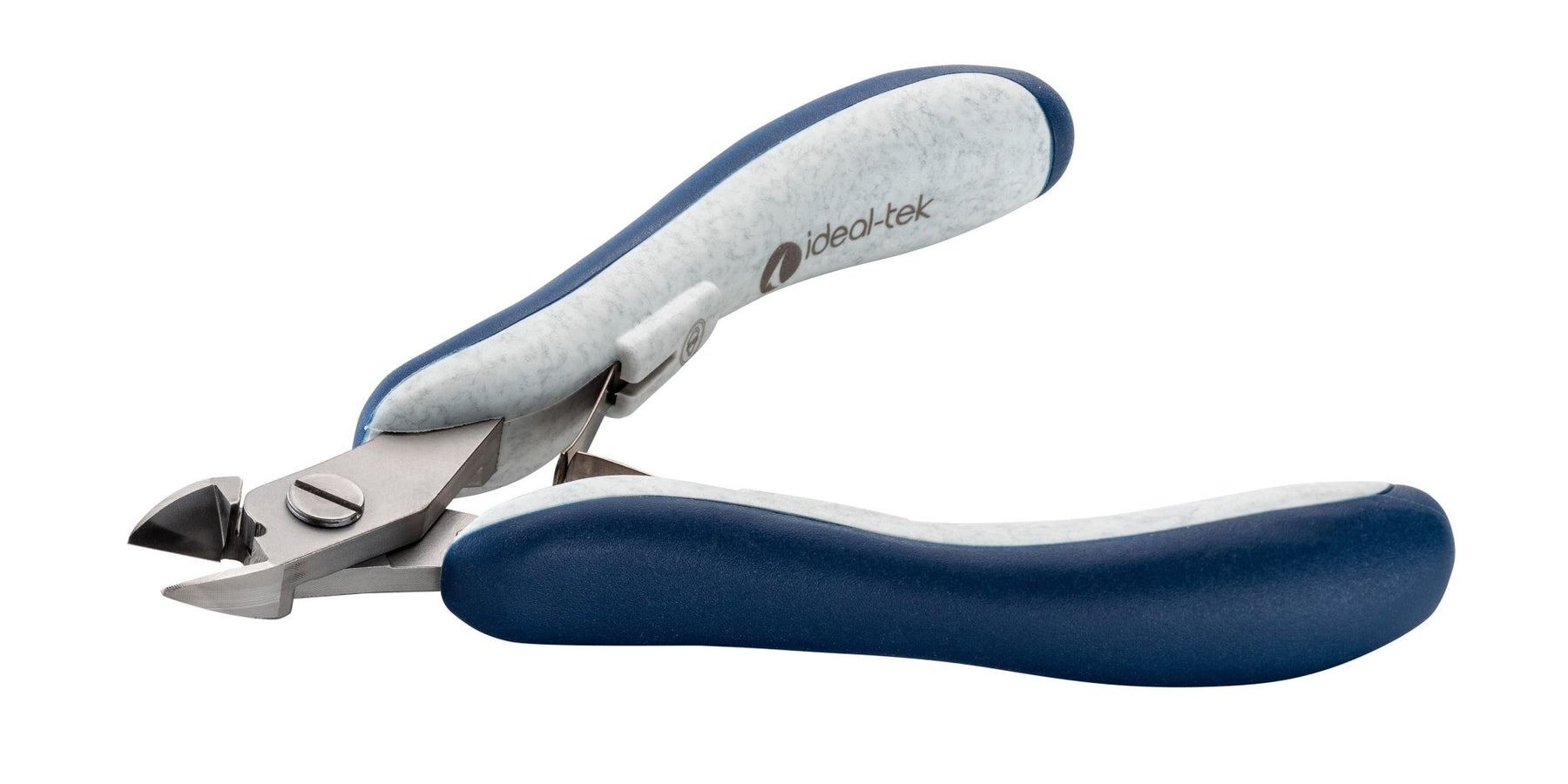

IDEAL-TEK ES5140.CR.BG.ITU Ergo-tek Slim HP Cutters Small Oval Semi-Flush

High precision Ergo-tek Slim Cutters - Small Oval head, semi-flush. OAL: 120mm - 4.72". ESD safe

The 5140 is a high precision cutter belonging to the small oval cutter family. This type of geometry provides excellent resistance, while the 5140 head dimensions allow to access small areas. The semi-flush cutting edge is suitable to perform robust cuts. The 5140 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

TDS
Grip Handle Material TDS
Body Material TDS

Product Details
Category
High Precision Cutters
ESD safe
yes
Body material
100Cr6
Grip handle material
Ergo-tek Slim - TPE + PP
Body coating/ finishing
Sandblasted
Product width (mm - in)
60.00 - 2.362
Product height (mm - in)
18.00 - 0.709
Head shape
Oval
Head width (mm - in) - C
10.00 - 0.394
Size/type
Small
Cutting edges
Semi-Flush
OAL (mm - in) - A
120.00 - 4.724
Head/Jaw length - B (mm - in)
9.00 - 0.354
Head thickness (mm - in) - D
6.40 - 0.252
Tip thickness - F (mm - in)
0.60 - 0.024
Cutting capacity soft (mm)
0.20-1.20
Cutting capacity soft (AWG)
32-17
Cutting capacity medium (mm)
0.10-1.00
Cutting capacity medium (AWG)
38-18
Cutting capacity hard (mm)
0.03-0.60
Cutting capacity hard (AWG)
48-23
Net weight (g-lb)
82.0 - 0.181
RoHS compliant
yes
