Ideal-tek A8WLCP Tips: handling 6in, top lip, stepped bottom paddle (for #8WLCPRSG.SA Tweezers). OAL: 40mm, 1.57in

Ideal-tek SKU: A8WLCP
Size
Price
Regular price $16.61
Regular price Sale price $16.61
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

Ideal-tek A8WLCP Tips: handling 6in, top lip, stepped bottom paddle (for #8WLCPRSG.SA Tweezers). OAL: 40mm, 1.57in

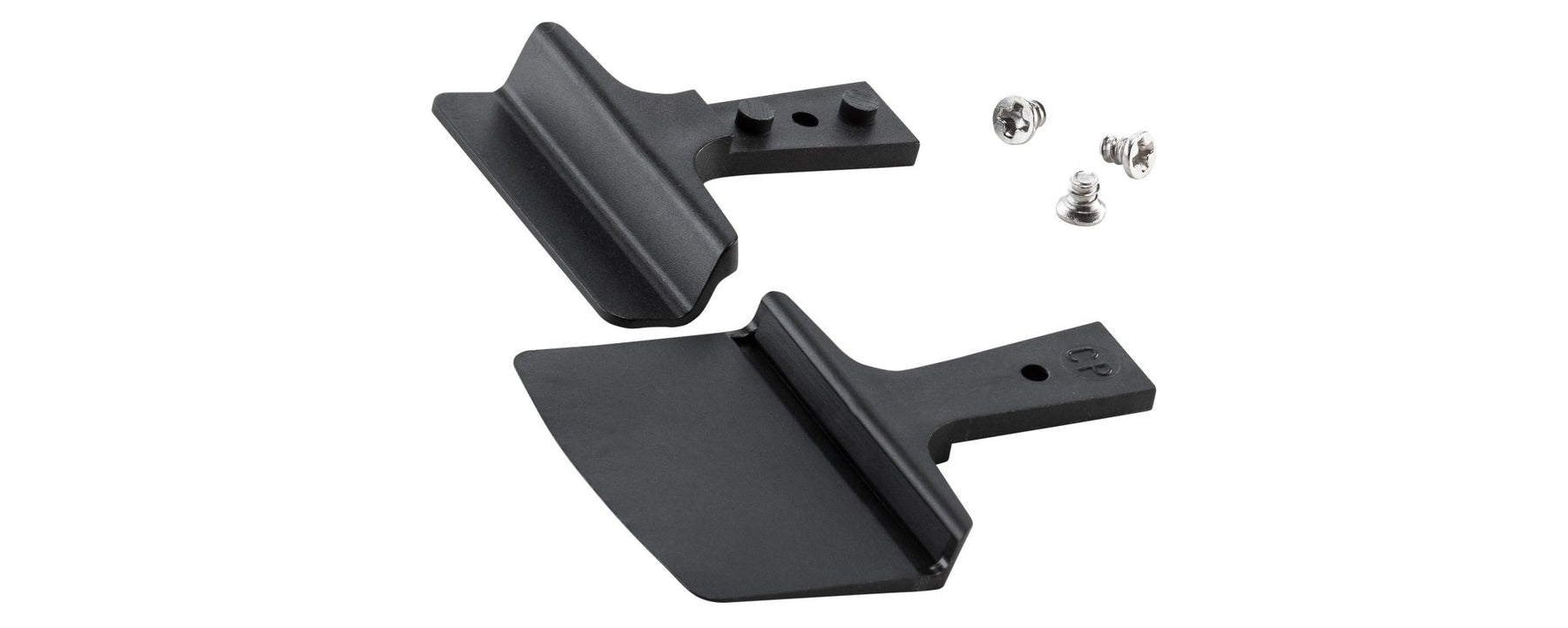

Kit of 2 Carbon Fiber tips and 3 screws for type 8WLCP tweezers is suitable to delicate applications which require holding a 6-inch flat component firmly. The bent paddle helps to hold the component still during positioning. The Carbon Fiber reinforced ESD PEEK Plastic provides the tweezers with ESD and non-scratching properties combined with excellent high temperature resistance.

Category Plastic Tweezer Tips
Tip style 8WL
Tip features wide, wafer
Tip type straight
Reverse action no
Component diameter/ cutting capacity (mm) 6
ESD safe yes
Body material CP
Tip material CP
Body coating/ finishing Sandblasted
Product OAL (mm - in) 40.00 - 1.575
Product width (mm - in) 28.00 - 1.102
Product height (mm - in) 14.00 - 0.551

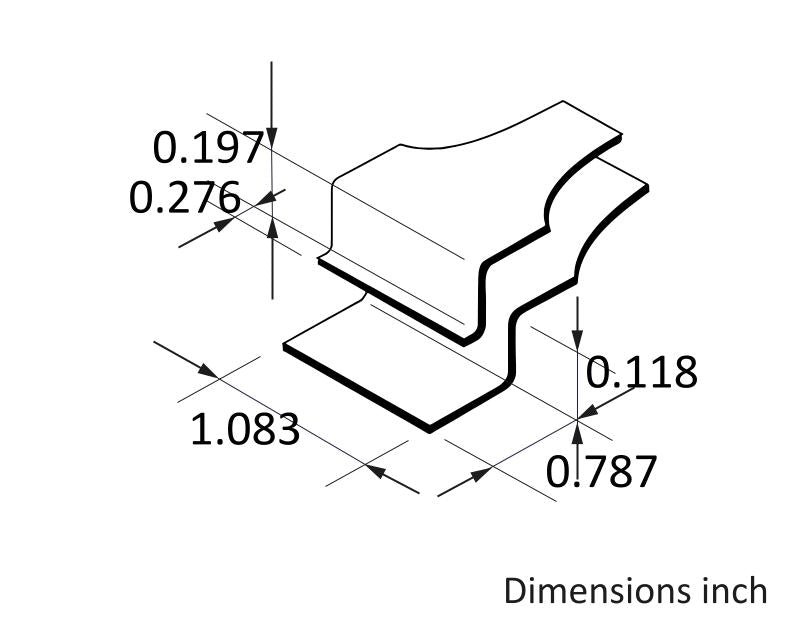

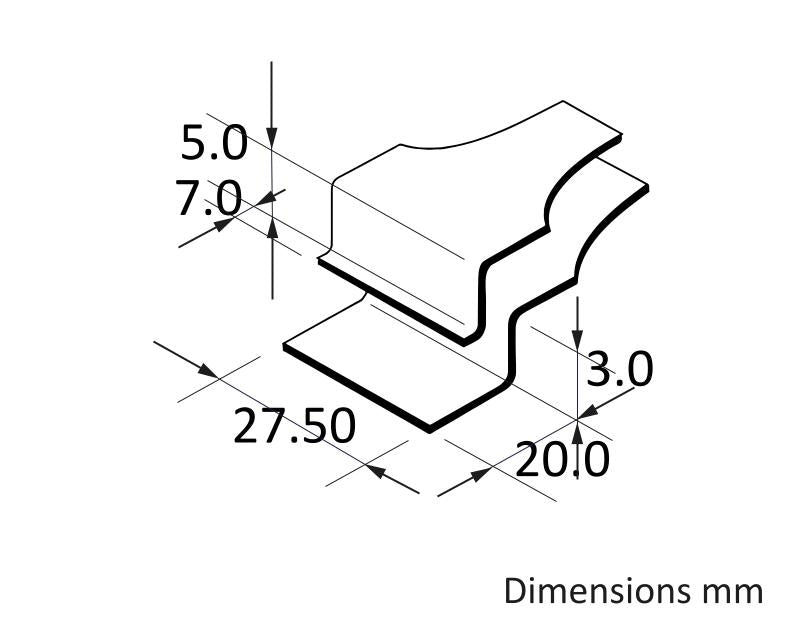

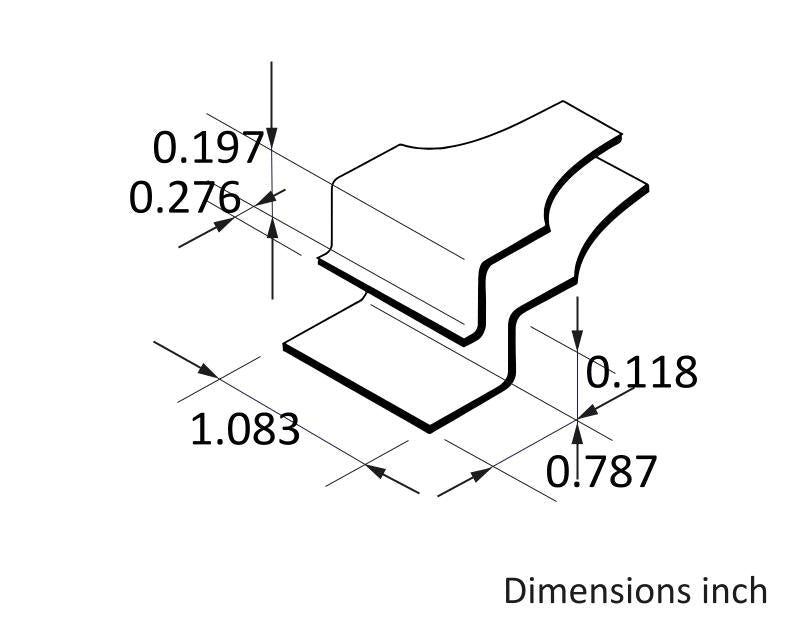

Tip width (mm - in) 27.50 - 1.083
Wafer B (mm - in) 20.0 - 0.787
Wafer C (mm - in) 3.0 - 0.118
Wafer D (mm - in) 5.0 - 0.197
Wafer E (mm - in) 7.0 - 0.276
Net weight (g-lb) 2.0 - 0.004
RoHS compliant yes
