IDEAL-TEK 702A.CF.ITU Full Plastic Tweezers 702A.CF, Carbon fiber, OAL 115mm-4.53in
IDEAL-TEK 702A.CF.ITU Full Plastic Tweezers 702A.CF, Carbon fiber, OAL 115mm-4.53in

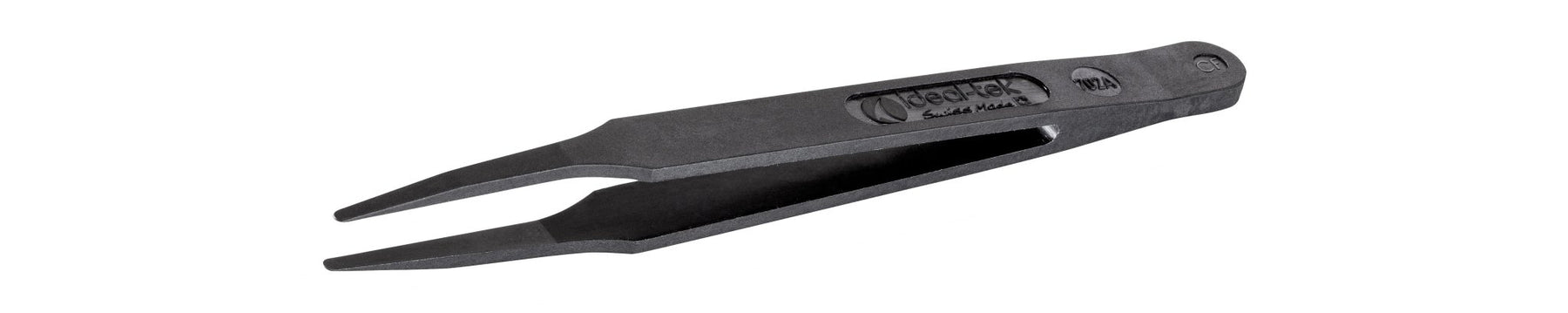

The Ideal-tek 702A.CF.ITU full plastic tweezers are designed for holding very fragile flat components. Their straight, very fine, rounded, flat tips combine a 2.00 mm tip width with 0.50 mm thickness. Carbon-fiber-reinforced ESD plastic provides the ESD-safe and non-scratching properties described by Ideal-tek, in a lightweight 115 mm Swiss-made tool.
Best Uses / Applications
Consider this model for handling fragile flat components, glass or ceramic substrates, micro-mechanical parts and sensitive electronic components where minimizing surface damage matters. Its flat, rounded tip profile offers an alternative to a pointed metal tweezer. Use controlled pressure and keep contact surfaces clean; non-scratching material properties do not guarantee freedom from marks under every handling condition.
Key Features
- Full plastic construction reinforced with carbon fiber, material code CF.
- ESD safe, as designated by Ideal-tek.

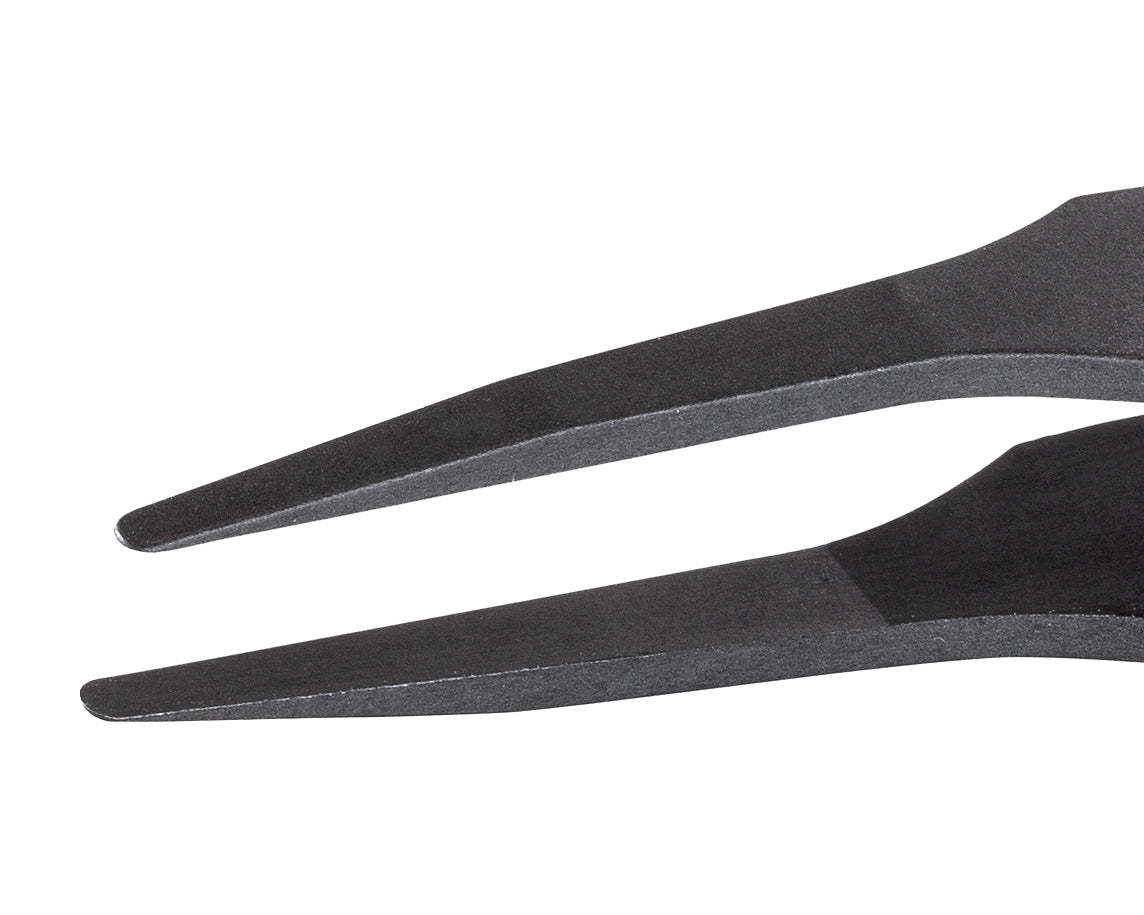

- Straight, very fine, rounded, flat Type 702A tips.
- 115 mm overall length and 4 g net tool weight.
- 2.00 mm tip width and 0.50 mm tip thickness.
- Standard action, not reverse action; made in Switzerland.
Technical Specifications
| Specification | Detail |
|---|---|
| MTE SKU | 702A.CF.ITU |
| Manufacturer code | 702A.CF |
| Product type | Full Plastic Tweezers |
| Tip style | 702A |
| Tip configuration | Straight, very fine, round, flat |
| Body material | Plastic reinforced with Carbon Fiber (CF) |
| CF material composition | PA66/CF30: polyamide 66 reinforced with 30 wt% carbon fiber |
| ESD safe | Yes, manufacturer designation |
| Reverse action | No |
| Overall length | 115.0 mm / 4.528 in |
| Product width | 9.5 mm / 0.374 in |
| Product height | 14.0 mm / 0.551 in |
| Tip width | 2.00 mm / 0.079 in |
| Tip thickness | 0.50 mm / 0.020 in |
| Net tool weight | 4.0 g / 0.009 lb |
| RoHS status | Listed as compliant in manufacturer specifications |
| Country of manufacture | Switzerland |
Material Compatibility and Handling
The CF material datasheet describes low-friction, self-lubricating properties, wear and abrasion resistance, and good resistance to oils, grease, fuels and non-polar solvents. It explicitly states that CF is not resistant to strong acids, alkalis, hot water or steam. Do not assume suitability for steam sterilization.
The material sheet lists 130°C continuous-use and 190°C short-time temperature values. These are material data, not a validated sterilization cycle or a guarantee of tool performance under every load and exposure. Verify compatibility with your actual process.
Choosing a Tweezer Construction
| Requirement | Selection guidance |
|---|---|
| Fragile flat-component handling | 702A.CF offers rounded, flat tips and the manufacturer's non-scratching CF material properties. |
| Full plastic ESD-safe tool | This model is designated ESD safe and uses carbon-fiber-reinforced plastic. |
| Very small pointed access | Compare a pointed-tip model rather than treating this 2 mm wide flat tip as a needle point. |
| Replacement-tip or different-material model | Check the exact SKU and its own datasheet. Do not transfer specifications from 702A.DG or a metal-handled replacement-tip tool to 702A.CF. |
Frequently Asked Questions
What is the 702A.CF designed to hold?
Ideal-tek describes Type 702A as suitable for holding a very fragile flat component. Its tips are straight, very fine, rounded and flat.
Is this model ESD safe?
Yes. The product page and product datasheet identify the carbon-fiber-reinforced plastic as ESD safe. Use it within the procedures of your ESD-control program.
Is it solid carbon fiber?
No. It is plastic reinforced with carbon fiber. The CF material sheet identifies PA66/CF30, polyamide 66 with 30 wt% carbon fiber.
What are the tip dimensions?
The specified tip width is 2.00 mm (0.079 in), with a tip thickness of 0.50 mm (0.020 in). Overall tool length is 115 mm (4.528 in).
Can it be exposed to steam or strong chemicals?
The CF sheet states that the material is not resistant to strong acids, alkalis, hot water or steam. Confirm process compatibility before use; the material temperature values are not a sterilization approval.
Does this product have a metal handle with replaceable tips?
This listing is for the 702A.CF full plastic tweezer. Do not confuse it with a metal-handled replacement-tip design or assume that another 702A material version has identical properties.
Technical Documents
Ideal-tek 702A.CF Product Datasheet (PDF)
CF Carbon-Fiber-Reinforced Plastic Material Datasheet (PDF)
