Ideal-tek 248CF.SA.0.ITU Plastic CF tip tweezers 248CF.SA, SS Anti-Mag, OAL 130mm, 5.12in
Regular price
$62.49
Regular price
Sale price
$62.49
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

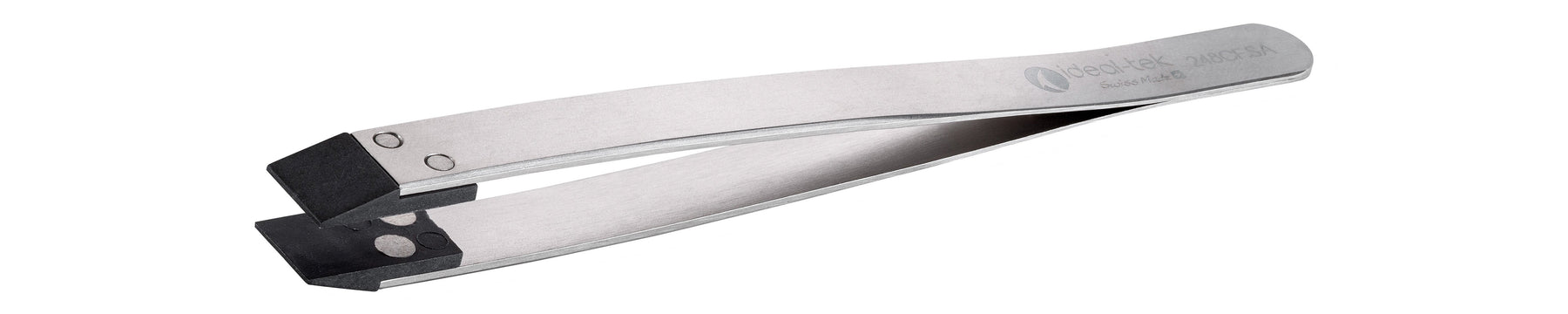

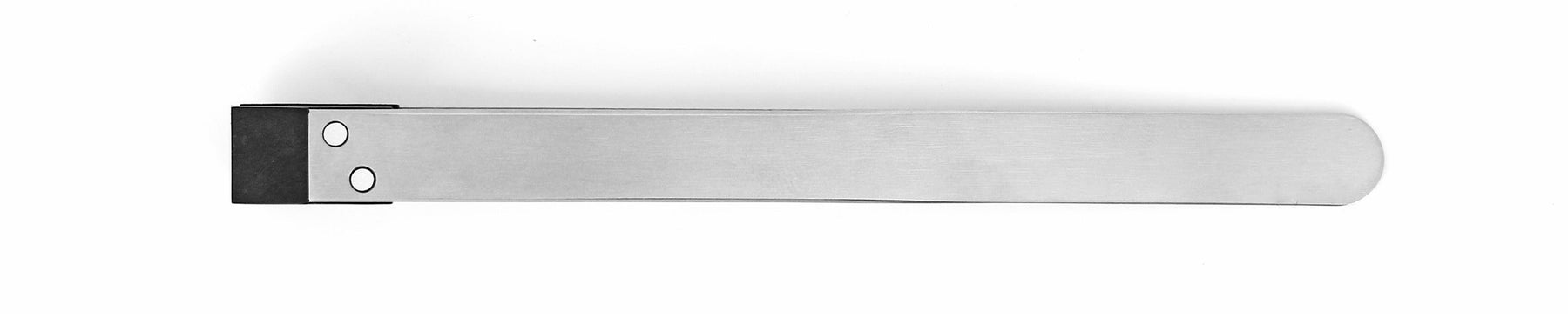

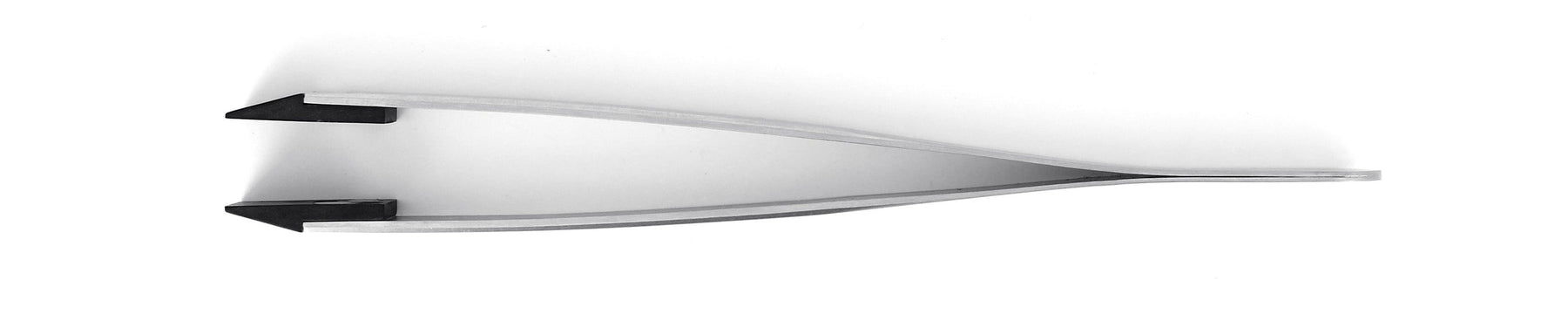

Ideal-tek 248CF.SA.0.ITU Plastic CF tip tweezers 248CF.SA, SS Anti-Mag, OAL 130mm, 5.12in

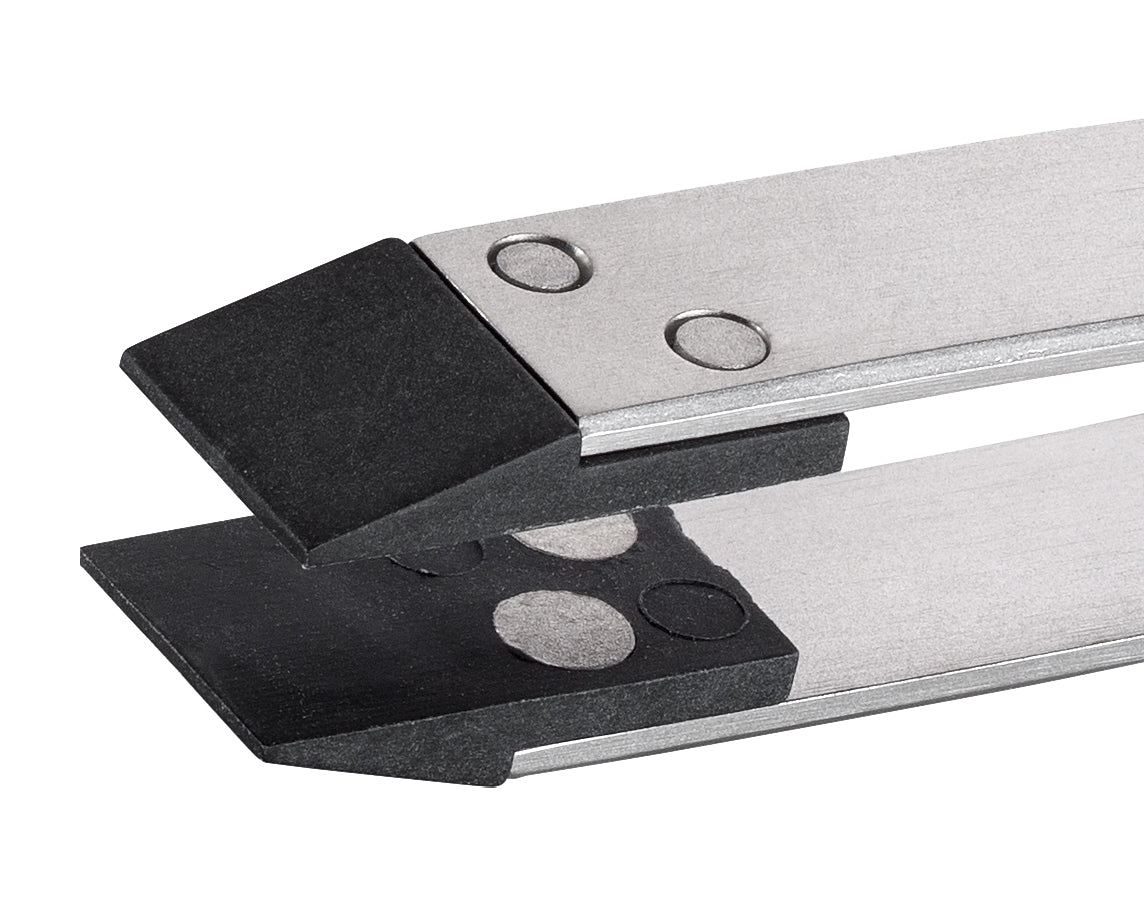

Type 248CF Plastic tip tweezers are suitable to applications which require holding a very large and flat component firmly. The Carbon Fiber reinforced ESD Plastic provides the tweezers with ESD and non-scratching properties.
| Category | Plastic Tip Tweezers |
| Tip style | 248 |
| Tip features | wide, squared, flat |
| Tip type | straight |
| Reverse action | no |
| ESD safe | yes |
| Body material | SA |
| Tip material | CF |
| Body coating/ finishing | Sandblasted |
| Product OAL (mm - in) | 130.00 - 5.118 |
| Product width (mm - in) | 10.00 - 0.394 |
| Product height (mm - in) | 16.00 - 0.63 |

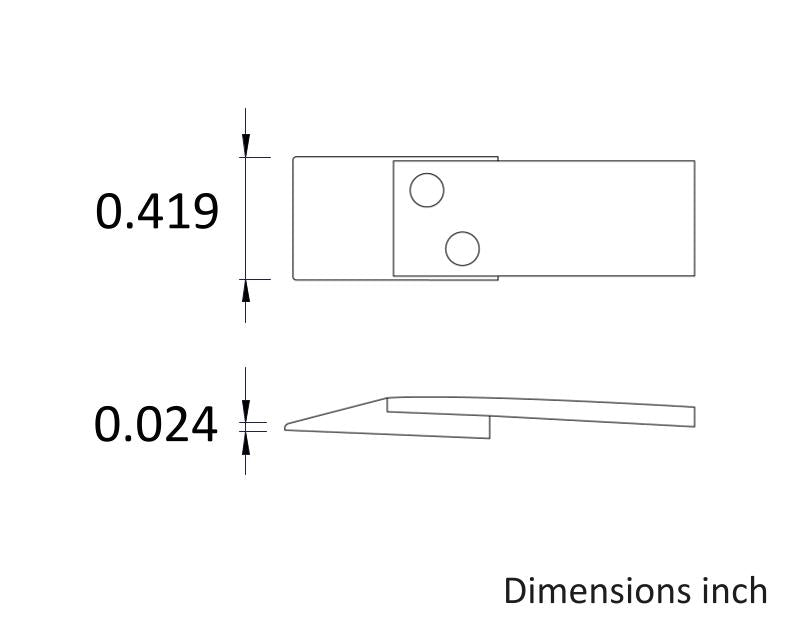

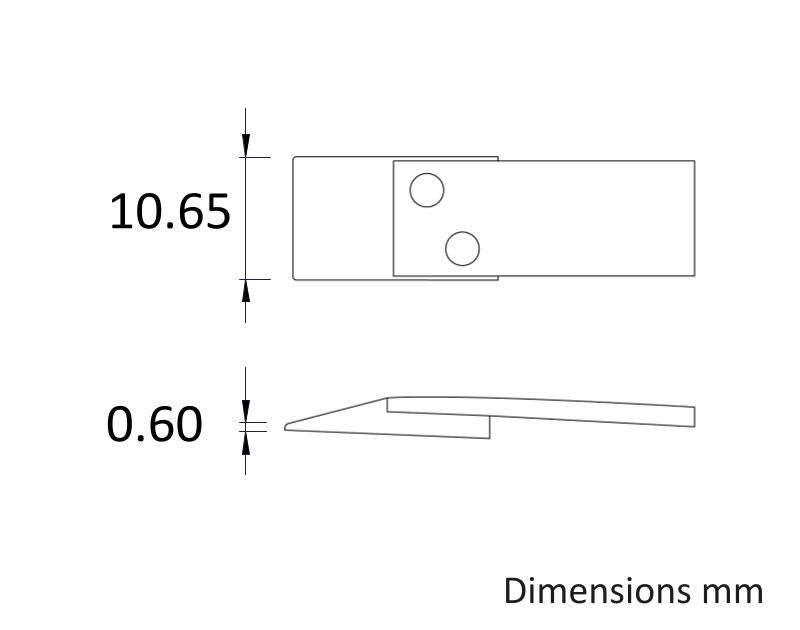

| Tip length (mm - in) | 9.00 - 0.354 |
| Tip thickness (mm - in) | 0.60 - 0.024 |
| Tip width (mm - in) | 10.65 - 0.419 |
| Tip opening gap (mm - in) | 10.0 - 0.394 |
| Net weight (g-lb) | 21.0 - 0.046 |
| RoHS compliant | yes |
