Hakko T18-S6 Beveled Solder Tip, 1.30Mm

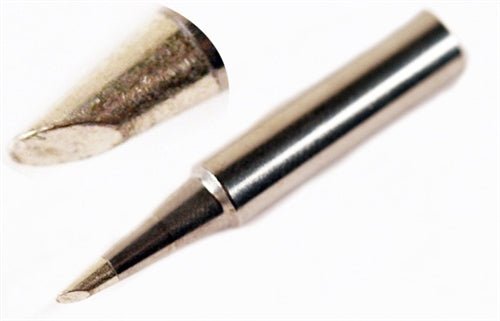

Hakko T18-S6 — Bevel Solder Tip, 1.30mm
The Hakko T18-S6 is a 1.30mm bevel solder tip for the Hakko FX-888D, FX-888, and legacy 900M/936/937 series soldering stations. The S-type designation in the T18 series indicates a bevel profile with a slightly different face geometry than the standard C-type, providing a flat angled working surface suited for SMD pad soldering, through-hole lead work, and general-purpose PCB assembly. The 1.30mm width positions it between the T18-C1 (1.00mm) and T18-C2 (2.00mm) for applications where a mid-fine bevel size is preferred.
Key Specifications
| Specification | Value |
| Part Number / SKU | T18-S6 |
| Series | T18 |
| Tip Style | Bevel (S-type) |
| Tip Width | 1.30mm |
| Compatible Stations | FX-888D, FX-888, 936, 936-ESD, 937, 928, 913, 907, 907-ESD, 900M, 900M-ESD, 703 |
| Replaces | 900M series tips |
Compatible Stations
- Hakko FX-888D Soldering Station
- Hakko FX-888 Soldering Station
- Hakko 936 / 936-ESD Soldering Station
- Hakko 937 Soldering Station
- Hakko 928 Soldering Station
- Hakko 913 ESD Safe Fume Extraction Iron
- Hakko 907 / 907-ESD Soldering Iron
- Hakko 900M / 900M-ESD Soldering Iron
- Hakko 703 Soldering Station
- Replaces 900M series tips
Soldering Tip Care Guide
- Tin before and after every use — coat the tip with fresh solder before setting the iron down and at session end to prevent oxidation.
- Use brass wire tip cleaner — plunge the tip into brass wool (Hakko 599B-02) to remove flux residue without thermal shock. Avoid wet sponges where possible.
- Re-tin immediately after cleaning — never leave a bare tip exposed at temperature; oxidation begins within seconds.
- Use tip tinner/activator on oxidized tips — if the tip dewets, apply tip tinner compound to restore the tinned surface.
- Keep temperature as low as practical — lower idle temperatures slow oxidation and extend tip life significantly.
- Replace tips showing cracks, pitting, or persistent dewetting — a damaged tip transfers heat poorly and produces unreliable joints.
Frequently Asked Questions
How does the T18-S6 compare to similarly sized bevel tips in the T18 series?
The T18-S6 at 1.30mm sits between the T18-C1 (1.00mm) and T18-C2 (2.00mm) in terms of working width. It is a good choice when the C1 feels slightly too narrow for efficient heat transfer on your pads but the C2 is wider than needed. For tighter SMD work, step down to the T18-C1 (1.00mm) or T18-C08 (0.80mm). For larger pads and higher-mass joints, step up to the T18-C2 (2.00mm) or T18-C3 (3.00mm).
What stations is the Hakko T18-S6 compatible with?
The T18-S6 is compatible with the Hakko FX-888D, FX-888, 936, 936-ESD, 937, 928, 913, 907, 907-ESD, 900M, 900M-ESD, and 703 soldering stations and irons. It is not compatible with the FX-951 (T15 series) or FX-971/FX-972 (T39 series).
How do T18 tips differ from T15 and T39 series tips?
T18 tips are designed for the FX-888D/FX-888 and legacy 900M/936 series stations. T15 tips are for the now-discontinued FX-951 station. T39 tips are for the current FX-971 and FX-972 stations. The three series are not interchangeable — always match the tip series to your specific station model.
