Hakko T18-C2 Beveled Solder Tip, 2.00Mm

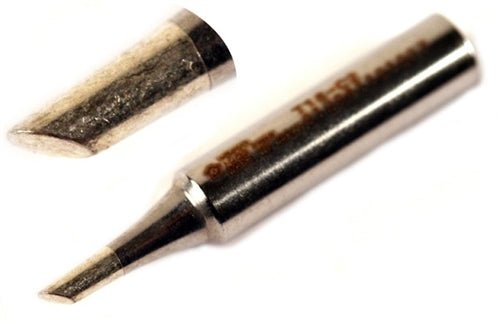

Hakko T18-C2 — Bevel Solder Tip, 2.00mm
The Hakko T18-C2 is a 2.00mm bevel (C-type) solder tip for the Hakko FX-888D, FX-888, and legacy 900M/936/937 series soldering stations. The 2.00mm bevel is a popular general-purpose size that balances heat transfer efficiency with precision — wide enough for standard through-hole pads and larger SMD components, while remaining controlled enough for moderate-pitch work. The angled concave bevel face holds a solder pool for consistent, repeatable joint delivery across a wide range of PCB assembly and rework tasks.
Key Specifications
| Specification | Value |
| Part Number / SKU | T18-C2 |
| Series | T18 |
| Tip Style | Bevel (C) |
| Tip Width | 2.00mm |
| Compatible Stations | FX-888D, FX-888, 936, 936-ESD, 937, 928, 913, 907, 907-ESD, 900M, 900M-ESD, 703 |
| Replaces | 900M series tips |
Compatible Stations
- Hakko FX-888D Soldering Station
- Hakko FX-888 Soldering Station
- Hakko 936 / 936-ESD Soldering Station
- Hakko 937 Soldering Station
- Hakko 928 Soldering Station
- Hakko 913 ESD Safe Fume Extraction Iron
- Hakko 907 / 907-ESD Soldering Iron
- Hakko 900M / 900M-ESD Soldering Iron
- Hakko 703 Soldering Station
- Replaces 900M series tips
Soldering Tip Care Guide
- Tin before and after every use — coat the tip with fresh solder before setting the iron down and at session end to prevent oxidation.
- Use brass wire tip cleaner — plunge the tip into brass wool (Hakko 599B-02) to remove flux residue without thermal shock. Avoid wet sponges where possible.
- Re-tin immediately after cleaning — never leave a bare tip exposed at temperature; oxidation begins within seconds.
- Use tip tinner/activator on oxidized tips — if the tip dewets (solder beads off), apply tip tinner compound to restore the tinned surface.
- Keep temperature as low as practical — lower idle temperatures slow oxidation and extend tip life significantly.
- Replace tips showing cracks, pitting, or persistent dewetting — a damaged tip transfers heat poorly and produces unreliable joints.
Frequently Asked Questions
What is a bevel (C-type) tip and when should I use one?
A bevel tip (C-type) has an angled, concave face that holds a small solder pool. This makes it excellent for transferring a controlled amount of solder to SMD pads, through-hole leads, and connector pins. The bevel face provides more surface contact than a conical tip while remaining more precise than a wide chisel. It is one of the most versatile tip shapes for general PCB assembly and rework.
How does the T18-C2 compare to other bevel sizes in the T18 series?
The T18-C2 at 2.00mm is a mid-size bevel well suited for standard through-hole components, medium SMD pads, and general-purpose soldering. For finer SMD work and tight pad spacing, choose the T18-C1 (1.00mm) or T18-C08 (0.80mm). For large pads, connector terminations, and high-mass joints, the T18-C3 (3.00mm) or T18-C4 (4.00mm) provide more contact area and heat transfer capacity.
What stations is the Hakko T18-C2 compatible with?
The T18-C2 is compatible with the Hakko FX-888D, FX-888, 936, 936-ESD, 937, 928, 913, 907, 907-ESD, 900M, 900M-ESD, and 703 soldering stations and irons. It is not compatible with the FX-951 (T15 series) or FX-971/FX-972 (T39 series).
How do T18 tips differ from T15 and T39 series tips?
T18 tips are designed for the FX-888D/FX-888 and legacy 900M/936 series stations. T15 tips are for the now-discontinued FX-951 station. T39 tips are for the current FX-971 and FX-972 stations. The three series are not interchangeable — always match the tip series to your specific station model.
