Hakko FM2023-05 SMD Mini Hot Tweezer Kit W/T9-I Tip & Holder For FM206, FM203, And FM202 Stations

The Hakko FM-2023 is designed for use with small chip components as small as 0201. The Mini Parallel Remover has a unique feature allowing it to work as a standard or reverse action tweezer. A simple flip of a switch sets the action of the tool. FOR USE WITH THE FM-206, FM-203 OR FM-202 SOLDERING STATION ONLY.


SMD MINI PARALLEL REMOVER

The Hakko FM-2023 is designed for use with small chip components as small as 0201. The Mini Parallel Remover has a unique feature allowing it to work as a standard or reverse action tweezer. A simple flip of a switch sets the action of the tool.

FOR USE WITH THE FM-206, FM-203 OR FM-202 SOLDERING STATION ONLY.


Specifications

 Model Name  FM-2023
 Part Number  FM2023-05
 Power Consumption  140W (24V)
 Temperature Range  200°C - 400°C (400°F - 750°F)
 Temperature Accuracy  ±10°C (±28°F) of set temperature
 Temperature Stability  ±5°C (±9°F) at idle temperature
 Tip to Ground Resistance  < 2 ohms
 Tip to Ground Potential  < 2mV (Typical 0.6mV)
 Cord Assembly  1.2m (4 ft.)
 Total Length (w/o Cord and Tip)  75mm (3.0 in.)
 Weight, Handpiece only (w/o cord)  32g (1.1 oz.)
 Weight, T9-I tip  5g (0.18 oz.)
 Standard tip  T9-I

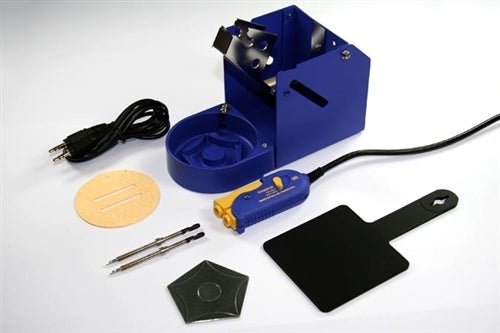

 What's in the box?

 Description  Part No.
 Handpiece  FM2023-02
 Tip, (I shape)  T9-I
 Heat resistant pad  B2300
 Cleaning sponge  A1519
 Iron Holder  FH200-04
 Component bed  B2849
 Connector Cable  B3253
