Hakko FX8804-02 SMD Hot Tweezer
Hakko FX8804-02 SMD Hot Tweezer

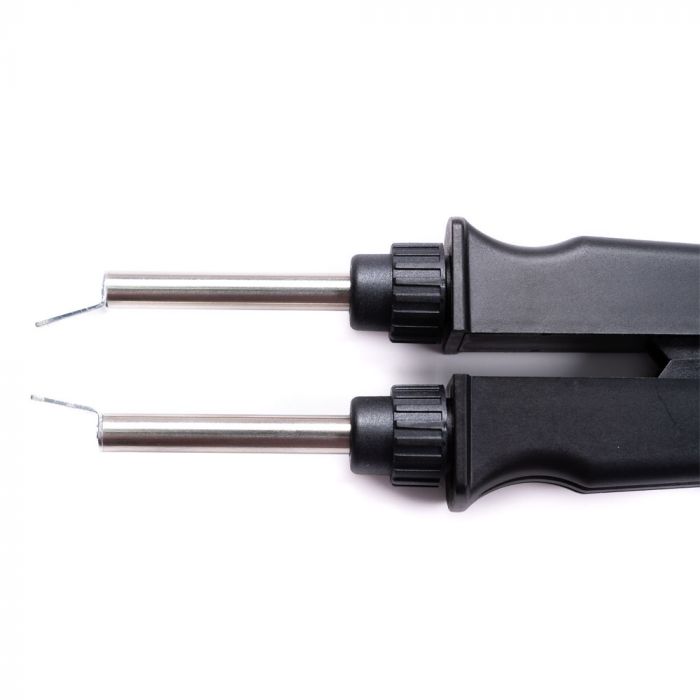

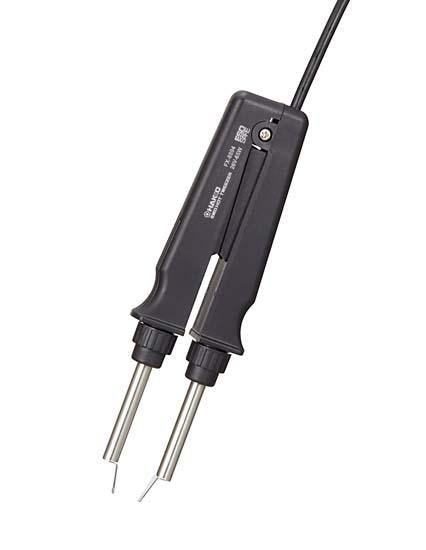

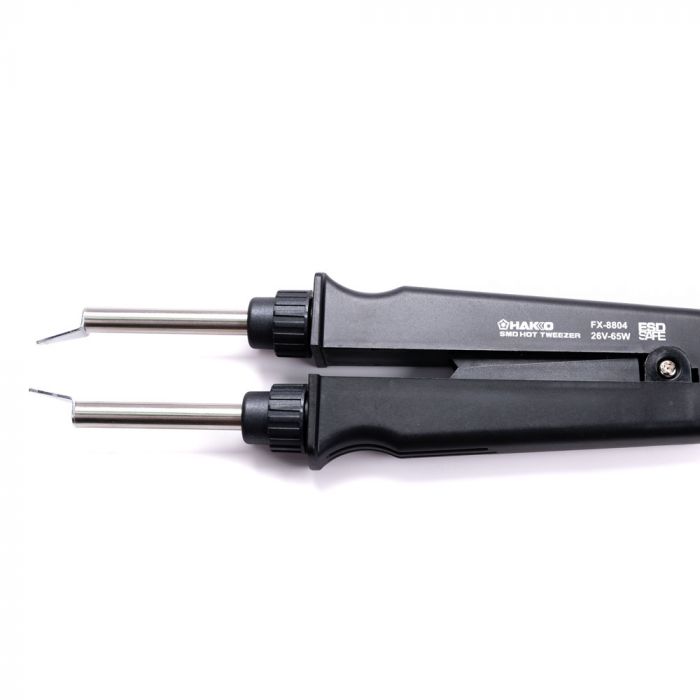

The Hakko FX8804-02 SMD Hot Tweezer delivers direct, simultaneous heat to both sides of a surface mount component for fast, clean removal without disturbing surrounding components on dense boards. Compatible with the Hakko FX-888, FX-888D, and FX-889 soldering stations, it removes SMD chips and flat packs up to 25mm with precision and control. The collet system allows easy tip replacement using the 950 Series tip family. ESD-safe design with tip-to-ground potential under 2mV protects sensitive components during rework.
Handpiece only — see FX8804-CK for the complete kit with holder and cleaning sponge.
Industries & Applications
- PCB Rework & Repair Shops — Fast, clean SMD chip and flat pack removal from populated boards without disturbing adjacent components
- Electronics Manufacturing (EMS / OEM) — Production rework of 0402, 0603, SOT, SOIC, and flat pack components on high-density assemblies
- Aerospace & Defense Electronics — ESD-safe (<2mV tip-to-ground) rework on sensitive assemblies requiring controlled soldering processes
- Medical Device Manufacturing — Precision SMD removal on micro-assemblies where thermal control and ESD protection are critical
- R&D / Prototype Labs — Component swapping and design iteration on prototype boards using existing FX-888D or FX-889 station infrastructure
Key Features
- Simultaneous dual-side heating — removes SMD chips and flat packs up to 25mm cleanly
- ESD-safe — tip-to-ground resistance <2Ω, tip-to-ground potential <2mV
- 950 Series collet tip system — fast tip changes for different component geometries
- Compatible with Hakko FX-888, FX-888D, and FX-889 stations
- Includes A1378 (2mm) tip set and B2300 heat resistant pad
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | FX8804-02 |
| Manufacturer | Hakko |
| Power | 26VAC, 65W |
| Temperature Range | 200°C – 400°C (392°F – 750°F) |
| Tip to Ground Resistance | <2 ohms |
| Tip to Ground Potential | <2 mV (ESD-safe) |
| Tip Series | 950 Series |
| Standard Tip Included | A1378 (2mm) |
| Compatible Stations | FX-888, FX-888D, FX-889 |
| Max Component Size | 25mm (chips & flat packs) |
| Cord Length | 1.2m (47.2 in.) |
| Length (w/o cord) | 186mm (7.3 in.) |
| Weight (w/o cord) | 93g (0.21 lb.) |
What’s in the Box
- FX8804-02 SMD Hot Tweezer handpiece
- A1378 tip set (2mm) — 950 Series
- B2300 Heat Resistant Pad
FX8804-02 vs. FX8804-CK
| Feature | FX8804-02 (Handpiece Only) | FX8804-CK (Complete Kit) |
|---|---|---|
| Hot tweezer handpiece | Yes | Yes |
| A1378 tip set (2mm) | Yes | Yes |
| B2300 heat resistant pad | Yes | Yes |

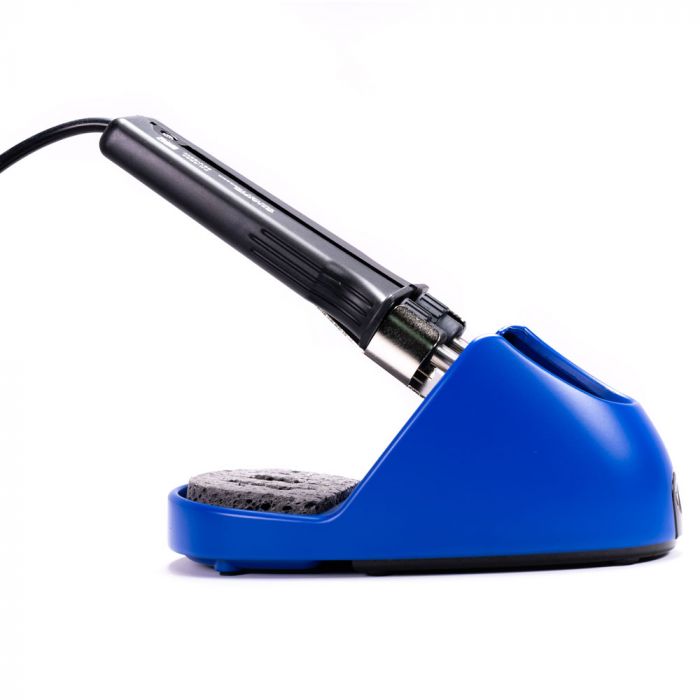

| Tweezer holder / stand | No | Yes |
| Cleaning sponge | No | Yes |
| Best for | Adding to existing FX-888D setup | New workstation setup |
Frequently Asked Questions
What soldering stations is the FX8804-02 compatible with?
The FX8804-02 is compatible with the Hakko FX-888, FX-888D, and FX-889 soldering stations. It is not compatible with other Hakko station models without an appropriate conversion kit.
What is the difference between the FX8804-02 and the FX8804-CK?
The FX8804-02 is the hot tweezer handpiece only, including the A1378 tip set and B2300 heat pad. The FX8804-CK is the complete conversion kit, which additionally includes a tweezers holder and cleaning sponge for a full workstation setup.
What tip series does the FX8804-02 use?
The FX8804-02 uses Hakko 950 Series tips. The A1378 (2mm) tip is included; additional 950 Series tips are available separately for different component sizes and geometries.
Is the FX8804-02 ESD-safe?
Yes — tip-to-ground resistance is under 2 ohms and tip-to-ground potential is under 2mV, meeting ESD-safe requirements for rework on sensitive assemblies.
What size SMD components can the FX8804-02 remove?
The FX8804-02 removes SMD chips and flat packs up to 25mm. For larger components, review compatible tip options in the 950 Series or contact MTE Solutions for guidance.
