Hakko FT802-03 Thermal Wire Stripper
Hakko FT802-03 Thermal Wire Stripper
Introducing the 3rd Generation Thermal Wire Stripper from Hakko. Designed for use with a wide variety of insulated wires, a built-in blade removal and handpiece holder and a compact shape to maximize workbench space. Along with a new, fully redesigned, ergonomic handpiece that provides superior thermal performance with optimized blades for better alignment accuracy.
Patent Pending.
FT-802 Thermal Wire Stripper
• Upgraded design from the FT-8002 handpiece
• Improved blade alignment with set screws to ensure alignment
• Integrated handpiece holder to maximize workbench space and provides a shield to prevent burns
• Holder with blade removal plate to remove the blades from the handpiece without touching them
• Ergonomic design and built in heat resistance

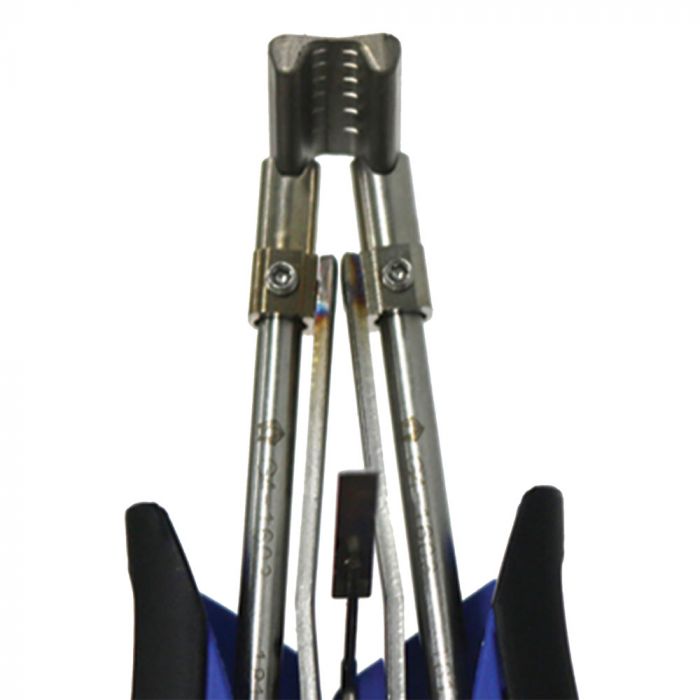

• Uses G4 blades (an upgrade from the G2 blades)
• G4 blades boast an optimized edge for wire stripping with superior thermal performance that make wire stripping easier
Specifications

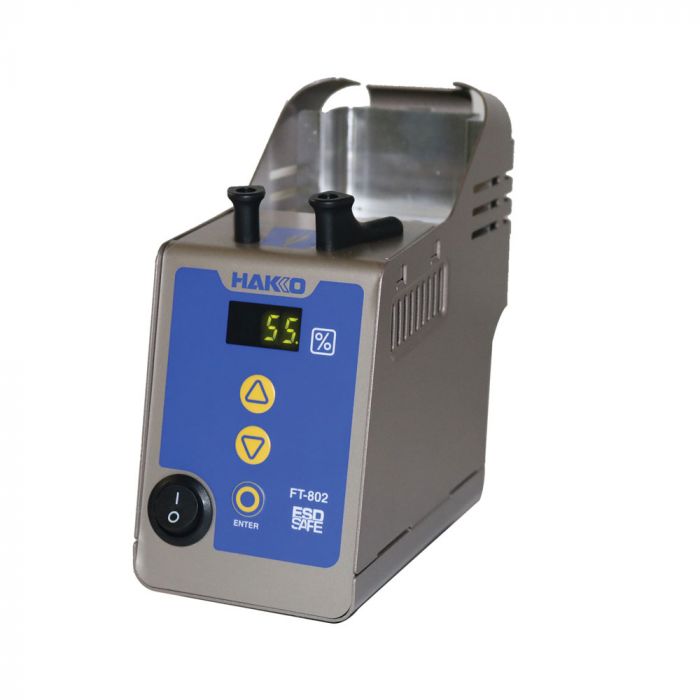

Station
Â
| Â Model Name | Â FT-802 |
| Â Part No. | Â FT802-03 |
| Â Input Voltage | Â 120 VAC 50/60Hz |
| Â Power Consumption | Â 76W |
| Â ESD Safe | Â Yes |
| Â Country of Origin | Â JPN |
| Â Safety Approval |  |
Â
Station
| Â Output Voltage | Â 20 VAC |
| Â Dimensions (WxHxD) | Â 76 x 159 x 161 mm (3.0 x 6.3 x 6.3 in.) |
| Â Weight | Â 1.6 kg (3.53 lbs.) |
Â

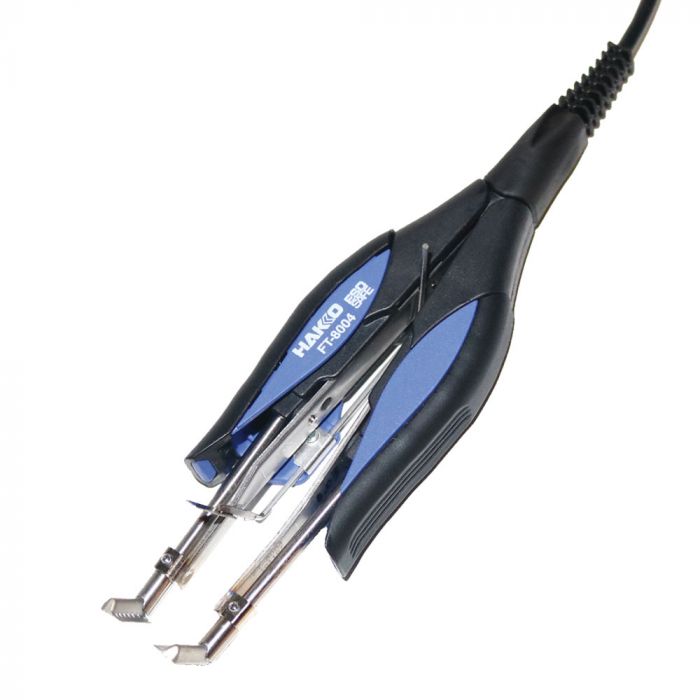

Handpiece
| Â Model Name | Â FT-8004 |
| Â Part Number | Â FT8004-81 |
| Â Power Consumption | Â 72W (20V) |
| Â Total Length (w/o cord, blade) | Â 153mm (6.0 in.) |
| Â Length of cord | Â 1.6m (63 in.) |
| Â Weight (w/o cord, blade) | Â 47g (0.1lb.) |

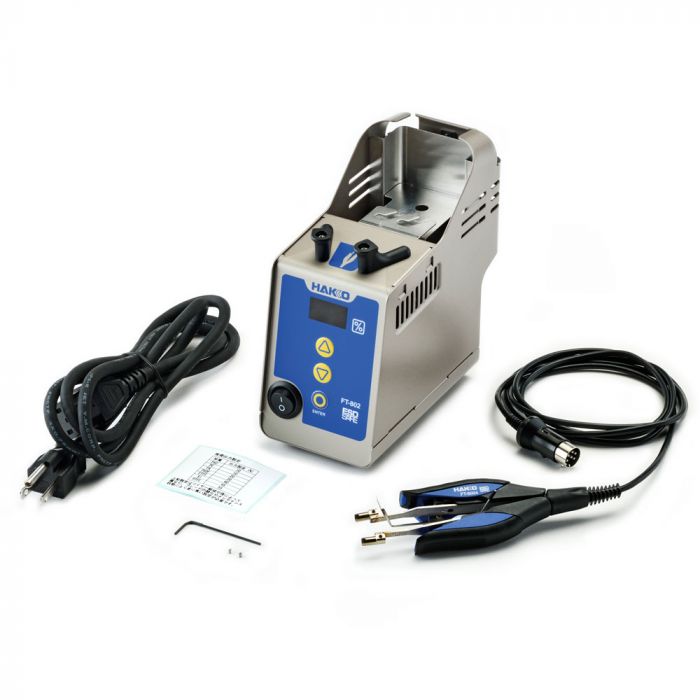

 What's in the box?
| Â Description | Â Part No. |
| Â FT-802 Station | Â --- |
| Â Power Cord |
 B2419 |
| Â FT-8004 Handpiece |
 FT8004-81 |
| Â Instruction Manual | Â --- |
