Hakko FR811-Set Complete SMDHot Air Rework System

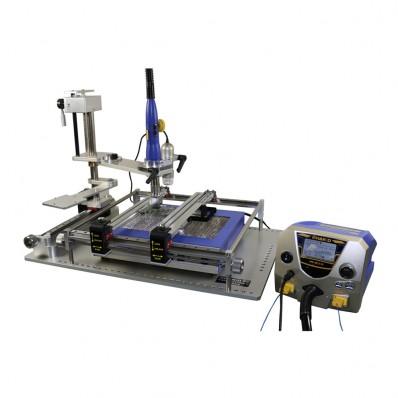

The Hakko FR811-SET is a complete, economical SMD hot air rework system, including the HAKKO FR-811 hot air station, handpiece fixture, board holder and vision system.
The HAKKO FR-811 can be transformed into a complete SMD rework system with these added accessories:

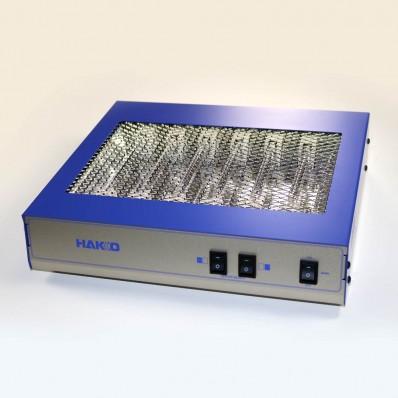

• C5016 bottom heater, which integrates with and is fully controlled by the FR-811 allowing it to be incorporated into the various heating profiles set by the FR-811

• C5027 board holder

• C5029 handpiece fixture

These added accessories add functionality and features that provide stabilization for accuracy when reworking small or difficult components. The C5027 board holder and C5029 hand piece fixture feature a "one-touch" slide adjustment for quick and easy adjustments, and knobs for fine x-y adjustments. For smaller components, the FR811-SET also includes the HAKKO Basic Vision Kit (PN: 999-267) that incorporates a Dino-Lite microscope camera for visual alignment (attachment bracket to the C5029 hand piece fixture included.)

• New graphic interface display and navigation system that simplifies operation

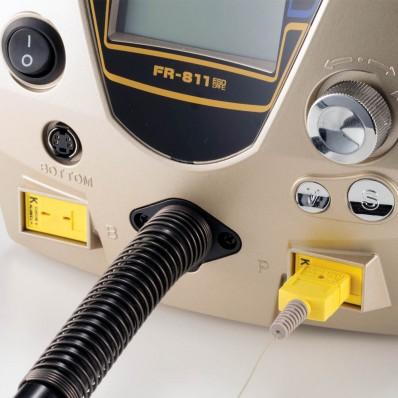

• Dual T/C inputs allow users to monitor part and board temperatures while controlling the ramp rate for a safe, accurate and repeatable process

• Automatic mode gives users the ability to fully program profiles with up to 6 stages

• Onboard storage of up to 50 profiles with an external USB port for flash drive memory for storage of profiles

• A dedicated USB port can also be used to integrate the FR-811 with a PC using the included software

• Integrated vacuum pickup with a visual indicator in the handpiece that indicates when the component has been completely reflowed

• ESD-Safe

• Nozzles are not included

Specifications

Model Name	FR-811
Part No.	FR811-04
Input Voltage	120 VAC 50/60 Hz
Power Consumption	820W
Heater Power Consumption	790W
Airflow Source	Turbine
Airflow Capacity1	Setting 1-100% (115 L/min. Max)
Vacuum Function	Yes
Temperature Range2	120° - 1120°F (50° - 600°C)
Thermocouple Inputs	2 - Type K
External Connections	1 - USB - A 1 - USB Mini B
Operating Modes	Manual or Automatic
Memory	50 x 6 Stage + Preheat
Process Control	Password Lockout
Auto Power Off Safety	Yes
Auto Cooling Safety	Yes
Presets	6-User Programmable
Handpiece Length (w/o Cord)	9.8 in (250 mm)
Handpiece Weight (w/o Cord)	0.40 lb. (180 g)
Nozzles (not included)	N51 Series
Standard Dimensions (W x H X D)	6.3 x 5.7 x 8.7 in. 160 x 145 x 220 mm
Station Weight	3.3 lb. (1.5 kg)
ESD Safe	Yes
Safety Approval

¹Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.

²Under certain airflow and temperature setting conditions, the station my not attain the maximum allowable temperature.

Note: Specifications subject to change without notice



STATION CONTENTS



Description	Part No.
FR-811 SMD Rework Station	---
Software and Driver CD Note: Software is compatible with Windows 7 through Windows 10.	---
Holder Assembly	C5033
Vacuum Pipe Knob (L) w/screw	B3023
USB Cable	B5129
Thermocouple	B5128
Heat Resistance Pad	B2300
Power Cord	B5054
Vacuum Cups - 3 mm dia. (2 pcs)	A1520
Vacuum Cups - 5 mm dia. (2 pcs)	A1439
Vacuum Cups - 7.6 mm dia. (2 pcs)	A1438
Instruction Manual	--



BOTTOM PREHEATER

Model	C5016
Part No.	C5016
Input Voltage	120 VAC 50/60 Hz
Power Consumption	730W
Effective Heating Area (W x D)	7.5 x 3.2 in. (190 x 80 mm)
Board Capacity	9.8 x 5.5 in. (248 x 140 mm)
Heating Zones	2
Operating Modes	Power/Thermocouple
Thermocouple Mode Range	122 - 392°F (50 - 200°C)
Stability (T/C Mode)	±9°F (±5°C)
Power Mode Range	1 - 100% (1% increments)
Heater Control	Requires FR-811 station
Heater Type	High Efficiency Carbon Filament
Heater Lamp MTBF	~ 2100 hours
External Connections1	1 - integrate w/FR-811
Dimensions	11.6 x 2.6 x 9.7 in. 295 x 66 x 246 mm
Weight	4.6 lb. (2.1 kg)
Safety Approval	cMETus
ESD Safe	Yes

¹Requires connecting cable (included)



BOARD HOLDER

Model	C5027
Part No.	C5027
Max Board Width	10.2 in. (260 mm)
Dimensions	16.3 x 5.0 x 14.2 in. 413 x 127 x 361 mm
Weight	5.5 lb. (2.5 kg)
ESD Safe	Yes



HANDPIECE FIXTURE - L

Model	C5029
Part No.	C5029
Reach1	5.5 in. (131 mm) Max
Z-axis Stroke	4.7 in. (120 mm)
Arm Position	Adjustable through 180°
Dimensions	22.9 x 19.3 x 14.2 in. 582 x 491 x 361 mm
Weight	19.6 lb. (8.89 kg)
ESD Safe	Yes

¹As measured with C5027 Board Holder



VISION KIT

Part No.	999-267
Connection	USB 2.0
Magnification Range	10X - 50Xm 230X
Resolution	640 x 480 pixels
Image Size	0.3 MP
Video Frame Rate	30 FPS (Max)
Dimensions	2.6 x 4.5 x 3.3 in. 66 x 115 x 83.5 mm
Weight	0.5 lb. (0.23 kg)
