Hakko FR410-53 High Power Desoldering Station with Pencil-Style Tool
Hakko FR410-53 High Power Desoldering Station with Pencil-Style Tool
Everything you love about the original FR-410, now with a handpiece that has a more efficient nozzle quick-change capability!
Features & Benefits
• New, wider selection of nozzle configurations
• Large, easy-to-read display that includes a vacuum level indicator
• Three (3) user-programmable presets
• Password lockout to prevent any unauthorized changes to the systems operation or setup
• Vacuum system with .02 second delay timer to prevent nozzle clogging
• Easy-access solder collection chamber that is simple to clean
• Easy-to-change heater cartridge with American Hakko composite ceramic technology
• Independent nozzle which provides a low cost of operation
tions
| Â Model Name | Â FR-410 |
| Â Part No. | Â FR410-53 |
| Â Input Voltage | Â 120 VAC 50/60 Hz |
| Â Power Consumption | Â 190W |
|  Temperature Range |  330°C - 450°C (620°F - 850°F |
|  Temperature Stability |  ±5°C (±9°F) |
| Â ESD Safe | Â Yes |
| Â Country of Origin | Â JPN |
| Â Safety Approval | Â cMETus |
| Â Shipping Dimensions (W x H x D) | Â 394 x 229 x 312 mm (15.5 x 9.0 x 12.25 in.) |
| Â Shipping Weight | Â 7.4 kg (16.2 lb.) |
Â
Station
| Â Output Voltage | Â 24 V |
| Â Vacuum Generator | Â Pump - Double Cylinder |
| Â Vacuum Pressure (Max) | Â 80 kPa / 600 mm Hg (24 in. Hg) |
| Â Suction Flow | Â 15 L/min |
| Â Outer Dimension (W x H x D) | Â 165 x 137 x 244 mm (6.5 x 5.4 x 9.6 in.) |
| Â Weight (w/o Cord) | Â 4.8 kg (10.6 lb.) |
Â
Handpiece
| Â Model | Â FR-4104 |
| Â Part No. | Â FR4104-81 |
| Â Power Consumption | Â 140W (24 V) |
| Â Nozzle-to-Ground Resistance | Â < 2 ohms |
| Â Nozzle-to-Ground Potential | Â < 2 mV |
| Â Heater | Â Composite Ceramic Cartridge |
| Â Nozzles | Â N61 Series |
| Â Standard Nozzle (Included) | Â N61-05 (1.0 mm / 0.04 in.) |
| Â Cord Length | Â 1.2 m (4 ft.) |
| Â Total Length (w/o Cord)1 | Â 206 mm (8.1 in.) |
| Â Weight (w/o Cord)1 | Â 180 g (0.40 lb.) |
1As measured with N61-05 nozzle installed

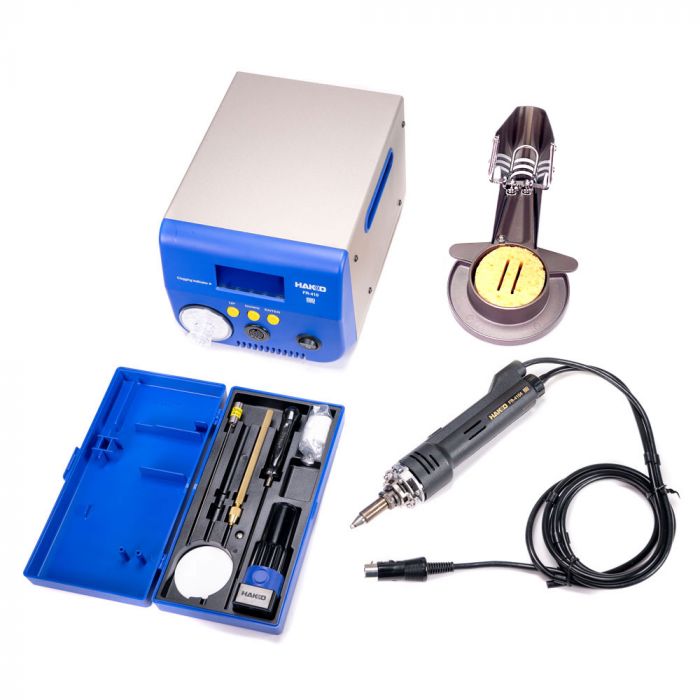

 What's in the box?
| Â Description | Â Part No. |
| Â FR-410 Desoldering Staion | Â ---- |
| Â FR-4104 Pencil-Type Desoldering Handpiece | Â FR4104-81 |
| Â Handpiece Holder with cleaning sponge | Â FH410-02 |
| Â Power Cord | Â B2419 |
|
 Maintenance Kit that includes:  B1087 - 1.0 mm Cleaning Pin  B1215 - Heating Cleaning Pin  B1303 - 1.0 mm Cleaning Drill  B5106 - Nozzle Wrench  A5020 - Station Filter (x2)  A5044 - Handpiece Filter (x4) |
    C5030 |
| Â Standard Nozzle | Â N61-05 |
| Â Instruction Manual | Â ---- |
