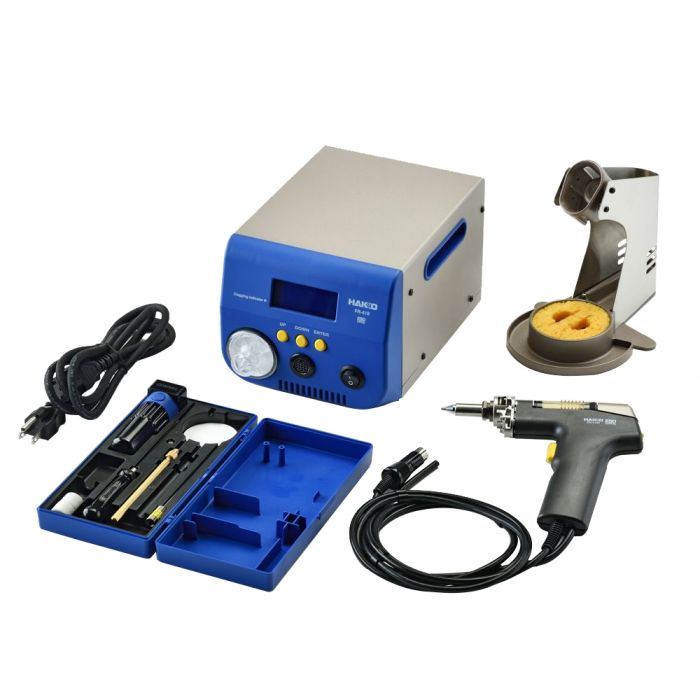

Hakko FR410-52 High Power Desoldering Station with Gun-Style Tool
Hakko FR410-52 High Power Desoldering Station with Gun-Style Tool
Hakko FR410-52 High Power Desoldering Station with Gun-Style Tool
Features & Benefits
• New, wider selection of nozzle configurations
• Large, easy-to-read display that includes a vacuum level indicator
• Three (3) user-programmable presets
• Password lockout to prevent any unauthorized changes to the systems operation or setup
• Vacuum system with .02 second delay timer to prevent nozzle clogging
• Easy-access solder collection chamber that is simple to clean
• Easy-to-change heater cartridge with American Hakko composite ceramic technology
• Independent nozzle which provides a low cost of operation
| Model Name | FR-410 |
| Part No. | FR410-52 |
| Input Voltage | 120 VAC 50/60 Hz |
| Power Consumption | 190W |
| Temperature Range | 330°C - 450°C (620°F - 850°F |
| Temperature Stability | ±5°C (±9°F) |
| ESD Safe | Yes |
| Country of Origin | JPN |
| Safety Approval | cMETus |
| Shipping Dimensions (W x H x D) | 394 x 229 x 312 mm (15.5 x 9.0 x 12.25 in.) |
| Shipping Weight | 7.4 kg (16.2 lb.) |
Station
| Output Voltage | 24 V |
| Vacuum Generator | Pump - Double Cylinder |
| Vacuum Pressure (Max) | 80 kPa / 600 mm Hg (24 in. Hg) |
| Suction Flow | 15 L/min |
| Outer Dimension (W x H x D) | 165 x 137 x 244 mm (6.5 x 5.4 x 9.6 in.) |
| Weight (w/o Cord) | 4.8 kg (10.6 lb.) |
Handpiece
| Model | FR-4103 |
| Part No. | FR4103-81 |
| Power Consumption | 140W (24 V) |
| Nozzle-to-Ground Resistance | < 2 ohms |
| Nozzle-to-Ground Potential | < 2 mV |
| Heater | Composite Ceramic Cartridge |
| Nozzles | N61 Series |
| Standard Nozzle (Included) | N61-05 (1.0 mm / 0.04 in.) |
| Cord Length | 1.2 m (4 ft.) |
| Total Length (w/o Cord)1 | 168 mm (6.6 in.) |
| Weight (w/o Cord)1 | 190 g (0.42 lb.) |
1As measured with N61-05 nozzle installed
What's in the box?
Nozzles for this System:
N61-01 Desoldering Nozzle 0.6 mm
N61-02 Desoldering Nozzle 0.8 mm
N61-03 Desoldering Nozzle 1.0 mm
N61-04 Desoldering Nozzle 0.8 mm Extended
N61-05 Desoldering Nozzle 1.0 mm Extended
N61-06 Desoldering Nozzle 1.3 mm Extended
N61-07 Desoldering Nozzle 0.8 mm
N61-08 Desoldering Nozzle 1.0 mm
N61-09 Desoldering Nozzle 1.3 mm
N61-10 Desoldering Nozzle 1.6 mm
N61-11 Desoldering Nozzle 0.8 mm Extra Long
N61-12 Desoldering Nozzle 1.0 mm Extra Long
N61-13 Desoldering Nozzle 1.3 mm Extra Long
N61-14 Desoldering Nozzle 1.6 mm Extra Long
N61-15 Desoldering Nozzle 3 x 1.0 mm
N61-16 Desoldering Nozzle 4 x 1.0 mm
N61-17 Desoldering Nozzle 2.3 mm
