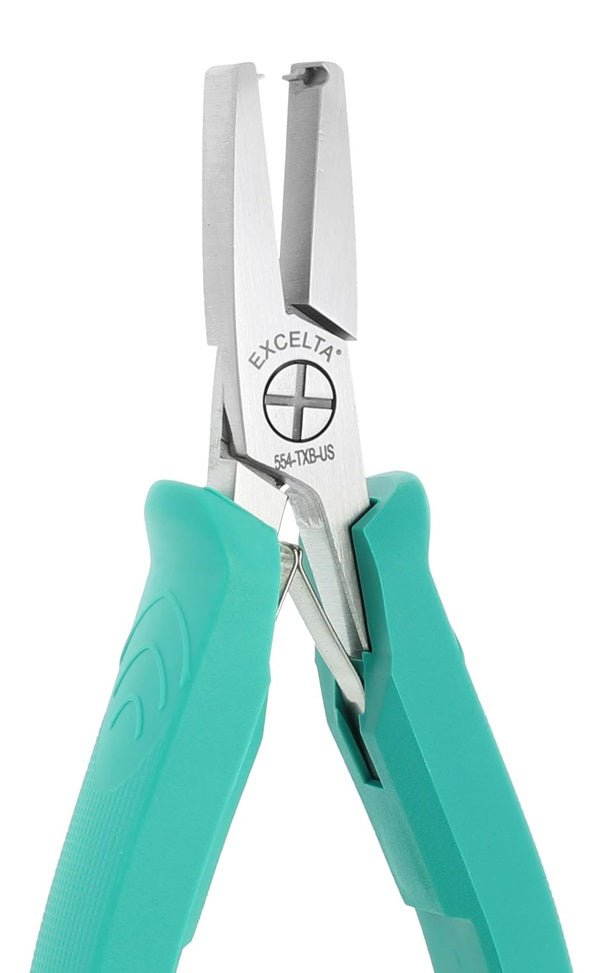

Excelta 554TXB-US Pliers - Lock-In Lead Forming - 1St Bend .030"
Excelta 554TXB-US Pliers - Lock-In Lead Forming - 1st Bend .030"
The Excelta 554TXB-US is a 5" stress-relief forming plier that forms stress relief in most radial-lead components, creating one lead in and one lead out in a single operation. Recommended for leads and wires .025" in diameter or smaller, it features an ergonomically molded, antimicrobial anti-static grip with dual leaf springs for comfortable, repeatable use.
Sold individually.
Specifications
| Manufacturer | Excelta |
| Part Number | 554TXB-US |
| Type | Stress relief / lock-in lead forming plier |
| 1st Bend | .030" |
| Overall Length | 5" |
| Lead Capacity | Recommended for .025" diameter leads/wires or smaller |
| Forming Action | Forms one lead in and one lead out in a single operation |
| Grip | Ergonomic antimicrobial anti-static grip (1010 ohms/sq surface resistivity) with dual leaf springs |
Frequently Asked Questions
What is the Excelta 554TXB-US used for?
It forms stress relief in radial-lead components, bending one lead in and one lead out in a single squeeze. This protects solder joints from mechanical stress during board assembly.
What lead sizes does it handle?
The 554TXB-US is recommended for leads and wires .025" in diameter or smaller, with a .030" first bend.
Is the grip ESD-safe?
Yes. It has an ergonomically molded antimicrobial anti-static grip rated at 1010 ohms/sq surface resistivity, with dual leaf springs for smooth operation.
How long is the plier?
The 554TXB-US has a 5" overall length.
