Excelta 4000-ST Standard Performance Vacuum System for SMT & Electronics Assembly
Excelta 4000-ST — Standard Performance Vacuum System | SMT & Electronics Assembly

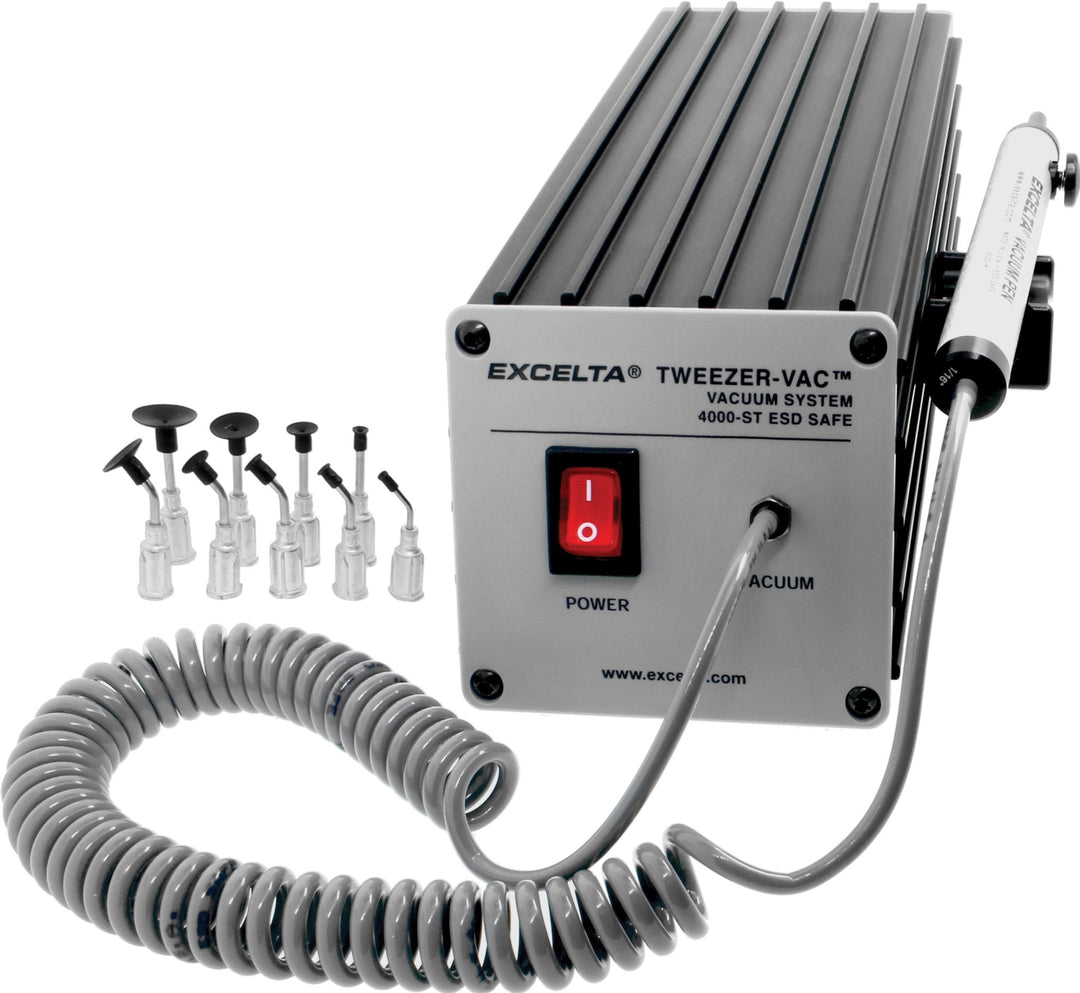

The Excelta 4000-ST is a standard performance electric vacuum system designed for surface mount technology (SMT) component pick-and-place, PCB assembly, rework, and precision electronics manufacturing. The 4000-ST delivers consistent, controllable suction for accurate handling of SMT components, ICs, BGAs, and other delicate electronic parts. Part of Excelta's proven 4000 series vacuum systems, trusted in electronics production and rework environments worldwide.
Includes handpiece, hose, vacuum cups, and air filter. Replacement parts available separately.
Specifications
| Model | 4000-ST |
|---|---|
| Series | Excelta 4000 Series |
| Type | Standard Performance Electric Vacuum System |
| Primary Application | SMT component pick-and-place, PCB assembly and rework |
| Includes | Handpiece (4000-H), hose (4000-RH), vacuum cups, air filter (4000-RF) |
| Replacement Hose | Excelta 4000-RH (available separately) |
| Replacement Air Filter | Excelta 4000-RF (available separately) |
| Replacement Handpiece | Excelta 4000-H (available separately) |
| Made In | USA |
| Manufacturer | Excelta Corporation |
Download Excelta 4000-ST Technical Data Sheet (PDF)
Key Features
- Standard performance suction — consistent, controllable vacuum for reliable component pick-and-place on SMT production and rework lines
- Ergonomic handpiece design — comfortable for extended production use; reduces operator fatigue during high-volume assembly tasks
- Complete system included — handpiece, hose, vacuum cups, and air filter included; ready to use out of the box
- Replaceable components — hose, handpiece, and air filter all available as separate replacement parts for long service life
- Precision component compatibility — suitable for SMT components, ICs, BGAs, QFNs, and other delicate electronic parts
- Made in USA — Excelta Corporation manufacturing for consistent quality and domestic sourcing compliance
Industries & Applications
- SMT electronics manufacturing — pick-and-place of surface mount components during PCB assembly
- PCB rework and repair — component removal, placement, and repositioning during rework operations
- Electronics contract manufacturing (EMS/CEM) — high-mix, high-volume component handling on production lines
- Semiconductor handling — careful placement and transfer of ICs and sensitive semiconductor devices
- R&D and prototype assembly — precise component placement in laboratory and engineering environments
- Inspection and quality control — component manipulation during optical inspection and quality verification
Excelta 4000 Series Replacement Parts
| Part Number | Description |
|---|---|
| 4000-ST | Complete vacuum system — this listing |
| 4000-H | Replacement handpiece |
| 4000-RH | Replacement hose |
| 4000-RF | Replacement air filter |
Frequently Asked Questions
What is included with the Excelta 4000-ST vacuum system?
The 4000-ST includes the vacuum unit, handpiece (4000-H), hose (4000-RH), vacuum cups, and air filter (4000-RF). All components needed for immediate use are included. Replacement parts for all included components are available separately from MTE Solutions.
What replacement parts are available for the 4000-ST?
Excelta offers a complete range of replacement parts for the 4000 series: the 4000-RH replacement hose, 4000-RF replacement air filter, and 4000-H handpiece are all available separately at MTE Solutions. Regular air filter replacement is recommended to maintain consistent suction performance.
What size components can the 4000-ST handle?
The 4000-ST is suitable for a wide range of SMT components including 0402 and larger passives, ICs, BGAs, QFNs, SOICs, and other surface mount packages. Vacuum cup selection determines the range of component sizes and geometries the system can handle. Multiple cup sizes are typically included or available as accessories.
What is the difference between the 4000-ST and higher-performance Excelta vacuum systems?
The 4000-ST is the standard performance model in the Excelta 4000 series, suited for most SMT assembly and rework applications. Higher-performance models offer increased suction capacity for larger or heavier components or more demanding production environments. Contact MTE Solutions at 651.600.3838 to determine which model best fits your application.
Is the 4000-ST suitable for BGA component handling?
Yes — with appropriate vacuum cup selection, the 4000-ST can handle BGA packages for placement and rework operations. For high-volume BGA rework requiring precise temperature control, the vacuum system is typically used in conjunction with a rework station such as the JBC Tools rework systems also available at MTE Solutions.
