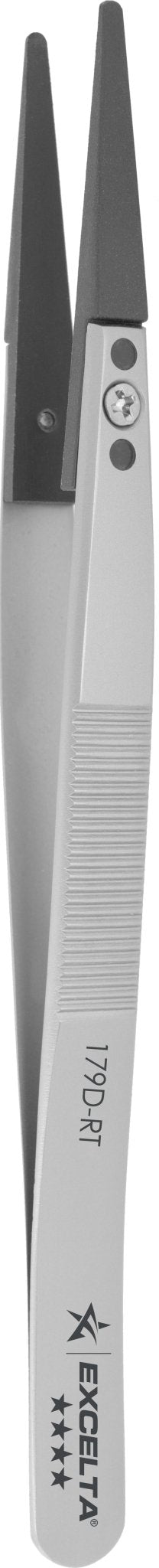

Excelta 179D-RT Tweezers - Replaceable Copolymer .08" X .025" Tip - Straight
Excelta 179D-RT Tweezers – Replaceable Copolymer Tip, Straight
The Excelta 179D-RT features straight replaceable copolymer tips with a wider .080" x .025" profile, making them well-suited for gripping larger or flat components in ESD-sensitive and cleanroom environments. The anti-magnetic stainless steel body provides precision and durability session after session.
Key Specifications
| Part Number | 179D-RT |
| Overall Length | 5.125" |
| Tip Width | .080" x .025" |
| Tip Style | Straight, Replaceable Copolymer |
| Body Material | Neverust® Stainless Steel (AISI 316L), Anti-Magnetic |
| ESD Safe | Yes – 10⁶–10⁷ ohms/sq |
| Temperature Resistance | Up to 195°F (90°C) |
| Silicone/Chloride Free | Yes |
| Cleanroom Safe | Yes |
| Replacement Tips Include | 2 tips + 2 screws |
Features
- Wider .080" tip profile ideal for gripping larger flat or surface-mount components
- Replaceable copolymer tips extend tool life and reduce replacement cost
- ESD-safe construction protects sensitive electronic components
- 316L stainless steel body resists corrosion and magnetism
- Temperature resistant tips safe for reflow-adjacent environments
- Silicone and chloride free — compatible with cleanroom protocols
179A-RT vs. 179D-RT – Which Tip Width Do You Need?
| Model | Tip Width | Best For |
| 179A-RT | .020" x .010" | Fine, narrow components and wires |
| 179D-RT | .080" x .025" | Wider, flat, or larger SMT components |
Frequently Asked Questions
Q: Are replacement tips sold separately?
A: Yes. Each replacement tip set includes 2 tips and 2 screws.
Q: What ESD resistance level do the copolymer tips provide?
A: The tips measure 10⁶–10⁷ ohms/sq, qualifying as ESD-safe for sensitive component handling.
Q: Can these be used in a cleanroom?
A: Yes. The copolymer tips are silicone and chloride free, making them suitable for cleanroom environments.
Q: What is the maximum temperature the tips can withstand?
A: The tips are rated to 195°F (90°C).
Q: How does the 179D-RT differ from the 179A-RT?
A: The 179D-RT has a wider .080" tip versus the 179A-RT’s .020" tip, making it better suited for handling larger or flatter components.
