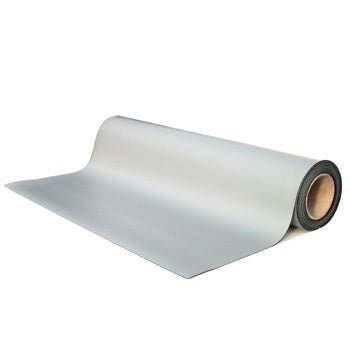

Transforming Technologies MT4524GY Two-Layer Rubber ESD Table Mat Roll, 24 in x 50 ft x 0.080 in, Gray
Transforming Technologies MT4524GY Two-Layer Rubber ESD Table Mat Roll, 24" x 50 ft, Gray
The Transforming Technologies MT4524GY is a premium 0.080" thick 2-ply rubber ESD table mat roll designed for electronics assembly, rework, and inspection workstations requiring additional durability. The MT4500 series combines a static dissipative colored top layer with a conductive black bottom layer for outstanding static eliminating performance that meets or exceeds ANSI/ESD S20.20 requirements.
Specifications
| Spec | Value |
|---|---|
| Part Number | MT4524GY |
| Series | MT4500 |
| Material | 2-ply rubber |
| Thickness | 0.080" |
| Roll Size | 24" x 50 ft |
| Color | Gray |
| Surface Resistance | <1.0×10⁹ Ω |
| Compliance | Meets/exceeds ANSI/ESD S20.20 per ANSI/ESD STM4.1 |
| Colors Available | NASA Blue, Royal Blue, Green, Gray |
| Widths Available | 24", 30", 36" |
Key Features
- 0.080" Thick 2-Ply Rubber: Thicker than the MT2500 series — ideal for high-use production environments where durability is critical.
- Conductive Bottom + Dissipative Top: Outstanding static eliminating performance with reliable grounding path.
- Solvent & Heat Resistant: Excellent resistance to hot solder, soldering irons, and most solvents.
- ANSI/ESD S20.20 Compliant: Independently tested and meets or exceeds all industry standards for ESD worksurfaces.
- Roll Format: 50 ft rolls for custom cutting to fit any bench length or configuration.
Frequently Asked Questions
What is the difference between the MT4500 and MT2500 series?
The MT4500 series is 0.080" thick — 20% thicker than the MT2500 (0.060"). The extra thickness provides greater durability and cushioning for high-throughput production environments. Both series meet ANSI/ESD S20.20 and offer the same electrical performance.
Does this mat need to be grounded to work?
Yes — the mat must be connected to a verified common point ground via a ground cord attached to the 10mm snap. Without grounding, the mat provides no ESD protection. The conductive bottom layer is also compatible with continuous workstation monitors.
What widths and colors are available?
The MT4500 series is available in 24", 30", and 36" widths in NASA Blue, Royal Blue, Green, and Gray.
Can I cut this roll to a custom length?
Yes — the 50 ft roll format is designed for custom cutting. Snaps are added during cutting for ground cord attachment.
Is this mat compatible with a continuous workstation monitor?
Yes. The conductive bottom layer supports continuous monitoring systems that verify both wrist strap and mat ground paths simultaneously — a requirement for many ANSI/ESD S20.20 audit programs.
