Transforming Technologies 7110.600.SET.WT, ESD Audit Kit With Metriso 3000 With Walking Test
Transforming Technologies 7110.600.SET.WT — ESD Audit Kit with Metriso 3000 | Walking Test | ANSI/ESD S20.20 & IEC 61340-5-1

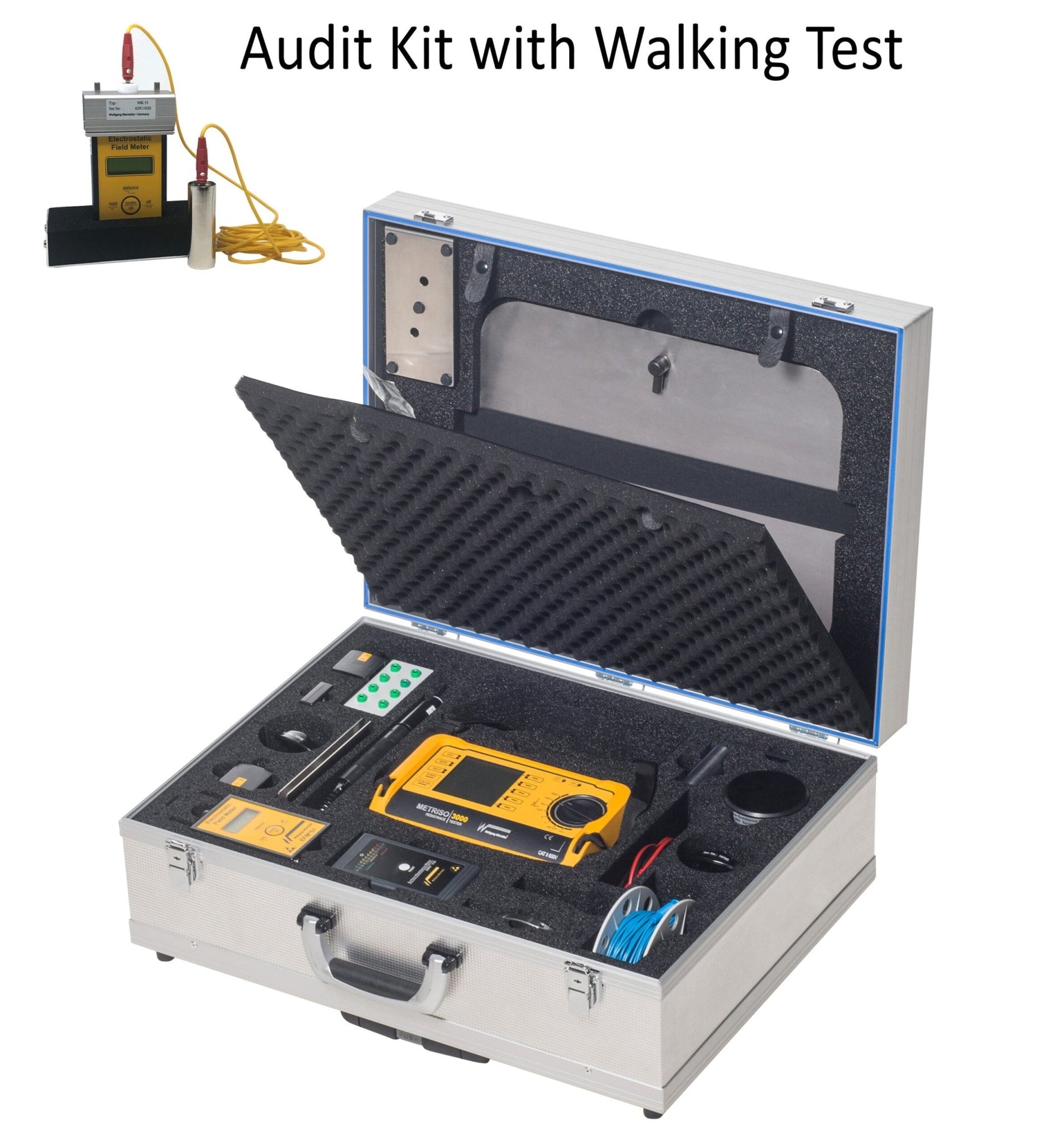

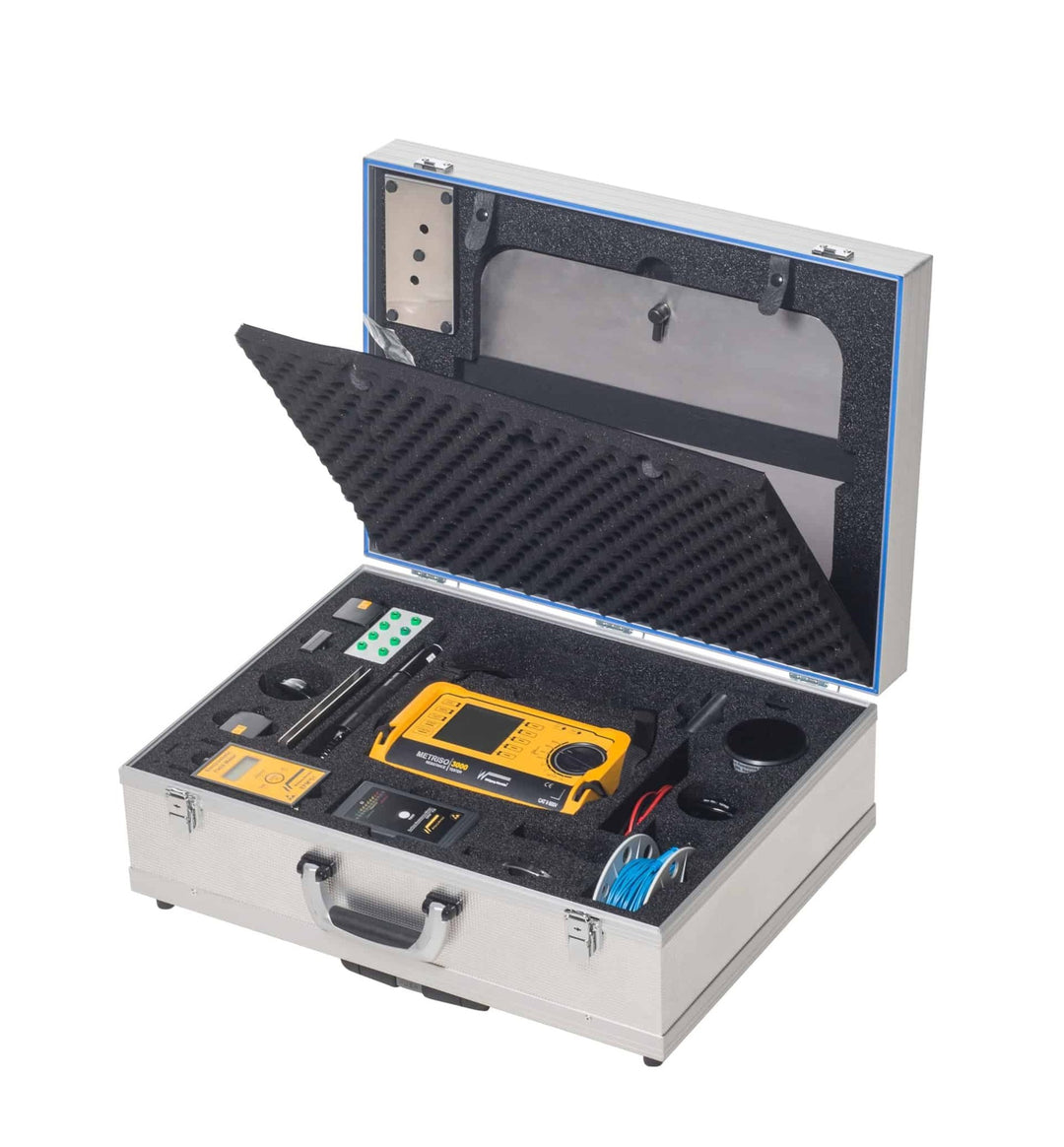

The Transforming Technologies 7110.600.SET.WT ESD Audit Kit provides a comprehensive set of instruments and equipment for performing complete ESD audits and qualifying or verifying ESD control elements in accordance with ANSI/ESD S20.20 and IEC 61340-5-1. The kit includes the Metriso 3000 resistance meter with walking test capability — enabling operators to audit flooring, workstation surfaces, wrist straps, footwear, garments, packaging, and other EPA control elements from a single kit. Ideal for ESD program managers, compliance engineers, and third-party auditors requiring a traceable, standard-compliant audit toolkit.
Part Number: 7110.600.SET.WT | Includes: Metriso 3000 + Walking Test | Standards: ANSI/ESD S20.20, IEC 61340-5-1 | Manufacturer: Transforming Technologies (Warmbier)
Specifications
| Part Number | 7110.600.SET.WT |
| Kit Type | ESD Audit Kit with Walking Test |
| Primary Instrument | Metriso 3000 ESD resistance meter |
| Walking Test | Included |
| Standards Supported | ANSI/ESD S20.20, IEC 61340-5-1 |
| Application | ESD audit, qualification, and verification of EPA control elements |
| Manufacturer | Transforming Technologies (Warmbier) |
Key Features
- Complete audit instrumentation — all instruments and accessories needed to audit ESD control elements per ANSI/ESD S20.20 and IEC 61340-5-1 in a single kit
- Metriso 3000 resistance meter — precision ESD resistance measurement for surfaces, wrist straps, footwear, flooring, garments, and packaging materials
- Walking test included — enables body voltage and charge generation testing during normal walking motion to qualify flooring and footwear combinations per ESD program requirements
- ANSI/ESD S20.20 & IEC 61340-5-1 compliant — supports both the US and international ESD program standards for EPA qualification and audit
- Warmbier instrumentation — manufactured by Transforming Technologies in partnership with Warmbier, a leading ESD measurement instrument brand
Industries & Applications
- Electronics manufacturing — annual and periodic ESD program audits for ANSI/ESD S20.20 certified EPAs
- Semiconductor and microelectronics — qualification of cleanroom and EPA control elements including flooring, garments, and packaging
- Defense and aerospace electronics — ESD program verification per IEC 61340-5-1 and ANSI/ESD S20.20
- Contract electronics manufacturing (CEM) — customer audit support and internal ESD program compliance verification
- ESD program consultants and third-party auditors — portable comprehensive audit kit for multi-site ESD program assessments
Frequently Asked Questions
What ESD control elements can be audited with the 7110.600.SET.WT kit?
The kit supports auditing of all primary ESD control elements required under ANSI/ESD S20.20 and IEC 61340-5-1, including: ESD flooring and floor finishes, wrist straps and wrist strap monitors, ESD footwear and foot grounders, workstation surfaces and mats, ESD garments, and ESD packaging materials. The walking test component specifically supports body voltage and charge generation testing for flooring and footwear qualification.
What is the walking test and why is it important for ESD audits?
The walking test measures the body voltage generated by a person walking on a floor surface while wearing ESD footwear. ANSI/ESD S20.20 and IEC 61340-5-1 require that the flooring/footwear system limit body voltage generation to ≤100V. The walking test in the 7110.600.SET.WT kit allows auditors to verify this combination meets the required limit under actual walking conditions, not just static resistance measurements.
What is the Metriso 3000 and what does it measure?
The Metriso 3000 is a precision ESD resistance meter from Warmbier designed specifically for measuring resistances in ESD-controlled environments. It measures point-to-point (Rtt) and resistance-to-ground (Rtg) on surfaces, mats, flooring, wrist straps, footwear, and packaging materials across the full ESD-relevant resistance range (<10⁴ to >10¹¹ ohms).
Is this kit suitable for ANSI/ESD S20.20 certification audits?
Yes — the 7110.600.SET.WT is specifically designed to provide the instrumentation required to perform qualification and verification audits per ANSI/ESD S20.20 and IEC 61340-5-1. For formal S20.20 certification, audits must be conducted by an accredited third-party certification body; this kit provides the measurement tools required for that process as well as for internal ESD program audits.
Does the kit include calibration documentation?
Contact MTE Solutions for current calibration and traceable documentation details for the 7110.600.SET.WT kit. Calibration certificates and traceable measurement documentation are typically available for Warmbier/Transforming Technologies instruments to support formal audit and certification requirements.
