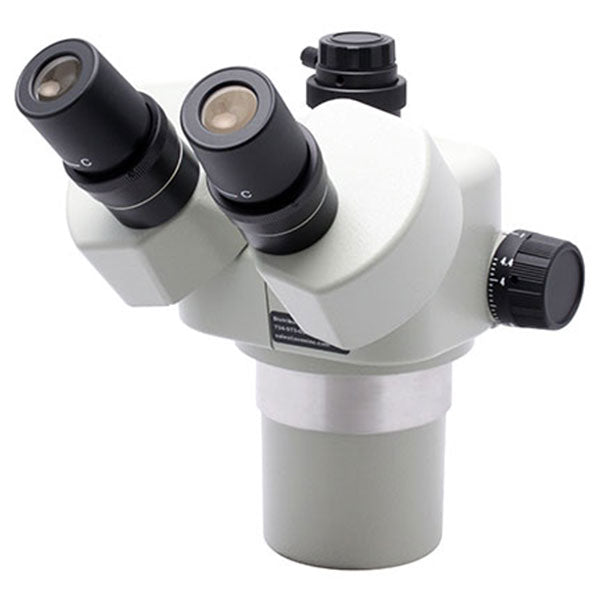

The Aven DSZV-44 is a trinocular stereo zoom microscope body with a 10x–44x magnification range, a 4.4:1 zoom ratio, wide-field eyepieces, and a C-mount camera port. Its trinocular design lets an operator view a three-dimensional image through the eyepieces while using the third optical path for compatible image capture or documentation equipment.

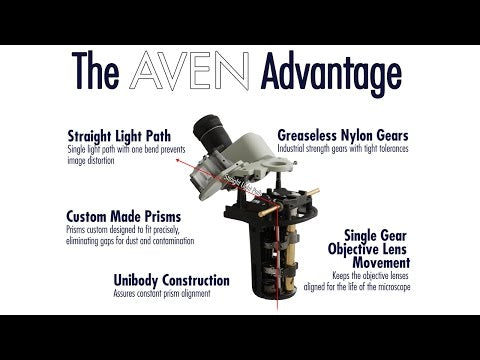

Key Features
- 10x–44x primary magnification: Supports general inspection through closer examination of fine details.
- Trinocular viewing head: Provides binocular stereo viewing plus a third optical path for a compatible camera.
- C-mount camera port: Supports compatible camera and documentation setups; camera is not included with this microscope body.
- 4.4:1 zoom ratio: Provides smooth magnification adjustment across the primary range.
- Wide-field 10x eyepieces: The supplied eyepieces have a field number of 23.
- 360° rotatable body: Supports flexible viewing orientation.
- 45° inclined eyepiece tubes: Help provide a comfortable working position.
- Greenough optical system: Delivers stereo depth perception for inspection work.
Applications
Use this microscope body for electronics inspection, assembly, rework support, manufacturing inspection, quality control, laboratory work, precision repair, and documentation. Pair it with a compatible stand, illumination system, and C-mount camera when building a complete inspection workstation.
Specifications
| Specification | Details |
|---|---|
| Brand | Aven Tools |
| Part number | DSZV-44 |
| Microscope type | Trinocular stereo zoom microscope |
| Primary magnification range | 10x–44x |
| Zoom ratio | 4.4:1 |
| Field of view | 23 mm to 5.2 mm |
| Working distance | 90 mm without an auxiliary lens |
| Eyepieces included | Two 10x wide-field eyepieces, field number 23 |
| Eyepiece tube | 45° inclined and 360° rotatable |
| Camera interface | C-mount camera port |
| Interpupillary distance | Adjustable from 52 mm to 75 mm |
| Diopter adjustment | Provided on both eyepiece tubes; listed range is +5.6D to −0.72D |
| Optical system | Greenough |
Optional Eyepieces and Auxiliary Lenses
The DSZV-44 body can be configured with optional eyepieces and auxiliary lenses. Confirm the selected optical combination and resulting working distance before ordering.
- Optional eyepieces: 15x with field number 15 and 20x with field number 11.4.
- Optional auxiliary lenses: 0.5x, 0.75x, and 1.6x.
- Listed working distances with auxiliary lenses: 150 mm with 0.5x, 105 mm with 0.75x, and 45 mm with 1.6x.
Package Contents
- DSZV-44 trinocular stereo zoom microscope body
- Two 10x eyepieces
- Two rubber eyeguards
- Dust cover
- Instruction manual
Frequently Asked Questions
What is the magnification range?
The primary magnification range is 10x–44x with the supplied 10x eyepieces. Optional eyepieces and auxiliary lenses can change the final system magnification.
Is the DSZV-44 binocular or trinocular?
The DSZV-44 is trinocular. It provides stereo viewing through the eyepieces and a third optical path for a compatible camera.
Does this product include a camera?
No. The microscope body has a C-mount camera port, but a compatible camera and any required adapter must be selected separately.
What working distance does it provide?
The listed working distance is 90 mm without an auxiliary lens. Optional lenses change the working distance, including 150 mm with 0.5x, 105 mm with 0.75x, and 45 mm with 1.6x.
What eyepieces are included?
The package includes two 10x wide-field eyepieces with a field number of 23.
Does this product include a stand or light?
This listing is for the DSZV-44 microscope body and its listed eyepieces and accessories. A stand and illumination should be selected separately to create a complete inspection system.
What type of work is this microscope suited to?
It is suited to electronics inspection, assembly, manufacturing inspection, quality control, laboratory work, precision repair, and image documentation with a compatible camera setup.
