Desco 82101, Disposable ESD Mat, 14 in x 22 in x .060 in

Desco 82101,  Disposable ESD Mat, 14 in x 22 in x .060 in

• Disposable Fiberboard with Internal Conductive Layer
• Protects worksurfaces from solder, conformal coating, or other chemicals that will damage ESD rubber and vinyl mats.
• Dissipative Worksurface - 10E6 - 10E8 ohms Rtt per ANSI/ESD S4.1
  Controls charge removal from ESD susceptible items; meets ANSI/ESD S20.20 worksurface required limit.
• Volume Resistance 10E6 – 10E7 ohms per ANSI/ESD STM11.12
  Allows the mat to electrically couple to the grounded ESD mat it is being placed on without a separate ground cord for the Disposable ESD Mat.
• 0.060” Material Thickness
  Allows mat to be used on top of another ESD worksurface.
• Recyclable
  Made with 100% recycled material and can be disposed of in standard paper recycling bins.*
• Made in the United States of America

Technical Data Sheet

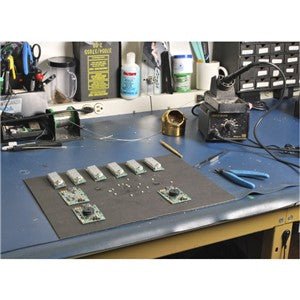

Desco’s Disposable ESD Mat meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD STM4.1-2017 for contact with ESD susceptible items. The material is intended to be a sacrificial material to protect a more expensive worksurfaces from damage caused by conformal coating, solder fluxes, or other contaminates. The material is made from a 100% recyclable dissipative impregnated worksurface material and has an internal conductive layer so that it does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface. The mat may be grounded by placing it onto an already grounded ESD worksurface.
