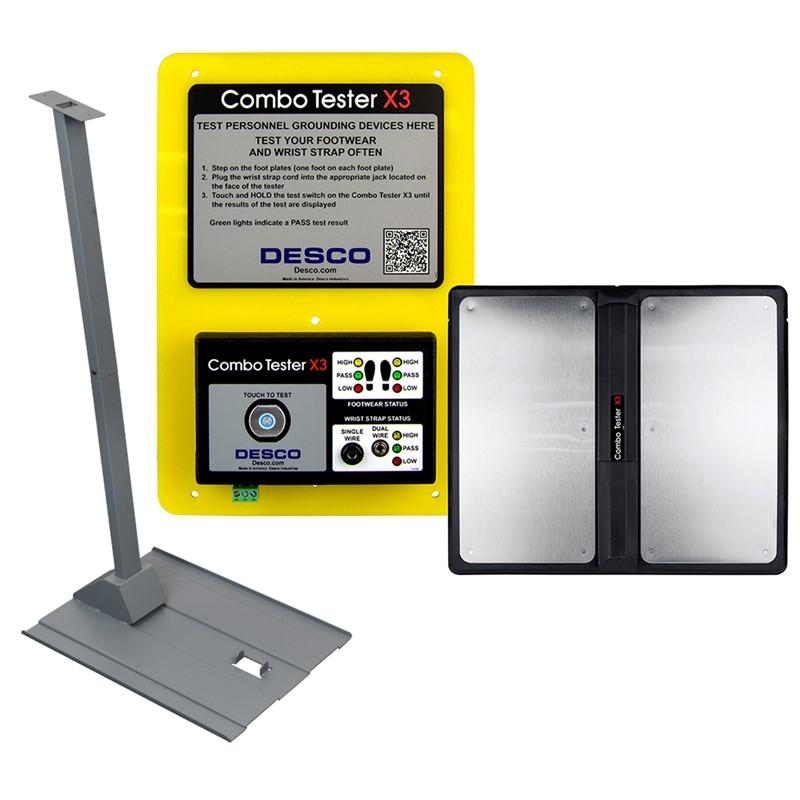

Desco 19271 Combo Tester X3, With Stand
Desco 19271 Combo Tester X3, With Stand
The Desco 19271 Combo Tester X3 with Stand is an advanced combination wrist strap and footwear ESD tester with integrated data logging — designed for facilities that require audit trail documentation of operator grounding compliance. The X3 platform tests wrist straps and both foot grounders simultaneously, provides pass/fail LED indication, and logs test results with operator ID and timestamp for ANSI/ESD S20.20 audit compliance. The included stand positions the tester at operator height for convenient use at EPA entry points.
Specifications
| Spec | Value |
|---|---|
| SKU | 19271 |
| Brand | Desco |
| Platform | Combo Tester X3 |
| Test Functions | Wrist strap + footwear (combo) |
| Display | Pass/Fail LED indication |
| Data Logging | Yes — operator ID + timestamp |
| Stand | Included |
| Wrist Strap Test Range | 750 kΩ to 35 MΩ (with 1 MΩ resistor) |
| Footwear Test Range | 750 kΩ to 35 MΩ (per foot) |
| Compliance | ANSI/ESD S20.20, ANSI/ESD STM97.1 |
| Connectivity | USB data export |
| Power | AC adapter (included) |
| Stock Location | Canton, MA |
Key Features
- Data Logging with Operator ID: Records each test result with operator ID and timestamp — provides the audit trail documentation required for ANSI/ESD S20.20 compliance audits.
- X3 Platform: Advanced combo tester platform with enhanced logging and connectivity vs. the standard 19280/19282 series.
- Simultaneous Wrist Strap + Footwear Testing: Tests both wrist strap and both foot grounders in a single test cycle.
- Integrated Stand: Positions the tester at operator height for convenient EPA entry point use — no bench required.
- USB Data Export: Export test logs for record-keeping, audit preparation, and compliance documentation.
- Pass/Fail LED Indication: Clear, unambiguous pass/fail display for operators.
- ANSI/ESD S20.20 Compliant: Test ranges meet S20.20 personnel grounding verification requirements per ANSI/ESD STM97.1.
Frequently Asked Questions
What is the difference between the Desco 19271 and the Desco 19282?
Both are combo wrist strap and footwear testers with stands. The key difference is the X3 platform on the 19271, which adds data logging with operator ID and timestamp, and USB data export for audit trail documentation. The 19282 provides pass/fail LED indication only with no logging. Choose the 19271 if your ANSI/ESD S20.20 program requires documented test records; choose the 19282 for basic pass/fail verification without logging.
What is the difference between the Desco 19271 and the Desco 19270?
Both are X3 platform combo testers with data logging. The 19271 includes a stand for freestanding EPA entry point use. The 19270 includes a dual foot plate configuration instead of a stand. Choose based on your facility layout and how operators will interact with the tester.
Is the Desco 19271 compliant with ANSI/ESD S20.20?
Yes. The 19271 test ranges meet ANSI/ESD S20.20 personnel grounding verification requirements, tested per ANSI/ESD STM97.1. The data logging capability supports the audit trail documentation requirements of a formal ANSI/ESD S20.20 ESD control program.
How does the data logging work on the Desco 19271?
Operators enter their ID before testing. The 19271 records the operator ID, test result (pass/fail), and timestamp for each test cycle. Data is stored internally and can be exported via USB for record-keeping and audit preparation.
