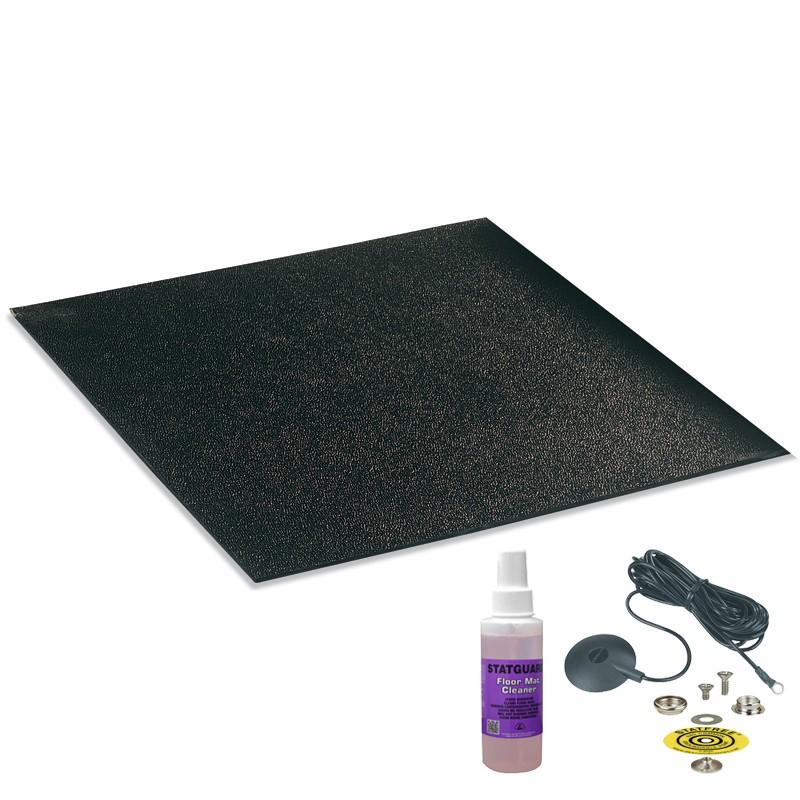

Desco Industries 15014 - Statfree CV280 Conductive Floor Mat Kit, 48 in x 72 in x 0.080 in
Desco 15014 — Statfree CV280 Conductive ESD Floor Mat Kit, Black, 48" × 72" × .080"
The Desco 15014 Statfree CV280 is a complete conductive PVC floor mat kit for large single-workstation or two-operator ESD floor grounding installations. The kit includes the 48" × 72" conductive floor mat and the Desco 14234 ground cord — ready to install as a compliant ESD flooring element without sourcing accessories separately. The pebble-embossed conductive surface maintains low resistance even with normal accumulation of dirt and grime. Lays flat without curling — suitable for standing workstations, under chairs, and under carts. Meets ANSI/ESD S20.20 Method 1 flooring/footwear system requirements. Made in the USA.
Key Specifications
| SKU / Part Number | 15014 |
| Series | Statfree CV280 |
| Format | Mat Kit (mat + 14234 ground cord) |
| Material | Conductive PVC |
| Color | Black |
| Dimensions | 48 in × 72 in × .080 in |
| Surface Texture | Pebble embossed |
| Surface Resistance (Rtt) | Conductive: <1 × 10⁶ Ω per ANSI/ESD S7.1 and ESD TR53 |
| System Compliance | Meets ANSI/ESD S20.20 Method 1 (<3.5 × 10⁷ Ω) for flooring/footwear system |
| Included Accessories | Desco 14234 ground cord |
| Compliance | RoHS compliant |
| Lot Traceability | Yes |
| Origin | Made in USA |
Download Technical Datasheet (PM-130)
⚠️ California Proposition 65 Warning: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Key Features
- Complete Kit — Includes 14234 Ground Cord: Mat and Desco 14234 ground cord included. Ready to install as a compliant ESD floor grounding solution for large workstations or two-operator zones without sourcing accessories separately.
- 48" × 72" Large Format: Covers a full large workstation or shared two-operator floor zone. For smaller single-workstation coverage, see the Desco 15013 (36" × 48" kit).
- Conductive PVC Floor Surface: Provides a flooring surface that does not generate static charge and acts as part of the path to ground for operators wearing ESD footwear. Required element of a compliant ANSI/ESD S20.20 flooring/footwear system.
- Pebble Embossed Surface: Conductive surface resistance remains low even with normal build-up of dirt and grime, ensuring reliable ESD performance throughout service life.
- Lays Flat — Edges Will Not Curl: Designed for high-traffic production areas. Suitable for use under chairs, rolling carts, and at standing workstations without edge lift or trip hazards.
- Works with ESD Floor Tiles and ESD Floor Finishes: Use to protect and minimize maintenance of existing ESD flooring tiles and finish in high-wear zones.
- Lot Traceability: Lot coding information provides tracking for product lifespan and quality control documentation.
- RoHS Compliant. Made in USA.
Frequently Asked Questions
What is included in the Desco 15014 floor mat kit?
The 15014 kit includes the Statfree CV280 conductive PVC floor mat (48" × 72" × .080") and the Desco 14234 ground cord. The 14234 ground cord connects the mat to a common point ground, completing the ESD floor grounding path without needing to source accessories separately.
What is the difference between the 15014 and the 15013 floor mat kits?
Both kits include the CV280 conductive PVC floor mat and the Desco 14234 ground cord. The 15014 is 48" × 72" — sized for large workstations or shared two-operator zones. The 15013 is 36" × 48" — sized for compact single-operator workstations. Both meet ANSI/ESD S20.20 Method 1 flooring/footwear system requirements.
Does this floor mat work without ESD footwear?
No. The CV280 conductive floor mat is one element of a flooring/footwear system. The path to ground is only complete when the operator is wearing ESD footwear (heel grounders, ESD shoes, or foot grounders) that makes electrical contact with the conductive floor surface. Standard footwear with insulating soles will not complete the ground path.
