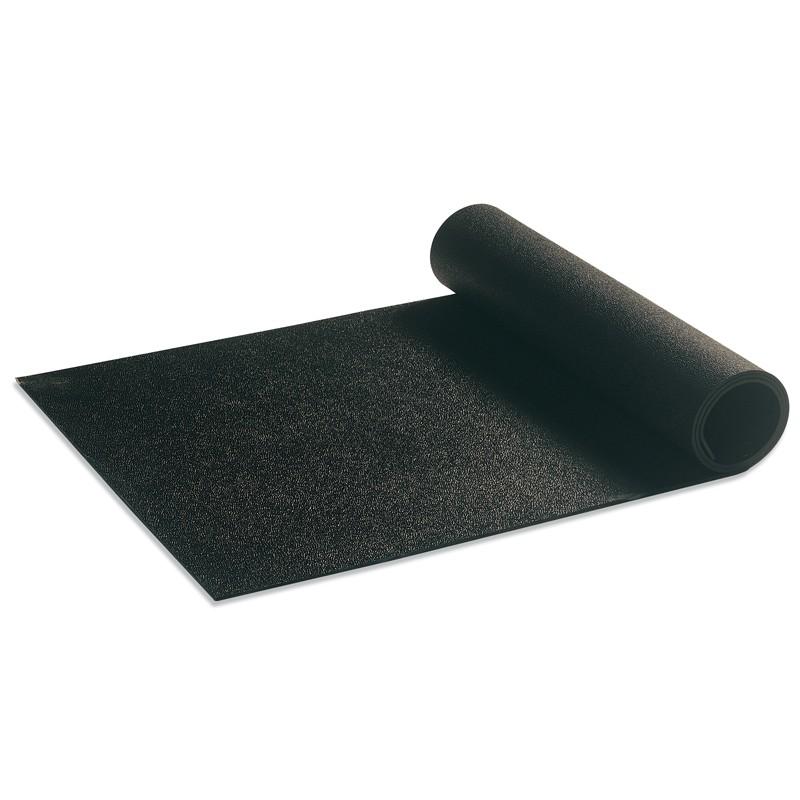

Desco Industries 15011 - Statfree CV280 Conductive Roll, Black, 48 in x 40 ft x 0.080 in
Desco 15011 — Statfree CV280 Conductive ESD Floor Roll, Black, 48" × 40' × .080"
The Desco 15011 Statfree CV280 is a conductive PVC floor matting roll designed to provide a compliant ESD flooring surface for operators wearing ESD footwear. The 48" × 40' roll covers wide aisle and large-area floor zones and can be cut to any required length. The pebble-embossed conductive surface maintains low resistance even with normal accumulation of dirt and grime, ensuring a reliable path to ground throughout service life. Lays flat without curling — suitable for high-traffic areas, under chairs, and under carts. Meets ANSI/ESD S20.20 Method 1 flooring/footwear system requirements. Made in the USA.
Key Specifications
| SKU / Part Number | 15011 |
| Series | Statfree CV280 |
| Format | Roll (custom-cut to length; ground cord not included) |
| Material | Conductive PVC |
| Color | Black |
| Dimensions | 48 in × 40 ft × .080 in |
| Surface Texture | Pebble embossed |
| Surface Resistance (Rtt) | Conductive: <1 × 10⁶ Ω per ANSI/ESD S7.1 and ESD TR53 |
| System Compliance | Meets ANSI/ESD S20.20 Method 1 (<3.5 × 10⁷ Ω) for flooring/footwear system |
| Compliance | RoHS compliant |
| Lot Traceability | Yes |
| Origin | Made in USA |
Download Technical Datasheet (PM-130)
Key Features
- Conductive PVC Floor Surface: Provides a flooring surface that does not generate static charge and acts as part of the path to ground for operators wearing ESD footwear. Required element of a compliant ANSI/ESD S20.20 flooring/footwear system.
- Pebble Embossed Surface: Conductive surface resistance remains low even with normal build-up of dirt and grime, ensuring reliable ESD performance throughout service life in production environments.
- Lays Flat — Edges Will Not Curl: Designed for high-traffic production areas. Suitable for use under chairs, rolling carts, and at standing workstations without edge lift or trip hazards.
- Works with ESD Floor Tiles and ESD Floor Finishes: Use to protect and minimize maintenance of existing ESD flooring tiles and finish in high-wear zones.
- 48" Width × 40' Length: Covers wide aisle and large-area floor zones. Can be cut to any required length. For longer coverage, see the Desco 15012 (48" × 60' roll).
- Lot Traceability: Lot coding information provides tracking for product lifespan and quality control documentation.
- RoHS Compliant. Made in USA.
Frequently Asked Questions
Does the Desco 15011 include a ground cord?
No. The 15011 is the roll only — a ground cord must be purchased separately. If you need a pre-cut mat with ground cord included, see the Desco 15013 floor mat kit (36" × 48"). For the same 48" width in a longer 60' roll, see the Desco 15012.
Does this floor mat work without ESD footwear?
No. The CV280 conductive floor mat is one element of a flooring/footwear system. The path to ground is only complete when the operator is wearing ESD footwear (heel grounders, ESD shoes, or foot grounders) that makes electrical contact with the conductive floor surface. Standard footwear with insulating soles will not complete the ground path.
Can the CV280 roll be cut to a custom length?
Yes. The 40-foot roll can be cut to any required floor zone length with standard utility or mat cutting tools. Cut edges do not affect ESD performance of the remaining material.
