Transforming Technologies 7100.PGT120.COM.DT3, Data Terminal With Integrated RFID And Screen For PGT120.Com

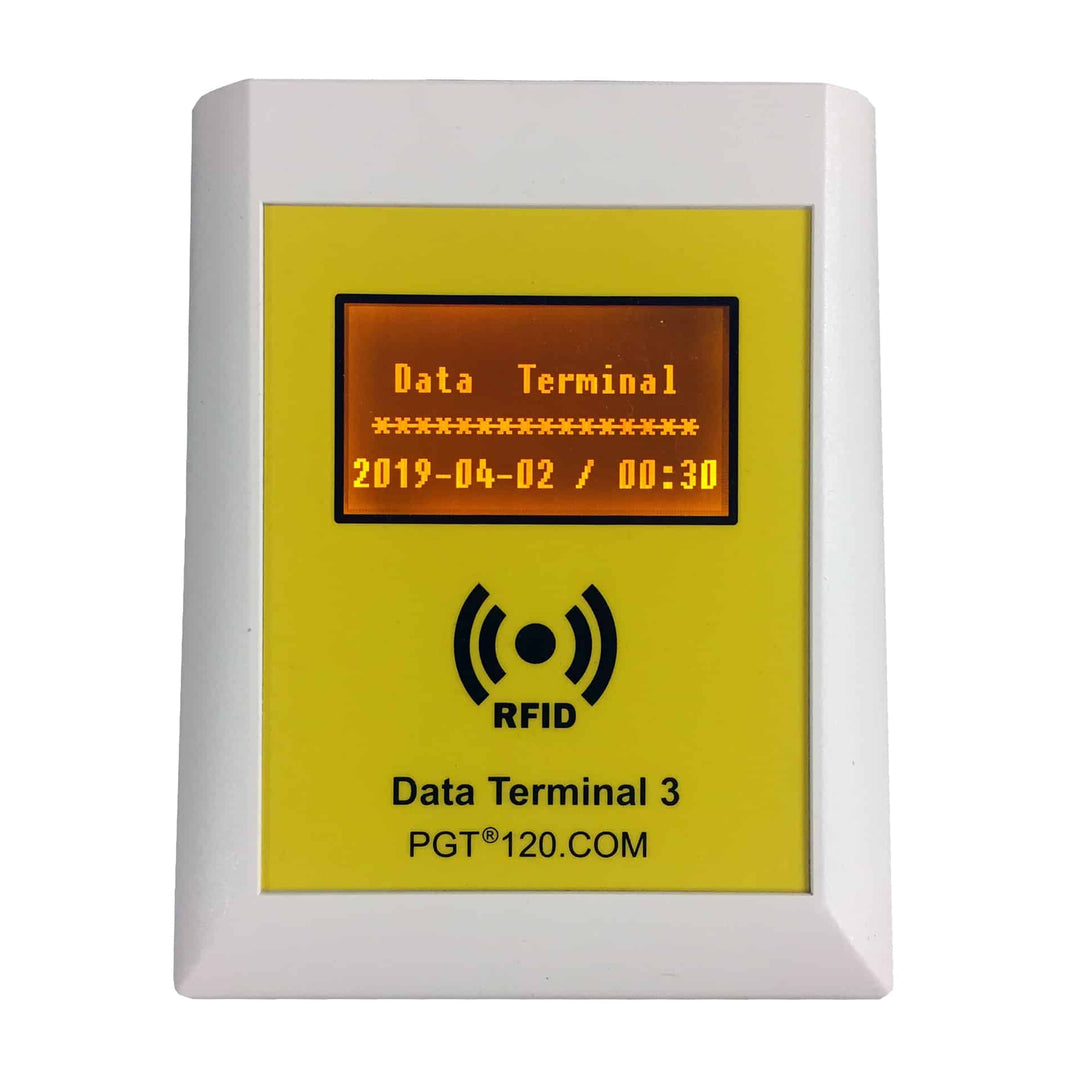

Warmbier 7100.PGT120.COM.DT3 Data Terminal with RFID For the PGT120.COM
- Turns the PGT120.COM tester into a "Smart" ESD Combo tester that integrates with a computer to record test results into a database
- Built-in RFID reader that can be used for employee information
- Existing identity cards or time attendance cards can be used*
- Multiple PGT120.COM stations can be networked
- Can work with existing access systems such as turnstiles, doors, barriors
- Secure network communication
- Must be used with the PGT120.COM tester from Wolfgang Warmbier
The Warmbier 7100.PGT120.COM.DT3 Data Terminal with RFID For the PGT120.COM creates a data logging ESD tester system that can integrate many USB accessories.
Pair the PGT120.COM tester unit with the PGT120.COM Data Terminal3 and you receive real-time ESD testing with personnel identification, access control and central data maintenance. The DT3 has a built in RFID reader, LCD display and relay. Also allows the connection to a number of accessories such as a label printer, bar code scanner, RFID, database server and much more.
- Ready to integrate into existing infrastructure
- Multiple PGT120.COM stations can be networked
- Existing identity cards or time attendance cards can be re-used
- Open database interface
- Measurement data is ready to process after a few seconds
- Various databases can be used in combination with existing access systems is possible
- Secure network communication
Specifications:
Interface ports:
4 x USB (max. 600 mA)
1 x D-SUB9 for PGT120.COM
1 x RJ45 – LAN
1 x RJ12 – Relay
1 x Micro USB – RFID Reader
1 x Micro USB – POWER 5VDC
Dimension:Â 120 x 150 x 63 mm
Weight:Â 350 g
Output: Solid State Relay 24 VDC (16V/AC)/ 2A – Ohmic load. (External protection circuit for switching loads required)
Internal RFID-Reader:Â Legic
